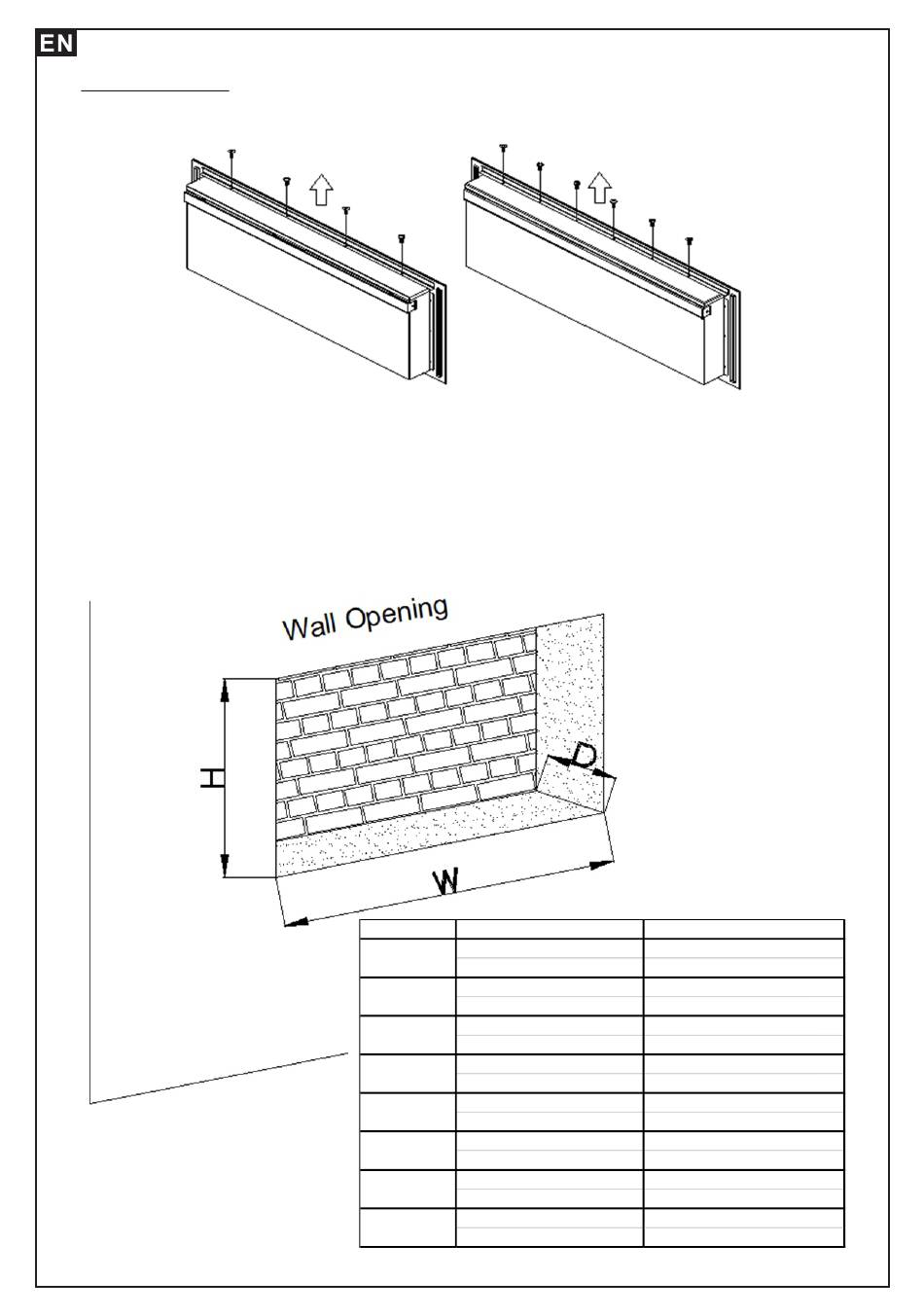

INSTALLATION
Caution: Before installation, remove the fixing screws on the top plate.
(W914-36F/ W914-40F/W914-50F)
NOTE: This heater offers two installation options, which can be selected based on
your preference.
Installation 1: Built-in wall
Clearance: Maintain a minimum spacing of 0.5 inches between the rear of the unit
and the wall.
Wall opening dimensions: Before installation, confirm the wall opening
dimensions.
(W914-60F)
Model Unit Overall Dimensions
18" x 6.2" x 24"
W914-18F
45.7 x 15.75 x 61 cm
26" x 6.2" x17.7"
W914-26F
66 x 15.75 x 45 cm
30" x 6.2" x17.7"
W914-30F
76 x 15.75 x 45 cm
36" x 6.2" x17.7"
W914-36F
91.5 x 15.75 x 45 cm
40" x 6.2" x17.7"
W914-40F
101.6 x 15.75 x 45 cm
48" x 6.2" x17.7"
W914-48F
122 x 15.75 x 45 cm
50" x 6.2" x17.7"
W914-50F
127 x 15.75 x 45 cm
60" x 6.2" x17.7"
W914-60F
152.4 x 15.75 x 45 cm
3
Cutout Dimensions(W*D*H)
15.75"x 6.313"x 23.625"
40 x 16 x 60 cm
22.75"x 6.313"x 17.125"
58 x 40 x 43.5 cm
26.75"x 6.313"x 17.125"
68 x 40 x 43.5 cm
32.75"x 6.313"x 17.125"
83.5 x 40 x 43.5 cm
36.75"x 6.313"x 17.125"
93.5 x 40 x 43.5 cm
44.75"x 6.313"x 17.125"
113.6 x 40 x 43.5 cm
46.75"x 6.313"x 17.125"
119 x 40 x 43.5 cm
56.75"x 6.313"x 17.125"
144 x 40 x 43.5 cm
