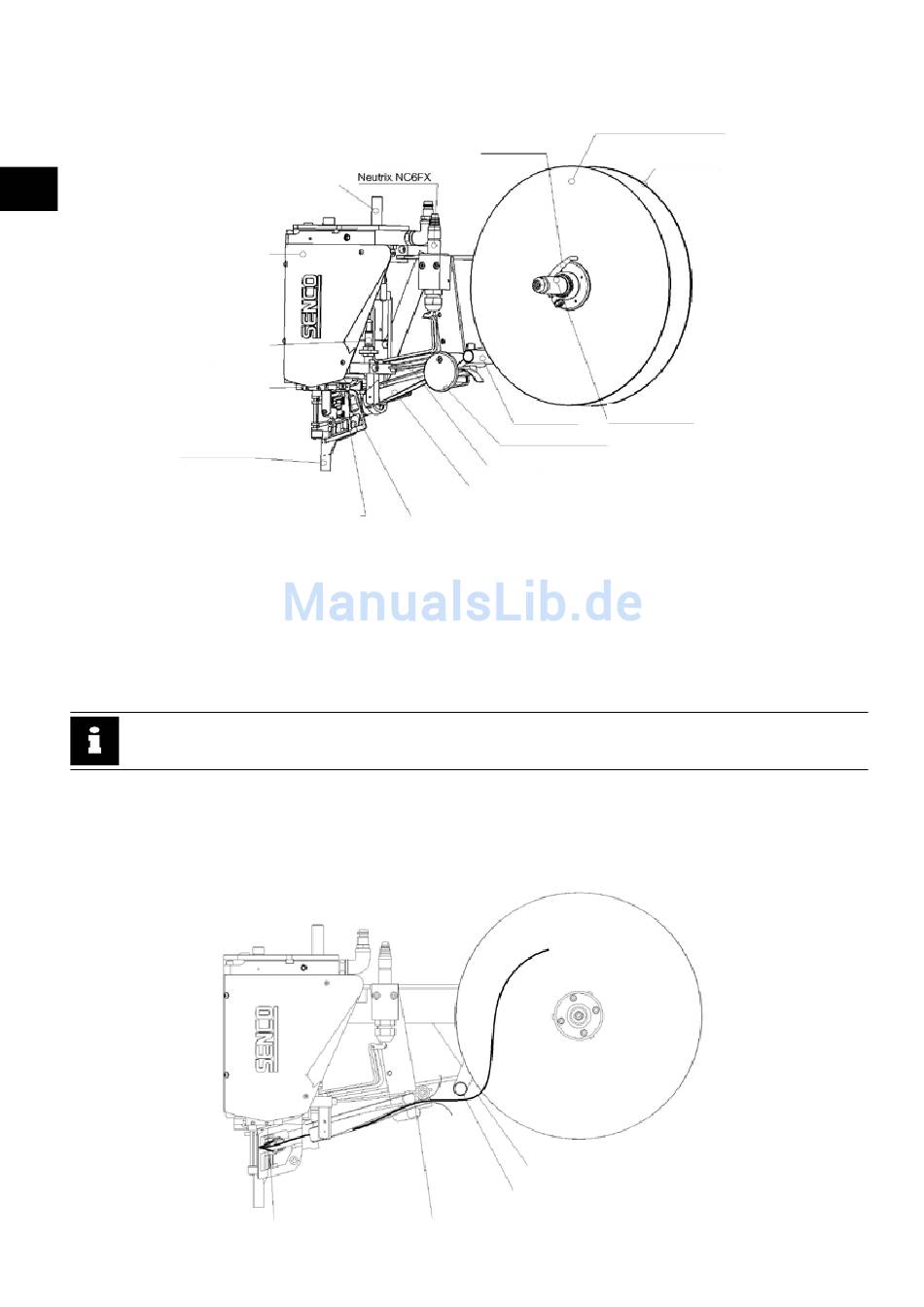

5 Designations
GB
Magazine sensor
Feed control sensor
Guide body
OPERATING
6 Operating
6.1 Filling the magazine
Info
Only use the fasteners stated in the technical data Chapter 1.3
To fill the magazine please follow the below steps:
1. Press the lock and open the guide body door.
2. Lift the spring bar slightly and remove the nail tip guide.
3. Loosen the clamping lever on the cover plate and remove the cover plate.
4. Take a High-Load-Coil and put it with the nail head on the mandrel. Slide the High load coil onto the fixed cover plate
and turn it until it clicks.
8
8
Electrical connection
Connection bolt
Nail head
Door
Nail pusher
Clamping lever
Brake lever
Nail guide tip
Spring bar
Nail shaft guide
Shutter
Nail belt guidance
Brake lever
Nail shaft guide
Cover plate removeable
Cover plate fixed
Holding mandrel
