sioning instructions. Pass these instructions and any main-
tenance instructions to the user.

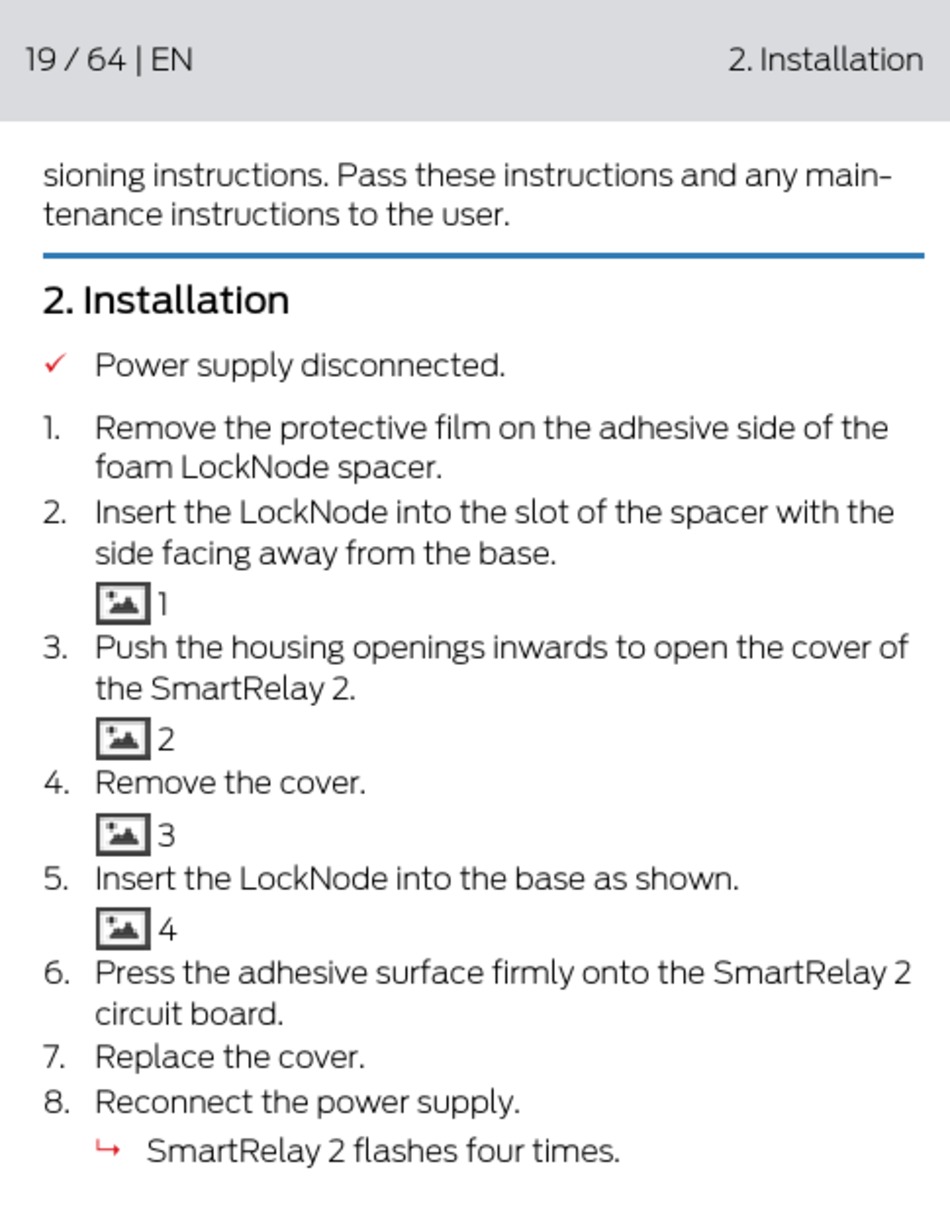

2. Installation
ü Power supply disconnected.
1. Remove the protective film on the adhesive side of the
foam LockNode spacer.
2. Insert the LockNode into the slot of the spacer with the
side facing away from the base.
1
3. Push the housing openings inwards to open the cover of
the SmartRelay 2.
2
4. Remove the cover.
3
5. Insert the LockNode into the base as shown.
4
6. Press the adhesive surface firmly onto the SmartRelay 2
circuit board.
7. Replace the cover.
8. Reconnect the power supply.
SmartRelay 2 flashes four times.
