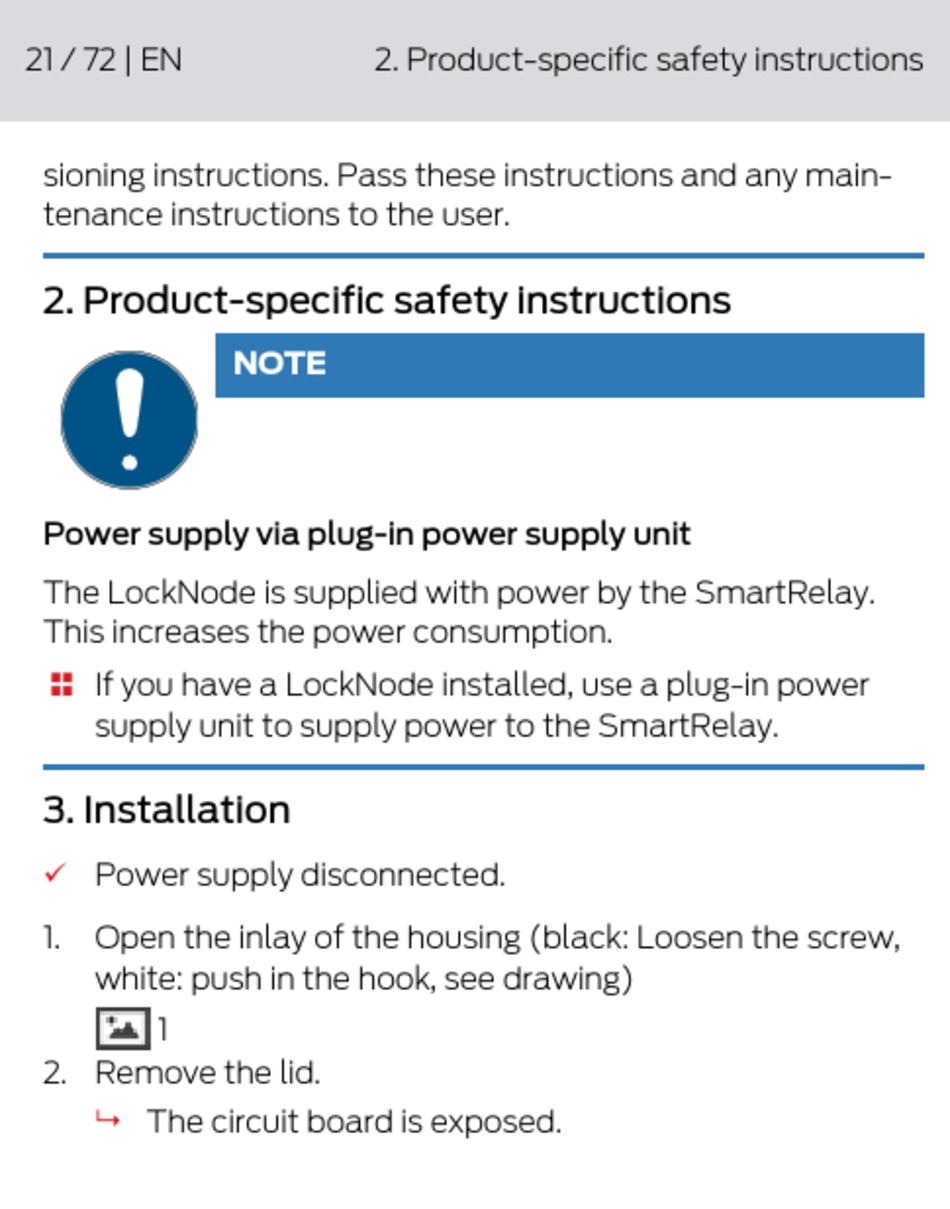

21 / 72 | EN
sioning instructions. Pass these instructions and any main-
tenance instructions to the user.
2. Product-specific safety instructions
Power supply via plug-in power supply unit
The LockNode is supplied with power by the SmartRelay.
This increases the power consumption.
If you have a LockNode installed, use a plug-in power

supply unit to supply power to the SmartRelay.
3. Installation
Power supply disconnected.
ü
1. Open the inlay of the housing (black: Loosen the screw,
white: push in the hook, see drawing)
1
2. Remove the lid.
The circuit board is exposed.
9
2. Product-specific safety instructions
NOTE
