6.5
Cleaning/replacing jaws, notchers and object guard
Required parts
Outer notchers (8) (13)*
Centre notcher (11)*
Jaws (9) (12)*
Guiding jaw (7)*
Object protection (3)*
Bolt (1)
Jaw pin (10)
Countersunk screw Torx (6) 1912.203.066
Cylinder screw M3x18 (2)
* Wear part
Dismantling
► Remove battery from tool.
► Remove front covers (Section 6.3).
► Pull out two bolts (1), remove outer notcher (13), jaws (12), centre notcher (11) together with
object protection (3).
► Pull out two jaw pins (10) and remove guiding jaw (7) together with jaw (9).
► Loosen two countersunk screws (Torx) (6) and cylinder screw (2) with bushing and nut. Remove
the mount (5) together with the four compression springs (4).
► Clean the two object protections (3), check for wear and replace if necessary.
► Clean centre notcher (11), jaws (9) (12), guiding jaw (7) and outer notchers (8) (13), check for
wear and replace if necessary. The outer notchers (8) (13) can also be turned 180° to use the
second cutting edge.
Fitting
► Lubricate the cleaned or replaced parts at the joints and sliding points with universal grease (e.g.
Klüber GBU Y 131, Microlube) or spray with high-pressure resistant adhesive lubricating oil spray
(e.g. Würth HHS 2000).
► Fitting is performed in reverse order.
► After reassembly, check that the object protection (3) between the jaws are in place and function-
ing.
1
V 11.21_EN
Order no.19 mm (
1821.200.024
1821.200.025
1821.200.031
1821.200.032
1831.021.098
1821.030.051
1821.030.052
1911.003.181
6
5
4
3
2
12
13
SIGNODE BPT-H32
/
") Order no. 25 mm (1") Order no. 32 mm (1
3
4
1821.200.026
1821.200.028
1821.200.029
1821.200.030
1831.021.101
ʺ
ʺ
ʺ
ʺ
7
10
11

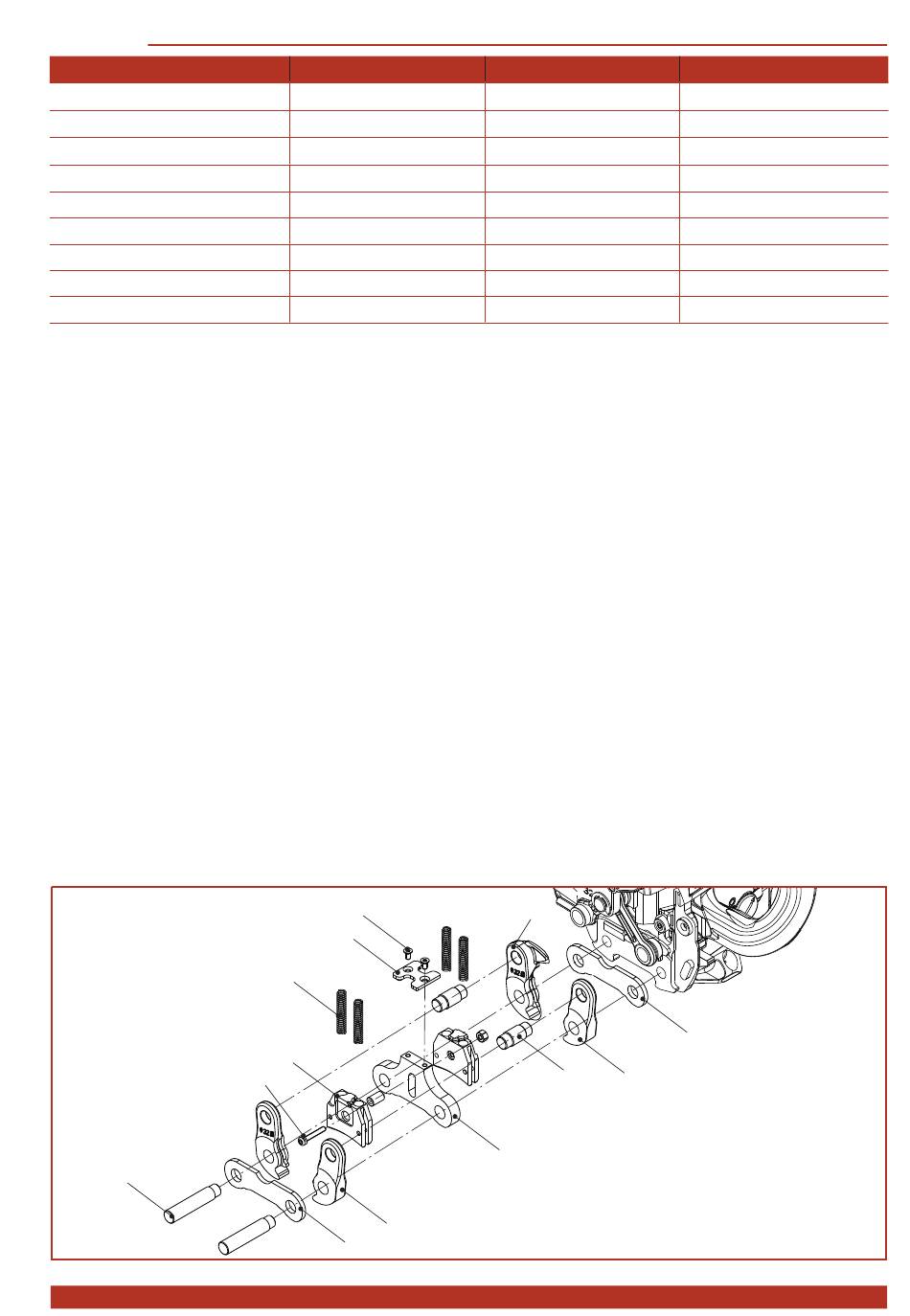

Illustration: strap width 32 mm
(19 and 25 mm slightly different)
1821.200.022
1821.200.023
1821.200.021
1821.200.020
1831.021.080
ʺ
ʺ
ʺ
ʺ
8
9
/
")
1
4
45 of 50
