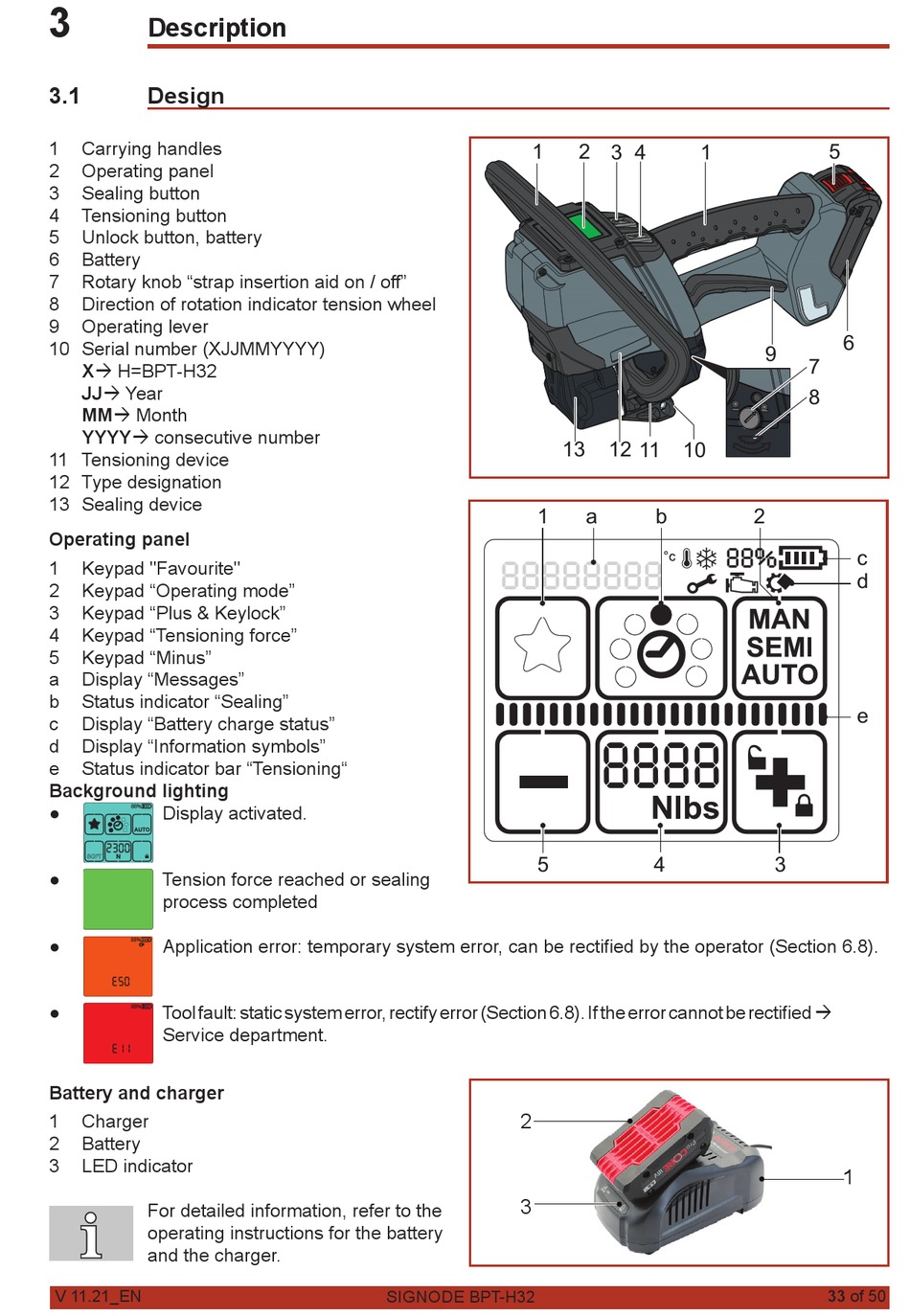

Description
3.1
Design
1
Carrying handles
2
Operating panel
3
Sealing button
4
Tensioning button
5
Unlock button, battery
6
Battery
7 Rotary knob "strap insertion aid on / off"
8
Direction of rotation indicator tension wheel
9
Operating lever
10 Serial number (XJJMMYYYY)
X H=BPT-H32
JJ Year
MM Month
YYYY consecutive number
11 Tensioning device
12 Type designation
13 Sealing device
Operating panel
1
Keypad "Favourite"
2
Keypad "Operating mode"
3
Keypad "Plus & Keylock"
4
Keypad "Tensioning force"
5
Keypad "Minus"
a
Display "Messages"
b
Status indicator "Sealing"
c
Display "Battery charge status"
d
Display "Information symbols"
e
Status indicator bar "Tensioning"
Background lighting
●
Display activated.
●
Tension force reached or sealing
process completed
●
Application error: temporary system error, can be rectified by the operator (Section 6.8).
●
Tool fault: static system error, rectify error (Section 6.8). If the error cannot be rectified
Service department.
Battery and charger
1
Charger
2
Battery
3
LED indicator
For detailed information, refer to the
operating instructions for the battery
and the charger.
