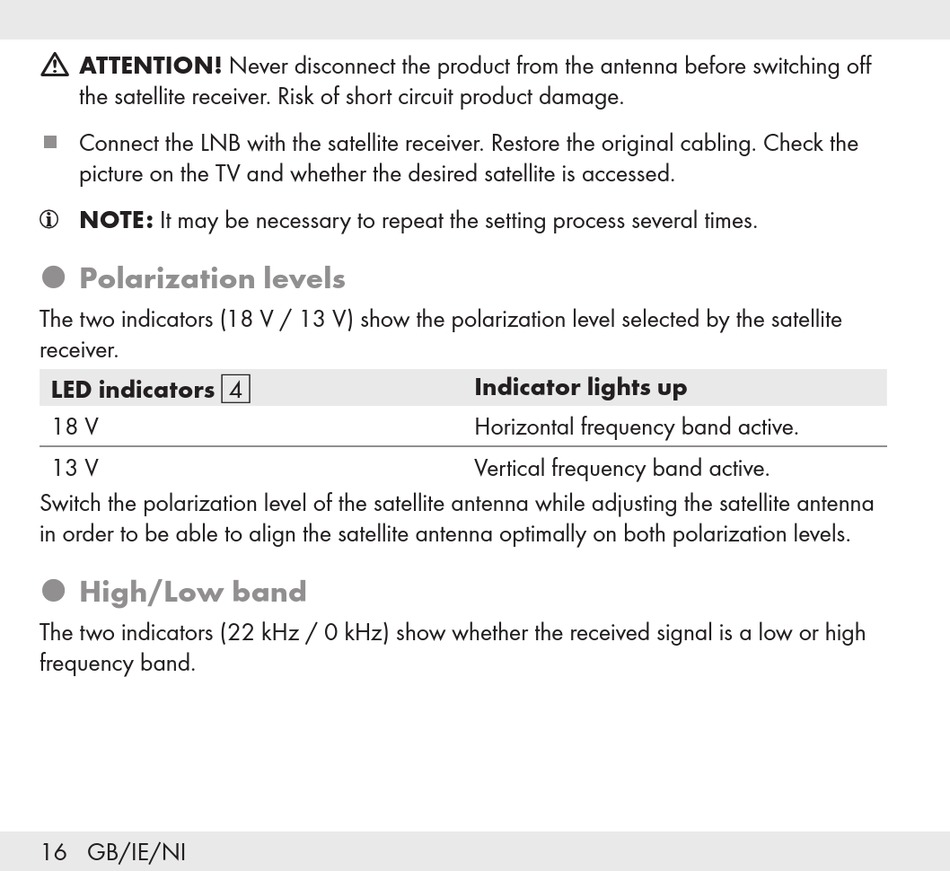

ATTENTION! Never disconnect the product from the antenna before switching off
m
the satellite receiver . Risk of short circuit product damage .
Connect the LNB with the satellite receiver . Restore the original cabling . Check the
picture on the TV and whether the desired satellite is accessed .
NOTE: It may be necessary to repeat the setting process several times .
˜ Polarization levels
The two indicators (18 V / 13 V) show the polarization level selected by the satellite
receiver .
LED indicators
18 V
13 V
Switch the polarization level of the satellite antenna while adjusting the satellite antenna
in order to be able to align the satellite antenna optimally on both polarization levels .
˜ High/Low band
The two indicators (22 kHz / 0 kHz) show whether the received signal is a low or high
frequency band .
16 GB/IE/NI
4 ] [
Indicator lights up
Horizontal frequency band active .
Vertical frequency band active .
