AWG | Fittings | Adjustable foam nozzles S2 / M2 and S4 / M4
3 .4
Overview
1
1
Stop valve (option)
2
Hand lever (option)
3
Selection lever
4
Pressure gauge 0 – 16 bar
5
Nozzle body

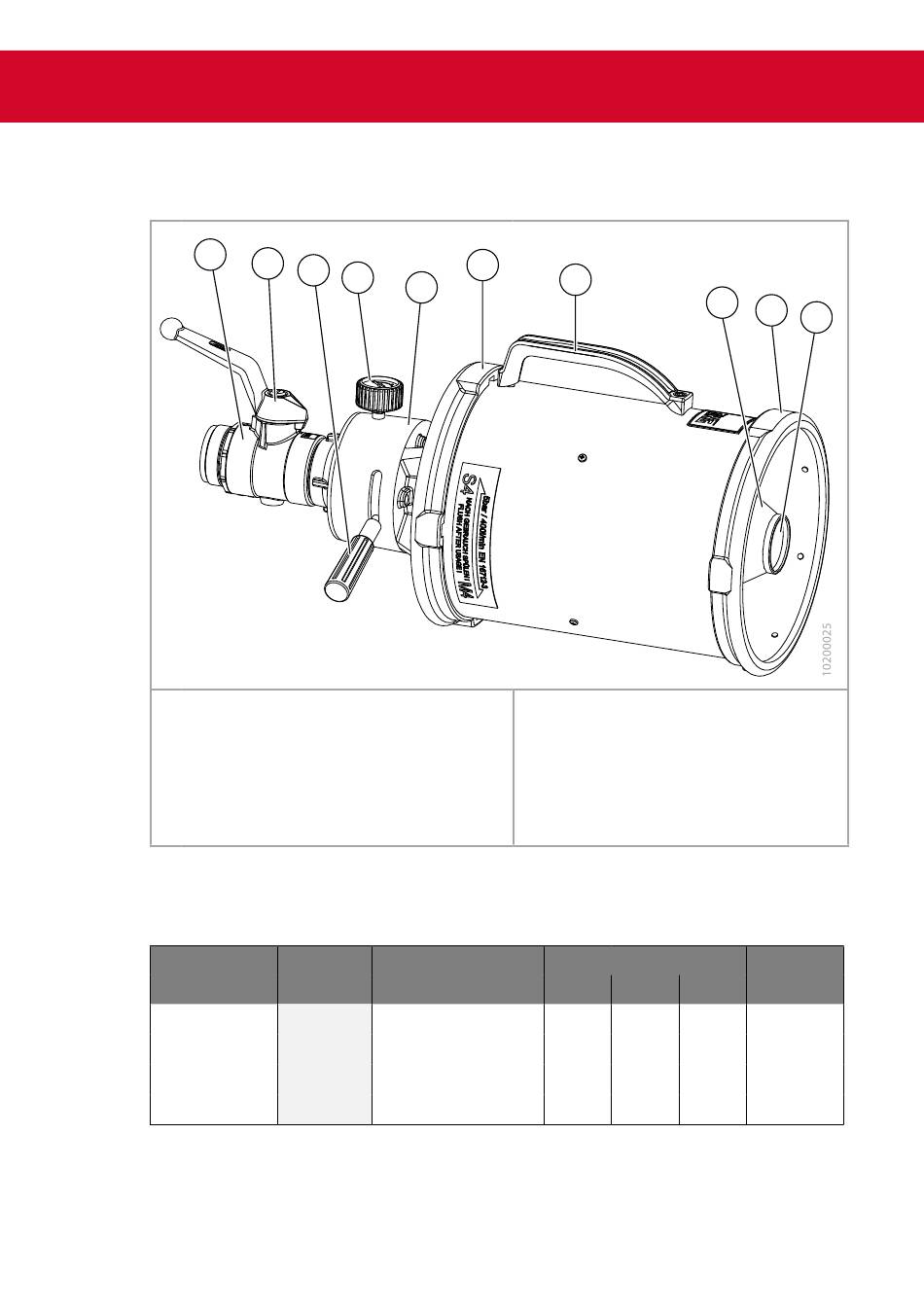

Fig. 1 Overview AWG Medium expansion foam nozzle
Versions
ID No .
604 773 33
100 660 33
604 827 33
100 664 33
This table lists the common Storz adapters.
M1108B10 | Rev. 03-08/24
2
3
4
5
Type
Connection
S2/M2
Storz 52 (C)
S2/M2
BSP G2" (male)
S4/M4
Storz 75 (B)
S4/M4
BSP G2" (male)
6
7
6
Protection ring
7
Handle
8
Conversion screen
9
Low expansion foam nozzle
Dimensions [mm]
L
W
610
250
610
250
665
305
665
305
DESCRipTiON
8
6
9
Weight
H
[kg]
205
5.3
205
5.1
270
6.9
270
7.1
28
