1. SAFETY INSTRUCTIONS

• Hazardous voltages are present on the equipment and
the power lines which could cause death.
• Use the equipment exclusively for applications
compliant with its intended use.
• Current sockets not correctly installed can cause
electric shock or fires when charging an electric vehicle
battery.
• Use the charging equipment IC-CPD only with
adequately grounded electrical mains.
• The charging station must only be connected to a power
supply system with neutral conductor connected to the
earth.
• The current socket used for charging must be
connected to a protected circuit in compliance with
local standards and legislation.
• The socket must be protected by an adequate type A
differential switch.
• You are advised to have qualified staff check the
electrical system.
• Comply with the safety instructions outlined in the
vehicle manual.
• Do not use the charging equipment IC-CPD if damaged
and/or dirty. Check the cable and the connector are not
damaged and dirty before using them.
• Do not use a worn or damaged current socket. The
power plug must be firmly inserted in a current socket
in compliance with all local decrees and legislation.
• Do not remove the cover and do not open the casing.
• Power the IC-CPD charging equipment with suitable
voltages: refer to the specifications outlined in the
appendix.
• Do not remove the plug while the equipment is being
used.
• Do not use extensions, cable reels, multi-sockets,
adaptors (travel), timers, etc.
• Do not open the device, do not alter or repair.
• Keep current sockets, the plug connection and the
charging equipment IC-CPD away from humidity,
water, snow, frost and other liquids. Do not submerge
in water.
• The equipment must be supervised when used with
children present.
• Damage caused to the product can make it unsafe. The
product must be electrically insulated and must NOT
be used until the necessary corrective measures are
implemented.
• Clean the charging equipment IC-CPD only if the
control unit is fully disconnected from the electrical
mains and the vehicle. Use a dry cloth for cleaning.
ADDITIONAL PRECAUTIONS

2. INTRODUCTION AND GENERAL DESCRIPTION

2.1 INTENDED USE

The charging equipment IC-CPD (In Cable Control Protection
Device) allows you to charge battery electric vehicles (BEV) or
Plug-in hybrid electric vehicles (PHEV) without any additional
device. This easy-to-use charging system allows you to plug the
vehicle connector directly into the vehicle charging socket and
existing electrical infrastructure. Continuous monitoring of the
charging process guarantees safety of the user and the vehicle.

2.2 TECHNICAL DATA

The main data on use and performance of the charging
equipment for electric vehicles IC-CPD is summarised on the
rating plate and has the following meaning:
Fig. A
1. Type of equipment
2. Name of model.
3. Mains connection: voltage, frequency, current intensity.
4. Different operating current.
5. Protection rating of the casing.
6. Working temperature.
7. Reference standard.
8. Manufacturer's name and address.
9. Minimum operating temperature of the equipment.
10. Protective conductor not switched.
11. The equipment can only work if the ground conductor is
available.
12. Disposal instruction.
- 4 -

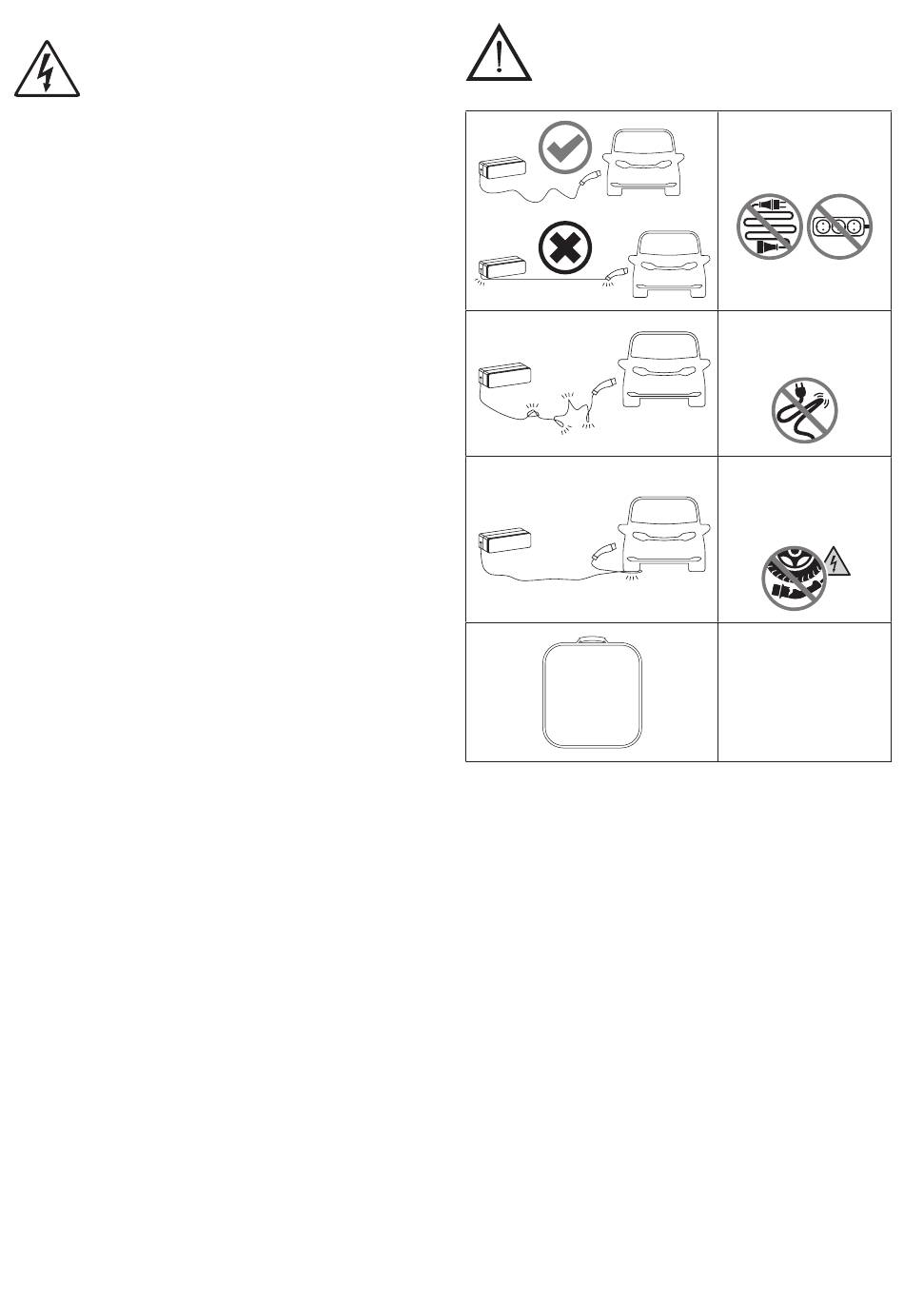

During the charging
procedure, the cable
must not be strained.
The charging cable
must not be bent or
twisted.
Do not drive over the
charging cable or
connector with the
vehicle.
The charging cable
must be wound and
repositioned in a
compact manner.
