Scope of delivery
1. Electrode
2. Diffuser
3. Nozzle
4. Ceramic cap
Assembly
Switch the device off and pull out the mains plug.
1. Unscrew the ceramic cap (4) and remove the old nozzle (3) and, if necessary, the elec-
trode (1).
• The electrode (1) must be replaced when it has a crater in the middle of approx. 1.5
mm deep.
2. If the ceramic cap (4) and the diffuser (2) are also damaged, replace them too.

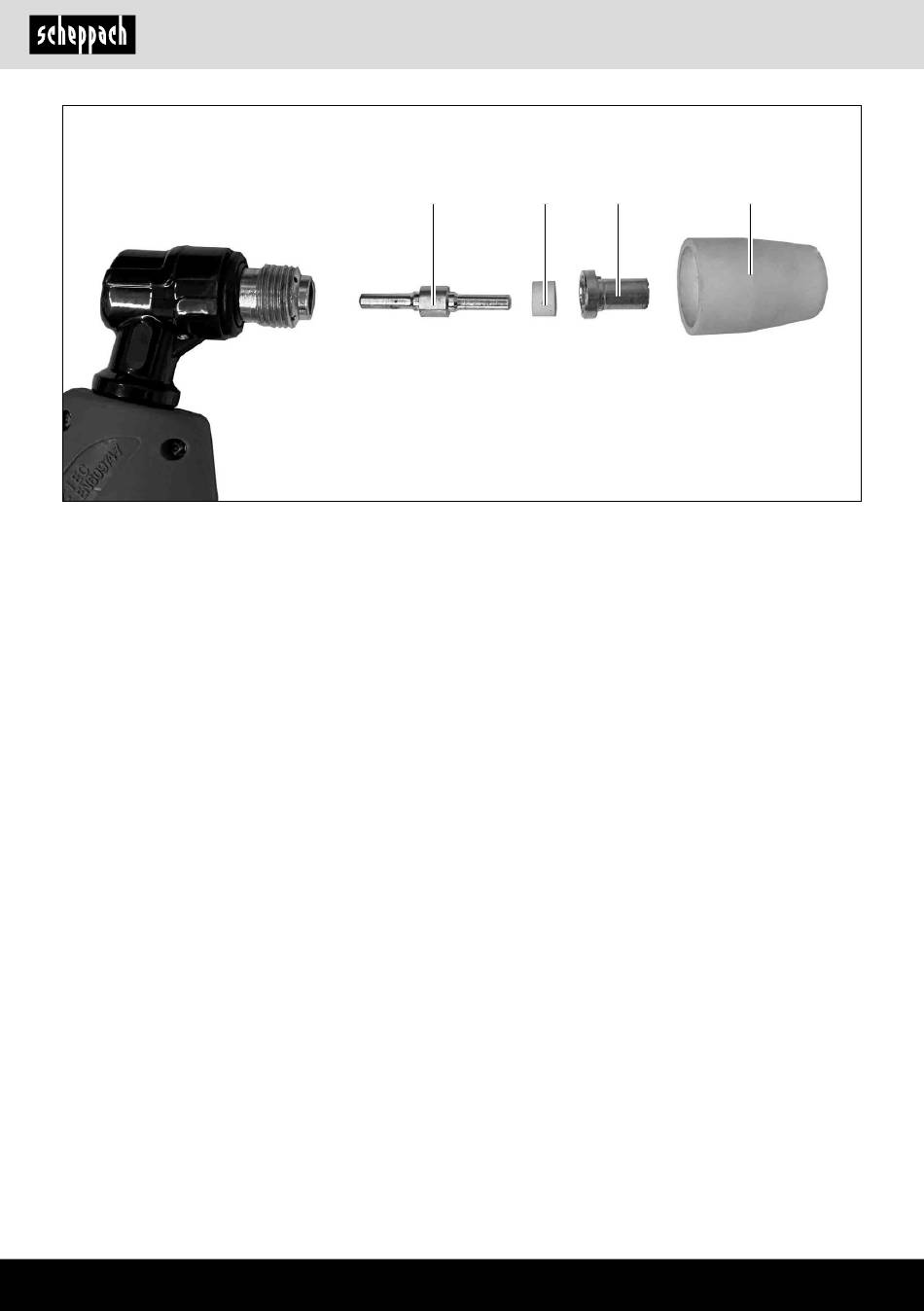

3. Reassemble the burner in the same order as shown in the picture.
