7

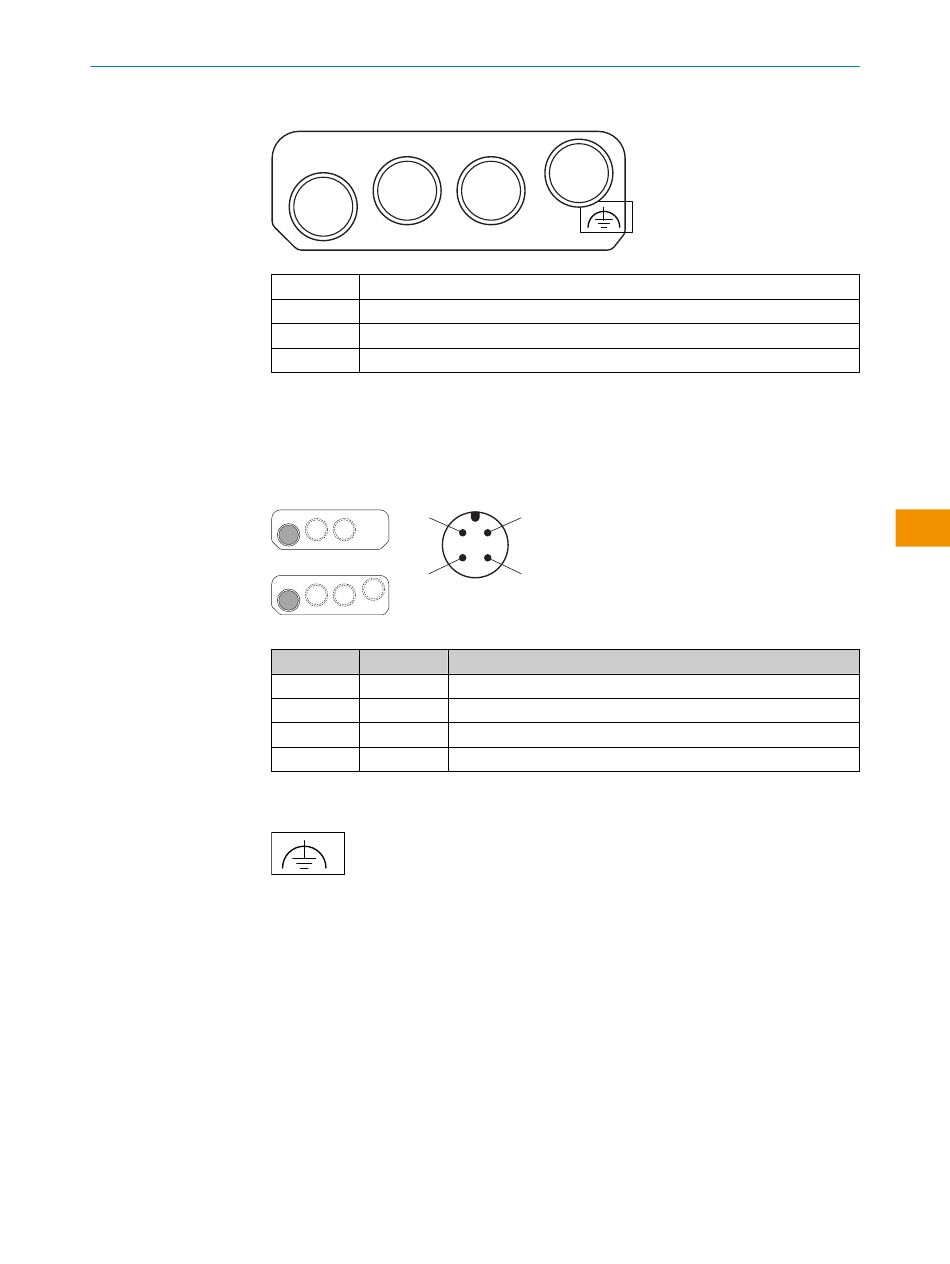

Pin assignment

7.1 Voltage supply (XD1)
7.2 Alternative FE connection
8020210/1NTN/2024-05-07 | SICK
Subject to change without notice
MICSX-BANNEZZZ1 (part number: 2081021)
XF1
XD1
XD1 Voltage supply
XF1 Network for EtherCAT IN
XF2 Network for EtherCAT OUT
XF3 Ethernet (not safety-related)
Male connector, M12, 4-pin, A-coded.
2
3
Pin assignment of the voltage supply
Pin Designation Function
1 24 V DC
2 nc
3 0 V DC
4 FE
Figure 1: Alternative FE connection
Screw connection of the alternative FE connection
• Screw: M5 × 12
• Tightening torque: 3.5 Nm to 5.0 Nm
Suitable cable lugs
• Forked cable lug or ring cable lug
• Width ≤ 10 mm
• Hole diameter for screw: typically 5.2 mm
Older system plugs (older than roughly September 2019) might not have an alternative
FE connection.
M O U N T I N G I N S T R U C T I O N S | microScan3 – EFI-pro, microScan3 – EtherCAT®, microScan3 – PROFINET (M12),
XF2 XF3
1
4
24 V DC supply voltage
Not connected
Supply voltage 0 V DC
Functional earth/shield
