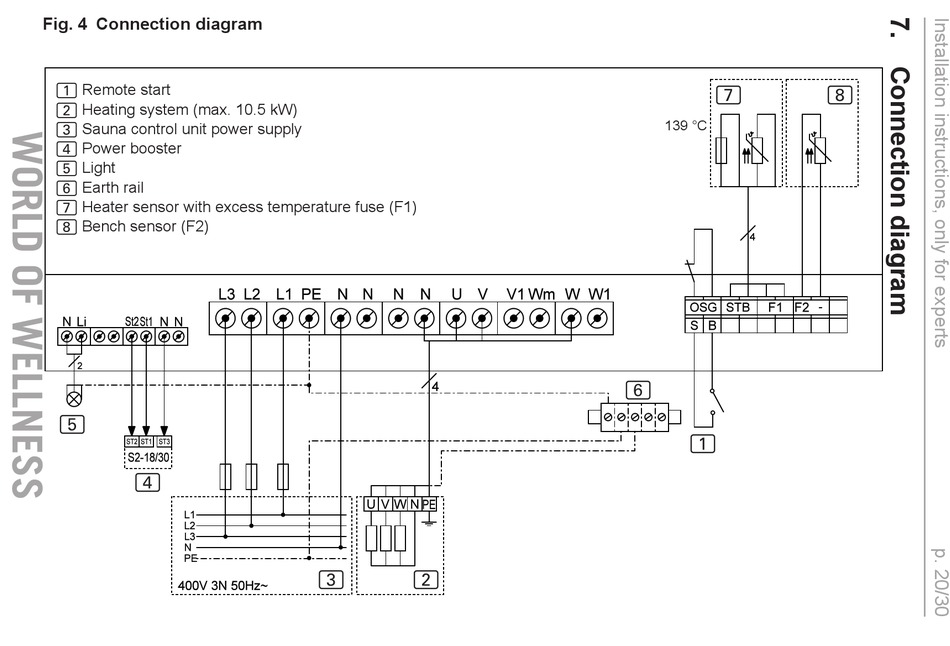

Fig. 4 Connection diagram
1 Remote start
7 8
2 Heating system (max. 10.5 kW)
139 °C
3 Sauna control unit power supply
4 Power booster
5 Light
6 Earth rail
7 Heater sensor with excess temperature fuse (F1)
8 Bench sensor (F2)
