swView 868/915
//
Betriebsanleitung / Feldstärkemessgerät
Operating instructions / Field strength testing tool
English
Destination and use
swView is a mobile device for measuring of electrical field strengths. It
helps installing wireless switchgear that supports the steute Wireless
protocol. The transmission is carried out on 868.3 MHz ot 915 MHz.

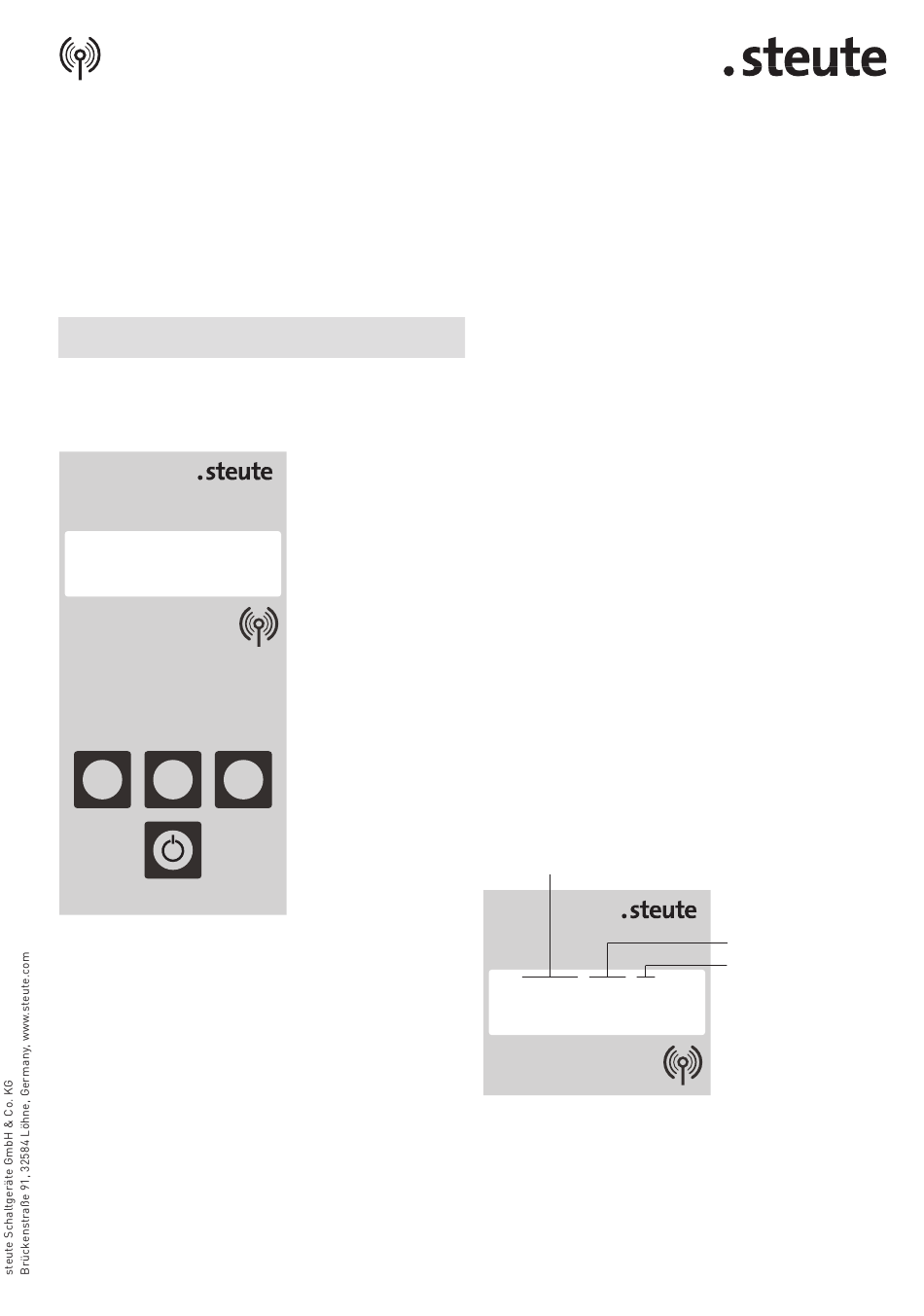

swView
LINK SELECT
General description
Switch-on press on On/Off push-button
Switch-off press on On/Off push-button for approx.
2 s and release. The swView switches
automatically off, if it has not been
taken into operation within 5 min.
Functions of swView Scan mode
Repeat mode
Rescan mode
Radio link
These functions are divided in 2 display menues
Main menue Scan mode
Repeat mode
Sub-menue Radio link
Rescan mMode
Scan mode
Selection of main menu The main menue is displayed after
switch-on of the swView
SET
It can be returned to the sub-menue from the scan, rescan mode and
radio link.
1. Press and release SELECT push-button.
Selection of a function
1. Select the function with the SELECT push-button
2. Confirm with the SET push-button
Selection of the sub-menue
This menue refers to a selected ID No. This means that at least one ID
No. must be scanned in order to select this menue.
1. ISelect the scan mode from the main menue and confirm with the
SET push-button.
2. If no ID No. has been stored, scan a new ID No.
3. Select an ID No. with the SELECT push-button
4. Confirm with the SET push-button.
Return to main menue
1. Press the SELECT push-button for 2 s
2. Lighting points display
3. Release the SELECT push-button
Return to sub-menue
Description of functions
Scan mode
Up to 10 different telegrams are shown in the scan mode. Starting
from the 11th telegram the existing telegrams are overwritten.
ID No.
000092*100%*99
000116*045%*08
0003EF*010%*01
swView
1. ID No.: ID number of received telegram
2. RSSI: Signal strength in percent
3. Number of telegrams: Number of occuring telegrams with
this ID No.
RSSI
Number of telegrams
0-99
