2 INSTALLATION

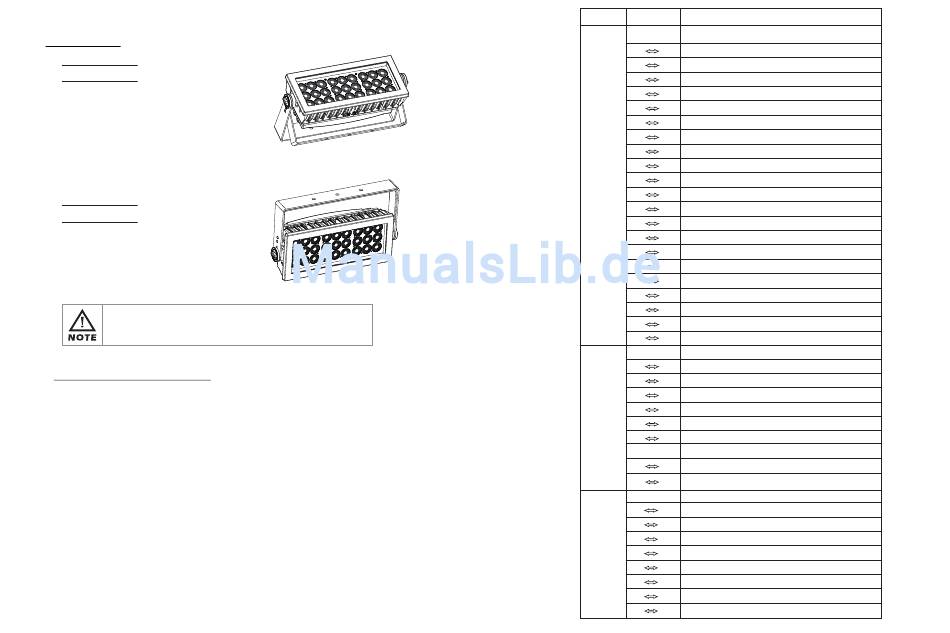

2.1 MOUNTING
HANGING
The fixture can be mounted in a
hanging position using the supporting
bracket. The bracket should be
secured to the mounting truss or
structure using a standard mounting
clamp. Please note that when hanging
the unit a safety cable should also be
used.
UPRIGHT
The fixture can be mounted in an
upright or sitting position using the
supporting brackets.
The LED MODULE can be mounted at any angle and in any
position. It is possible to further adjust the angle of the LED
MODULE using the two adjustment knobs located on the side of
the fixture.
2.2

POWER CONNECTIONS

@ 220V: 6 units may be connected in series
@110V: 3 units may be connected in series
Note:
If the signal cable is over 60m between the DMX512 controller and fixture
or beween two fixtures, then a DMX signal amplifier is needed as well.
E 04
CHANNEL VALUE FUNCTION
COLOR MACRO & WHITE
10
0 NO FUNCTION
11 30 RED 100% / GREEN UP / BLUE 0%
31 50 RED DOWN / GREEN 100% / BLUE 0%
51 70 RED 0% / GREEN 100% / BLUE UP
71 90 RED 0% / GREEN DOWN / BLUE 100%
91 110 RED UP / GREEN 0% / BLUE 100%
RED 100% /GREEN 0%/BLUE DOWN
111 130
131 150 RED 100%/GREEN UP/BLUE UP
151 170 RED DOWN/GREEN DOWN/BLUE 100%
ALL LED AT FULL OUTPUT
171 200
201 205 WHITE1£3200K
27
WHITE2£3400K
206 210
WHITE3£4200K
211 215
216 220 WHITE4£4900K
WHITE5£5600K
221 225
WHITE6£5900K
226 230
WHITE7£6500K
231 235
WHITE8£7200K
236 240
WHITE9£8000K
241 245
WHITE10£8500K
246 250
251 255 WHITE11£10000K
SPECIAL STROBE
No strobe
0 9
Strobe (slow to fast)
10 99
No strobe
100 109
Lightning strobe (slow to fast)
110 179
28
No strobe
180 189
Random strobe (slow to fast)
190 255
STROBE 2
0 9
NO FUNCTION
10 255
١~Hz٢٠
AUTO
NO FUNCTION
0 40
AUTO01
41 50
AUTO02
51 60
AUTO03
61 70
29
AUTO04
71 80
AUTO05
81 90
AUTO06
91 100
AUTO07
101 110
D 19
