5 Anhang

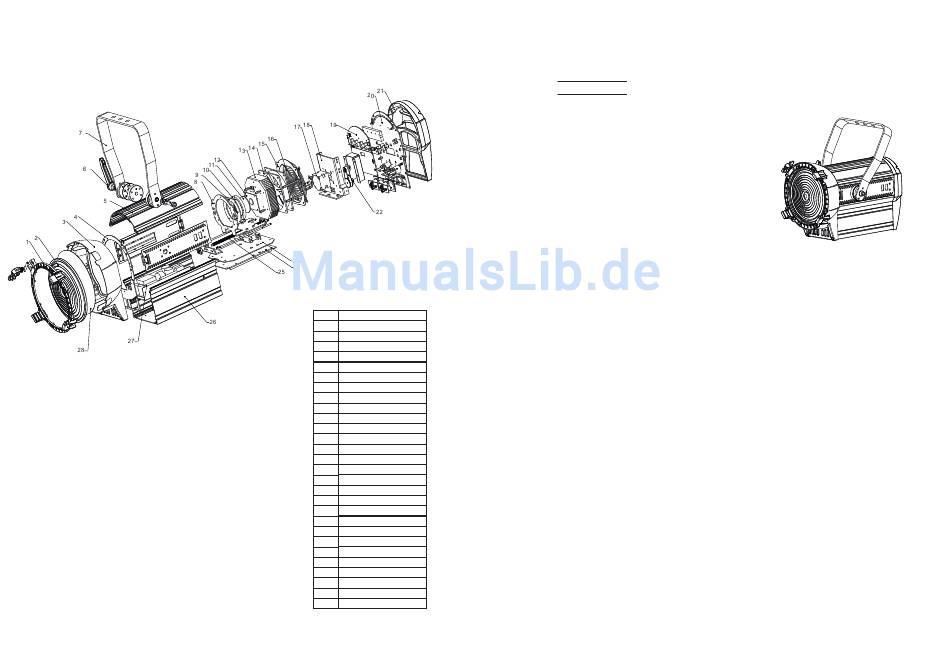

5.1 Explosionszeichnung
NO
ITEM
Front end cap
1
2
Thread mirror
3
Plastic f ront cover
Front plate
4
5 Up pull aluminum
6
M١٠ hand shank
Hanging bracket
7
8 Heat-sink bracket
9 Lens head plate
10
Lens frame
¦٥٢ Collecting mirror
11
12
LED board
13 Heat dissipation pull aluminum
14
Fan
15 Fan frame
Fan grill
16
Stepping motor
17
18
Motor frame
19 Driver board
20 Back plate
21
Plastic back cover
22 Belt
23 Focus bracket
24 Focus bracket strengthen board
25 Screw thread drive shaft
Down pull aluminum
26
27 Power Supply
28 5 degree grinding slice
D 10

2 INSTALLATION

2.1 MOUNTING
HANGING
The LED fixture can be mounted in a hanging
position using the supporting bracket. The bracket
should be secured to the mounting truss or structure
using a standard mounting clamp. Please note that
when hanging the unit a safety cable should also be
used.
2.2

POWER CONNECTIONS

¡ 220~240V: 10 units may be connected in series
¡ 110~120V: 5 units may be connected in series
