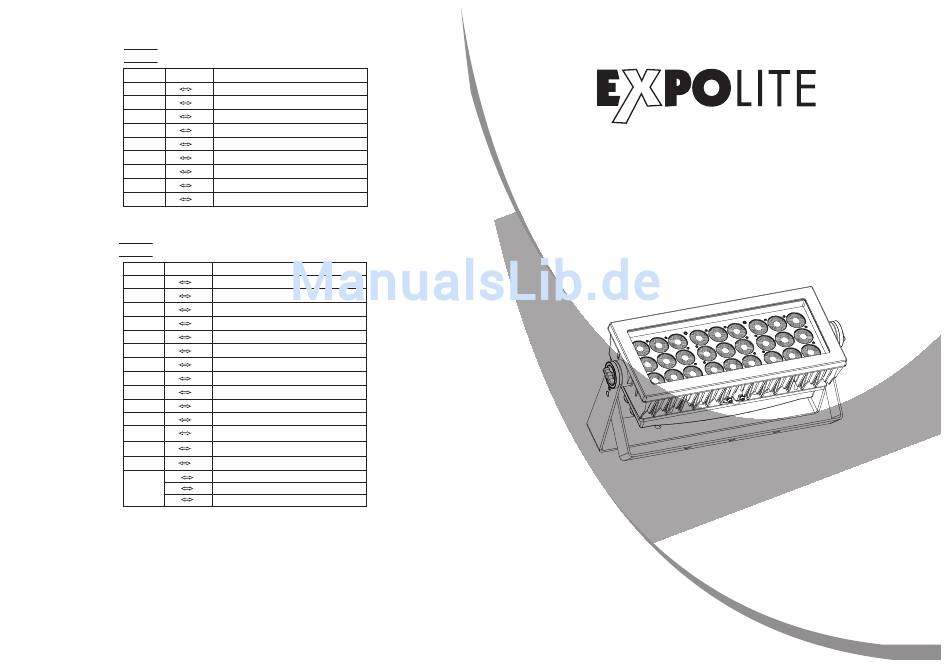

Expolite TourLED Cyc Power zoom Bedienungsanleitung Seite 22

PIX1
CHANNEL VALUE FUNCTION
1 PIXEL 1 - RED
0 255
2
PIXEL 1 - GREEN
0 255
3 PIXEL 1 - BLUE
0 255
4 PIXEL 2 - RED
0 255
5 PIXEL 2 - GREEN
0 255
6
PIXEL 2 - BLUE
0 255
7 PIXEL 3 - RED
0 255
8 PIXEL 3 - GREEN
0 255
9 PIXEL 3 - BLUE
0 255
PIX2
CHANNEL VALUE FUNCTION
1 PIXEL 1 - RED
0 255
PIXEL 1 - GREEN
2
0 255
3 PIXEL 1 - BLUE
0 255
PIXEL 1 - WHITE/AMBR
4
0 255
PIXEL 2 - RED
5
0 255
PIXEL 2 - GREEN
6
0 255
PIXEL 2 - BLUE
7
0 255
PIXEL 2 - WHITE/AMBR
8
0 255
PIXEL 3 - RED
9
0 255
PIXEL 3 - GREEN
10
0 255
PIXEL 3 - BLUE
11
0 255
PIXEL 3 - WHITE/AMBR
12
0 255
13 STROBE2
0 255
ZOOM
14
0 255
000 200 NO FUNCTION
15 201 220 ZOOM RESET
221 255
NO FUNCTION
