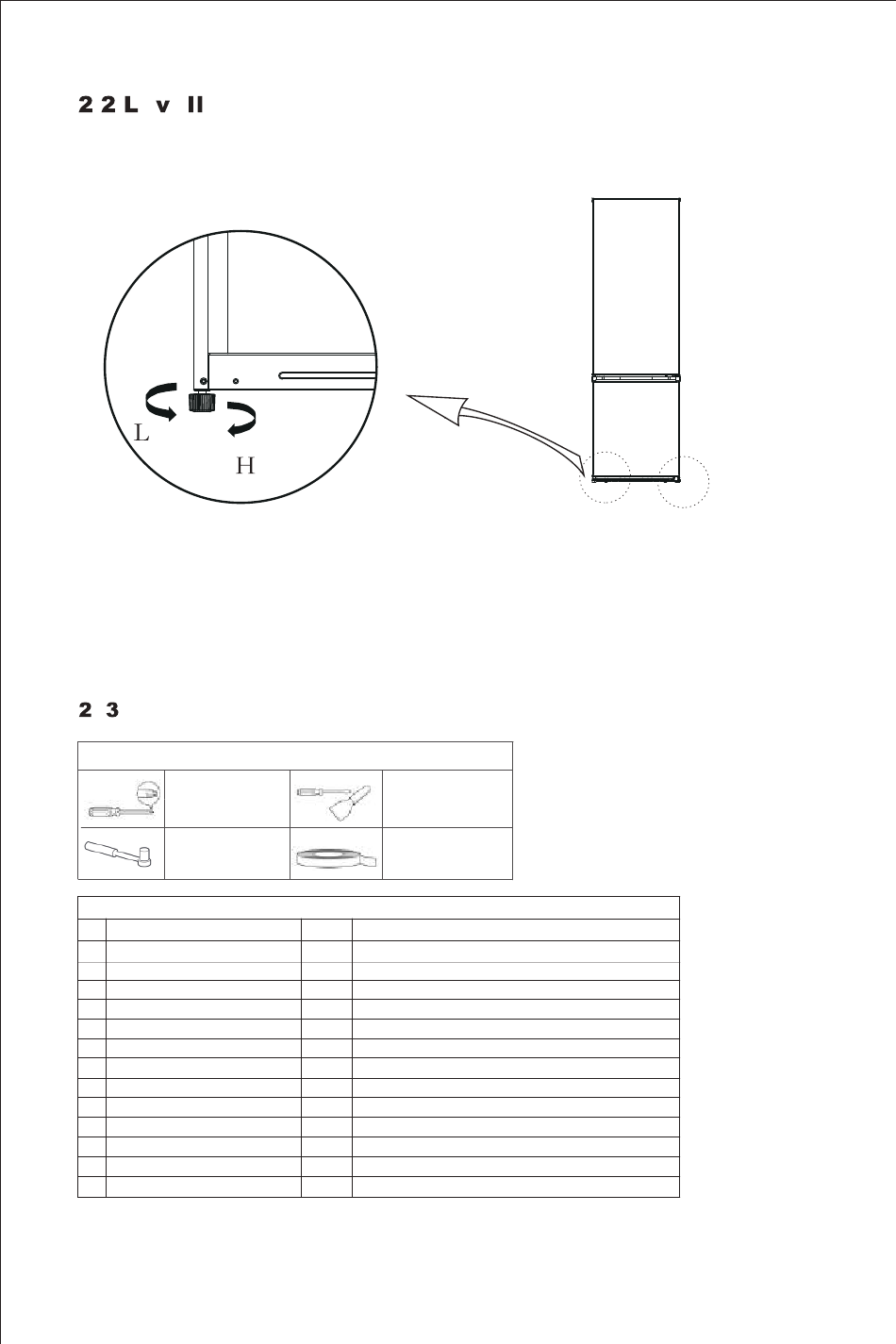

Schematic diagram of the leveling feet
（The picture above is only for reference. The actual configuration will depend on
the physical product or statement by the distributor）
Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.
Door Right-Left Change
.
List of tools to be provided by the user
Cross screwdriver
5/16
"
socket and ratchet
SN
parts
Right upper hinge
1
2
Upper hinge screw
Middle hinge screw
3
Middle hinge
4
5
Hole plug
6
Adjustable foot
7
Lower hinge screw
8
Lower hinge assembly
Lower end cover screw of freezing door
9
10
Lower end cover limiting block of freezing door
Lower end cover screw of refrigerator door
11
Refrigerator door right stopper
12
13
Refrigerator door left stopper
Putty knife
thin-blade screwdriver
Masking tape
Parts to be used for door reverse
Quantity
Pre-installed on the refrigerator, still used when door is reversed
1
Pre-installed on the refrigerator and to be used when changing the door
3
Pre-installed on the refrigerator and to be used when changing the door
2
Pre-installed on the refrigerator and to be used when changing the door
1
Pre-installed on the refrigerator and to be used when changing the door
2
Pre-installed on the refrigerator and to be used when changing the door
1
Pre-installed on the refrigerator and to be used when changing the door
3
Pre-installed on the refrigerator and to be used when changing the door
1
Pre-installed on the refrigerator and to be used when changing the door
1
1
Pre-installed on the refrigerator and to be used when changing the door
1
Pre-installed on the refrigerator and to be used when changing the door
Pre-installed on the refrigerator and to be used when changing the door
1
In the attached plastic bag, take them out for use when door is reversed
1
Notes
EN-7
