Start-up
Danfoss RAV

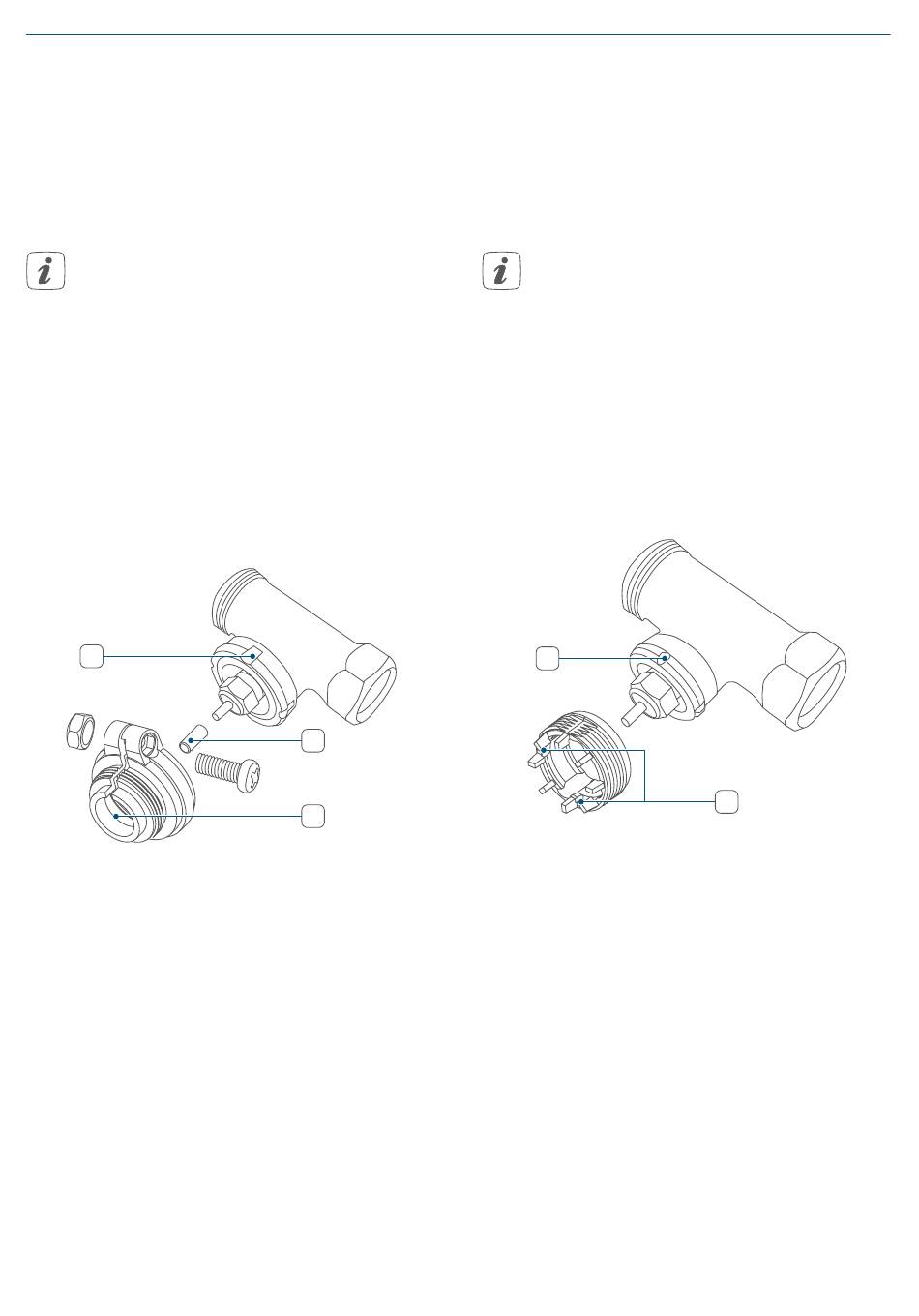

The Danfoss valve bodies have elon-
gated notches (1) around their cir-
cumference, which also ensure that
the adapter is properly seated when it
snaps on.
During installation, please ensure
that the pins inside the adapter (2)
are lined up with the notches (1)
on the valve. Ensure that a suita-
ble adapter for the valve is prop-
erly clipped on.
The lifter extension (3) must be fitted
to the valve pin of RAV valves prior to
installation.
1
Figure 7
3
2
RAV
Danfoss RAVL
The Danfoss valve bodies have elon-
gated notches (1) around their cir-
cumference, which also ensure that
the adapter is properly seated when it
snaps on.
During installation, please ensure
that the pins inside the adapter (2)
are lined up with the notches (1)
on the valve. Ensure that a suita-
ble adapter for the valve is prop-
erly clipped on.
The adapter RAVL does not have to be
screwed.
1
Figure 8
2
RAVL
