Device Description
3.2

Draft shield

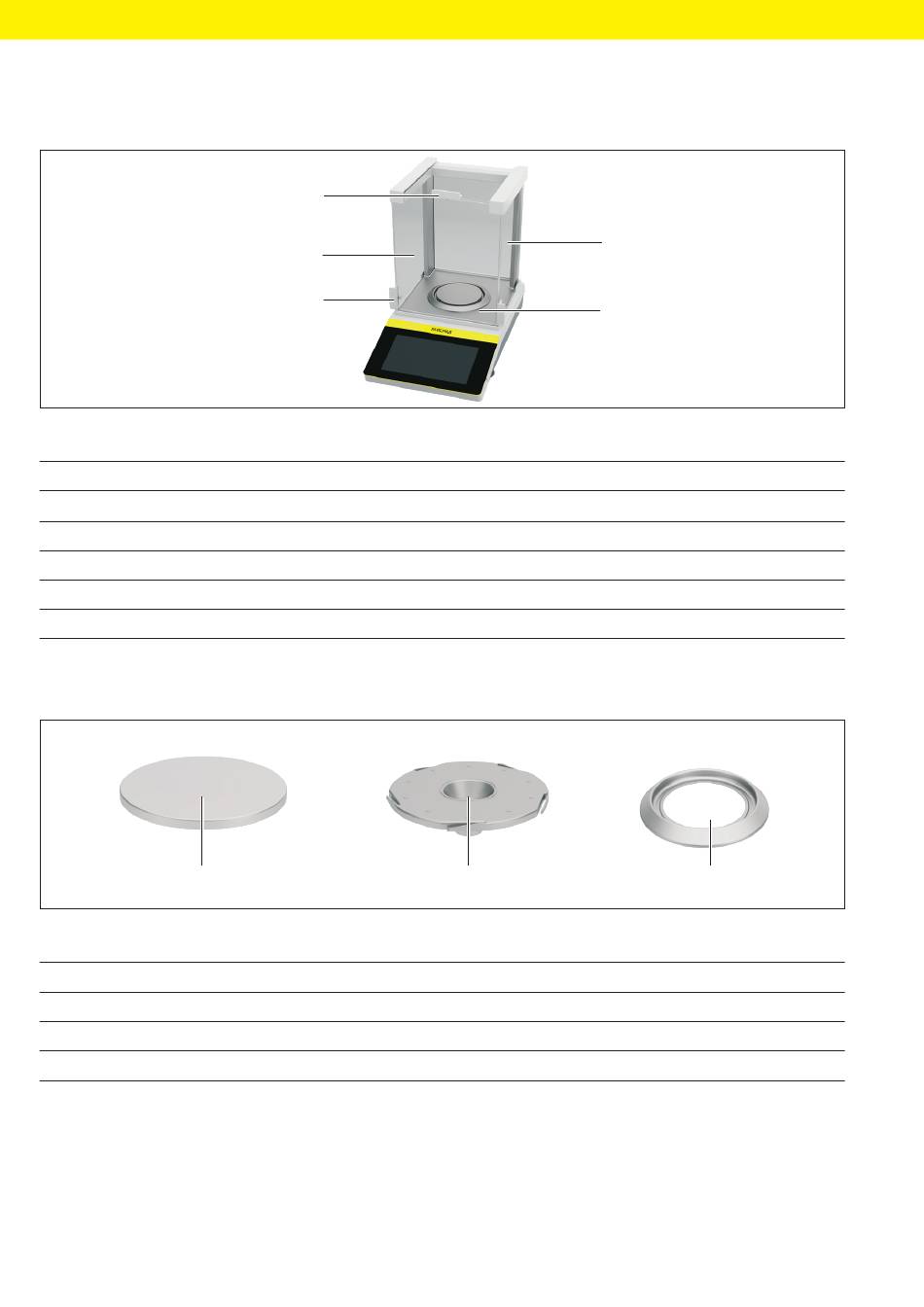

Fig. 2: Quintix Pro, analytical and precision balances (example)
®
Pos . Name
1 Right side panel
2 Base plate
3 Door handle
4 Left side panel
5 Upper draft shield panel
3.2.1 Weighing Pan and Associated Components
1
Fig. 3: Weighing pan and associated components (example)
Pos . Name
1 Weighing pan
2 Pan support
3 Shield disk
10 Operating Instructions Quintix
5
4
3
Description
For manually opening the side panels.
For manually opening the upper panel.
2
Description
For inserting a weighing pan.
For inserting a 90-mm weighing pan.
Pro
®
1
2
3
