PREPARATION FOR INSTALLATION

If you wish to install a large quantity, we recommend that you
carry out the initialisation prior to installation. If you wish to pro-
gram with the Master Card, Programming Card or software, you
can also set up programming and locking media before you in-
stall the Pro cylinder. Follow the steps below:

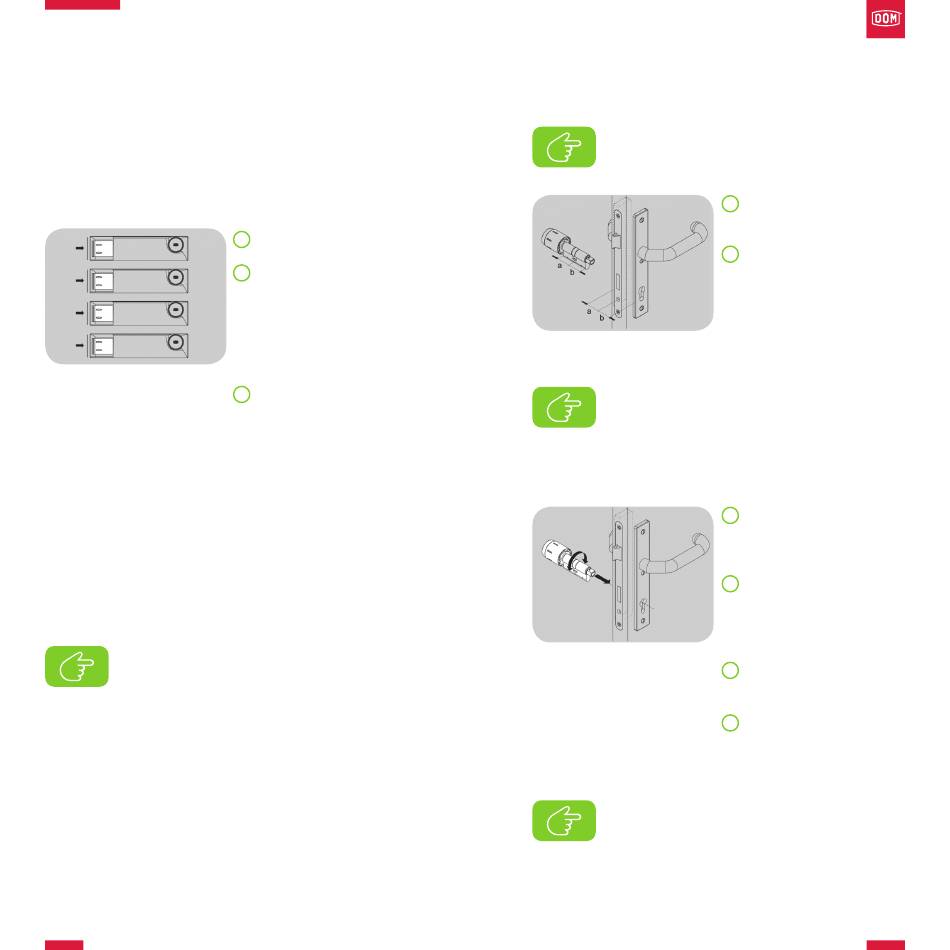

Fig. 2: Collective initialisation
INSTALLATION IN CORE PULLING
PROTECTION FITTINGS
Please note: If you wish to install the Pro cylinder in
core pulling protection fittings or a safety fitting or
rosette, prepare the fittings in such a way that the
coupling shaft of the Pro cylinder fits through the
opening of the fittings. Due to the variety of fittings
available on the market, the individual fittings are
not illustrated here.
66
Arrange the open packages.
1
Hold the Master Card or
2
Programming Card in front
of the package and conveni-
ently carry out the program-
ming as described in detail
starting on page 83.
In the case of the Pro cylinder
3
readable on both sides, both
electronic units must be in-
stalled in advance for this
programming technology to
be used. Please also note the
information on page 83.
PRO CYLINDER READABLE
ON ONE SIDE
Please note: Always install and program the Pro
cylinder with the door open so that you do not lock
yourself out.
Fig. 3: Measure the thickness
Please note: Ideally, the door with fitting should
be a little thinner than the cylinder body of the Pro
cylinder, so that the knobs do not scrape on the fit-
ting and move freely. The cylinder must not project
from the fitting more than 3 mm on security-rele-
vant doors.
Fig. 4: Insert the Pro cylinder
Please note: It is preferable to install the Pro cylinder
readable on one side from the outside. If it is neces-
sary to install from the inside, disassemble the knob
sleeve and electronics in the reverse order described
in cylinder installation, both sides (Fig. 17 - Fig. 23).
Measure the thickness of
1
the door with fitting.
Ensure that the basic length
2
of the Pro cylinder is adap-
ted to the measured thick-
ness: Note the division into
outside (a) and inside (b).
Remove the old locking
3
cylinder if necessary (not il-
lustrated).
Carefully remove Pro cylin-
4
der with pre-assembled
outside knob from the
packaging.
Align the cam flush with the
5
cylinder body.
Carefully slide Pro cylinder
6
through the fitting from the
outside with the inside for-
wards.
