RAISING AND lOWERING ThE OPTIONAl GATCh

To raise the gatch, lift either of the red lifting loops (A) until the gatch is in its fully raised position, then slowly lower
the gatch to allow the support bracket to engage into the locking mechanism. Make sure that the lock is fully engaged
before releasing the lifting loop.
To lower the gatch, lift either of the red lifting loops (A) to relieve pressure on the locking mechanism and while holding
the loop, lift up on the red release handle (B) until the bracket disengages. Lower the gatch to the flat position.
A
B
Foot End

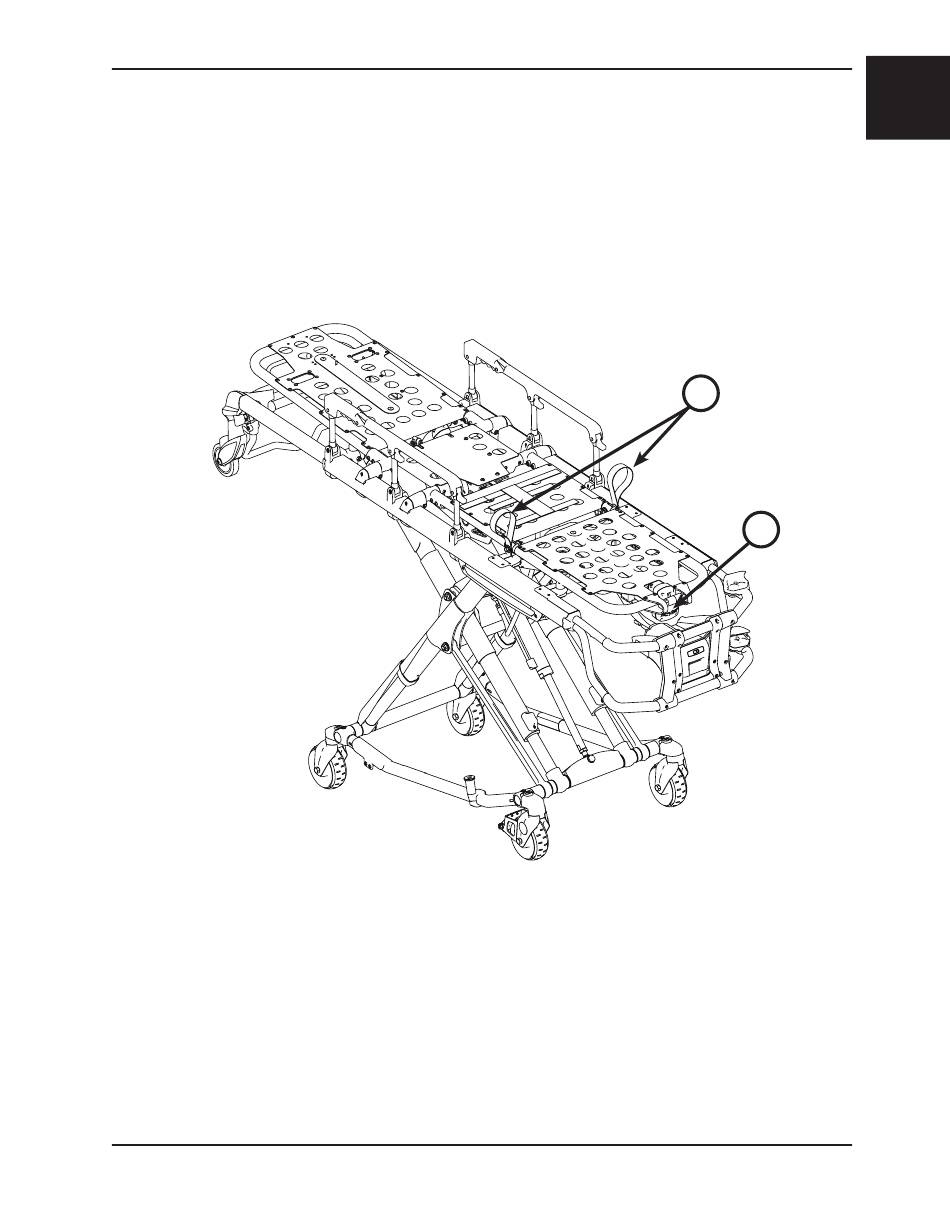

Figure 46: Gatch
