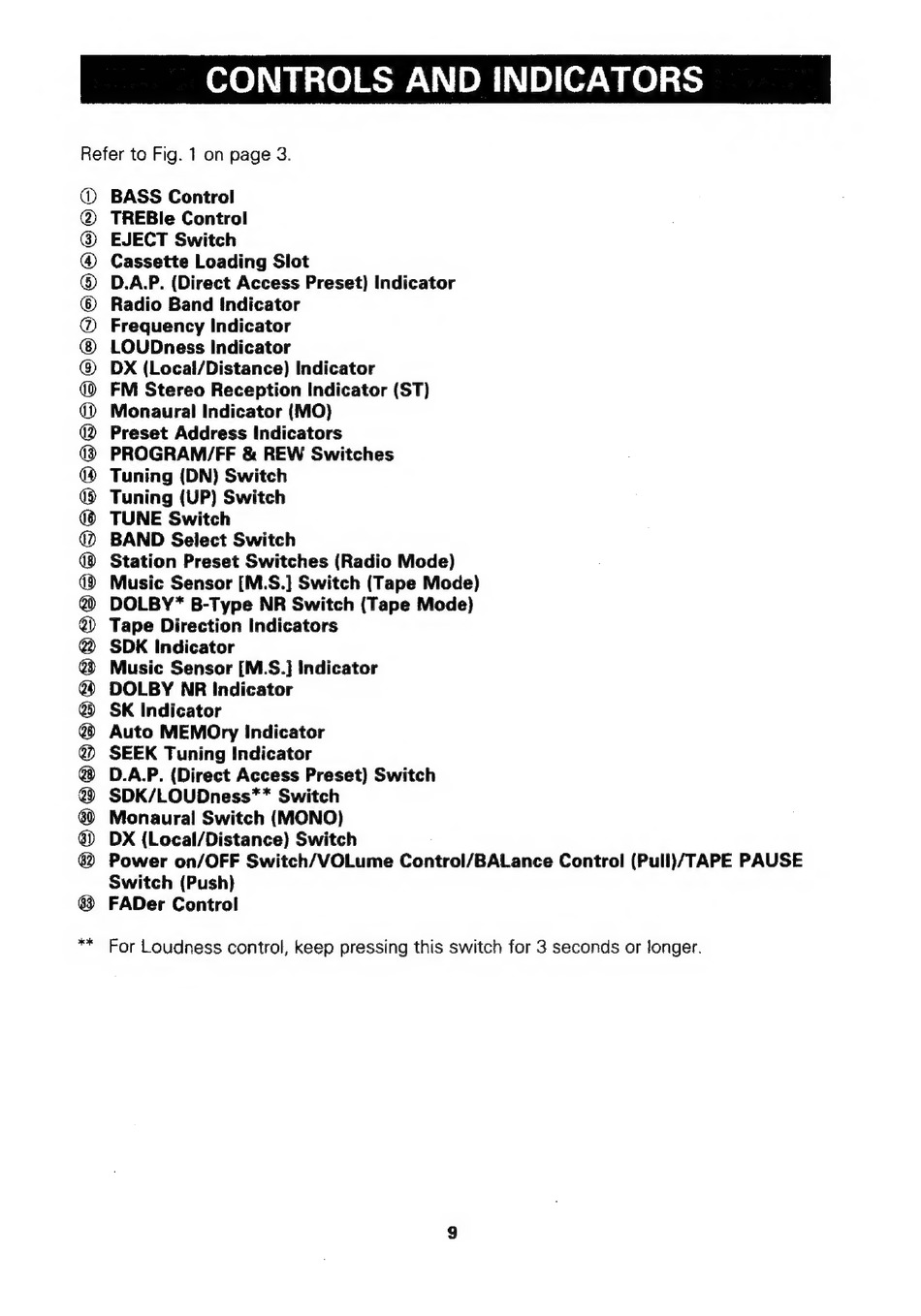

CONTROLS AND INDICATORS
Refer to Fig. 1 on page 3.
BASS Control
TREBle Control
EJECT Switch
Cassette Loading Slot
D.A.P. (Direct Access Preset) Indicator
Radio Band Indicator
Frequency Indicator
LOUDness Indicator
DX (Local/Distance) Indicator
FM Stereo Reception Indicator (ST)
Monaural Indicator (MQ)
Preset Address Indicators
PROGRAM/FF & REW Switches
Tuning (DN) Switch
Tuning (UP) Switch
TUNE Switch
BAND Select Switch
Station Preset Switches (Radio Mode)
Music Sensor [M.S.] Switch (Tape Mode)
DOLBY* 8-Type NR Switch (Tape Mode)
Tape Direction Indicators
SDK Indicator
Music Sensor [M.S.] indicator
DOLBY NR Indicator
SK Indicator
Auto MEMOry Indicator
SEEK Tuning Indicator
D.A.P. (Direct Access Preset) Switch
SDK/LOUDness** Switch
Monaural Switch (MONO)
DX (Local/Distance) Switch
Power on/OFF Switch/VOLume Control/BALance Control (Pull)/TAPE PAUSE
Switch (Push)
FADer Control
® ©0888 888888 88SOSOSO88SSO808088080
* *
For Loudness control, keep pressing this switch for 3 seconds or longer.
