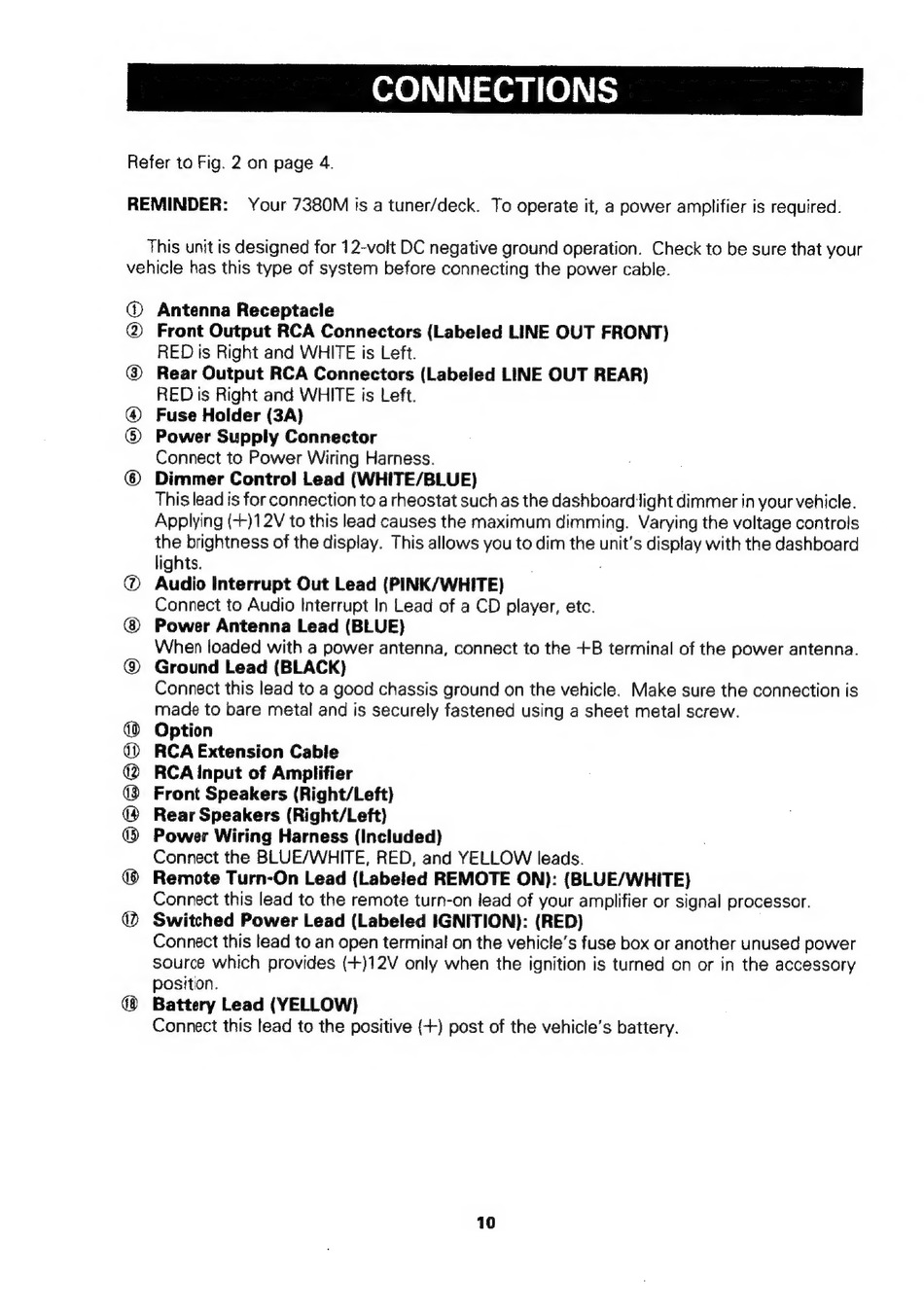

CONNECTIONS
Refer to Fig. 2 on page 4.
REMINDER: Your 7380M is a tuner/deck. To operate it, a power amplifier is required.
This unit is designed for 12-volt DC negative ground operation. Check to be sure that your
vehicle has this type of system before connecting the power cable.
© ©© © 686
© © 98
S © 888858
©
Antenna Receptacle
Front Output RCA Connectors (Labeled LINE OUT FRONT)
RED is Right and WHITE is Left.
Rear Output RCA Connectors (Labeled LINE OUT REAR)
RED is Right and WHITE is Left.
Fuse Holder (3A)
Power Supply Connector
Connect to Power Wiring Harness.
Dimmer Control Lead (WHITE/BLUE)
This lead is for connection to a rheostat such as the dashboard light dimmer in your vehicle.
Applying (+)12V to this lead causes the maximum dimming. Varying the voltage controls
the brightness of the display. This allows you to dim the unit's display with the dashboard
lights. ;
Audio Interrupt Out Lead (PINK/WHITE)
Connect to Audio Interrupt In Lead of a CD player, etc.
Power Antenna Lead (BLUE)
When loaded with a power antenna, connect to the +B terminal of the power antenna.
Ground Lead (BLACK)
Connect this lead to a good chassis ground on the vehicle. Make sure the connection is
made to bare metal and is securely fastened using a sheet metal screw.
Option
RCA Extension Cable
RCA Input of Amplifier
Front Speakers (Right/Left)
Rear Speakers (Right/Left)
Power Wiring Harness (Included)
Connect the BLUE/WHITE, RED, and YELLOW leads.
Remote Turn-On Lead (Labeled REMOTE ON): (BLUE/WHITE)
Connect this lead to the remote turn-on lead of your amplifier or signal processor.
Switched Power Lead (Labeled IGNITION): (RED)
Connect this lead to an open terminal on the vehicle's fuse box or another unused power
source which provides (+)12V only when the ignition is turned on or in the accessory
position.
Battery Lead (YELLOW)
Connect this lead to the positive (+) post of the vehicle's battery.
