dimensioned and used correctly in accordance with the latest industrial safety regulations (e. g. BGV C1,
BGI 810-3).
Please note: for overhead rigging in public or industrial areas, a series of safety instructions have to be
followed that this manual can only give in part. The operator must therefore inform himself on the current
safety instructions and consider them.
The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety
precautions!
Pull the safety bond through the attachment eyelet and over the trussing system or a safe fixation spot.
Insert the end in the quick link and tighten the safety screw.
The maximum drop distance must never exceed 20 cm.
A safety bond which already held the strain of a crash or which is defective must not be used again.
Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.
Before taking into operation for the first time, the installation has to be approved by an expert!
Removing the Fresnel lenses
The Zeitgeist Spot 210 features removable Fresnel lenses. If you wish to remove the Fresnel lens module,
in order to create a wider beam angle, for example, please follow these instructions:
Procedure:
Step 1: First remove the color filter frame, should it be mounted on the device, by pressing the holding clamp
together and pushing it back in order to open the clamp completely. You can now slide the color filter
frame up and out of the holding frame.
Step 2: Loosen the Phillips head screws on the front of the housing with a Phillips screwdriver. You can now
remove the Fresnel lens module.

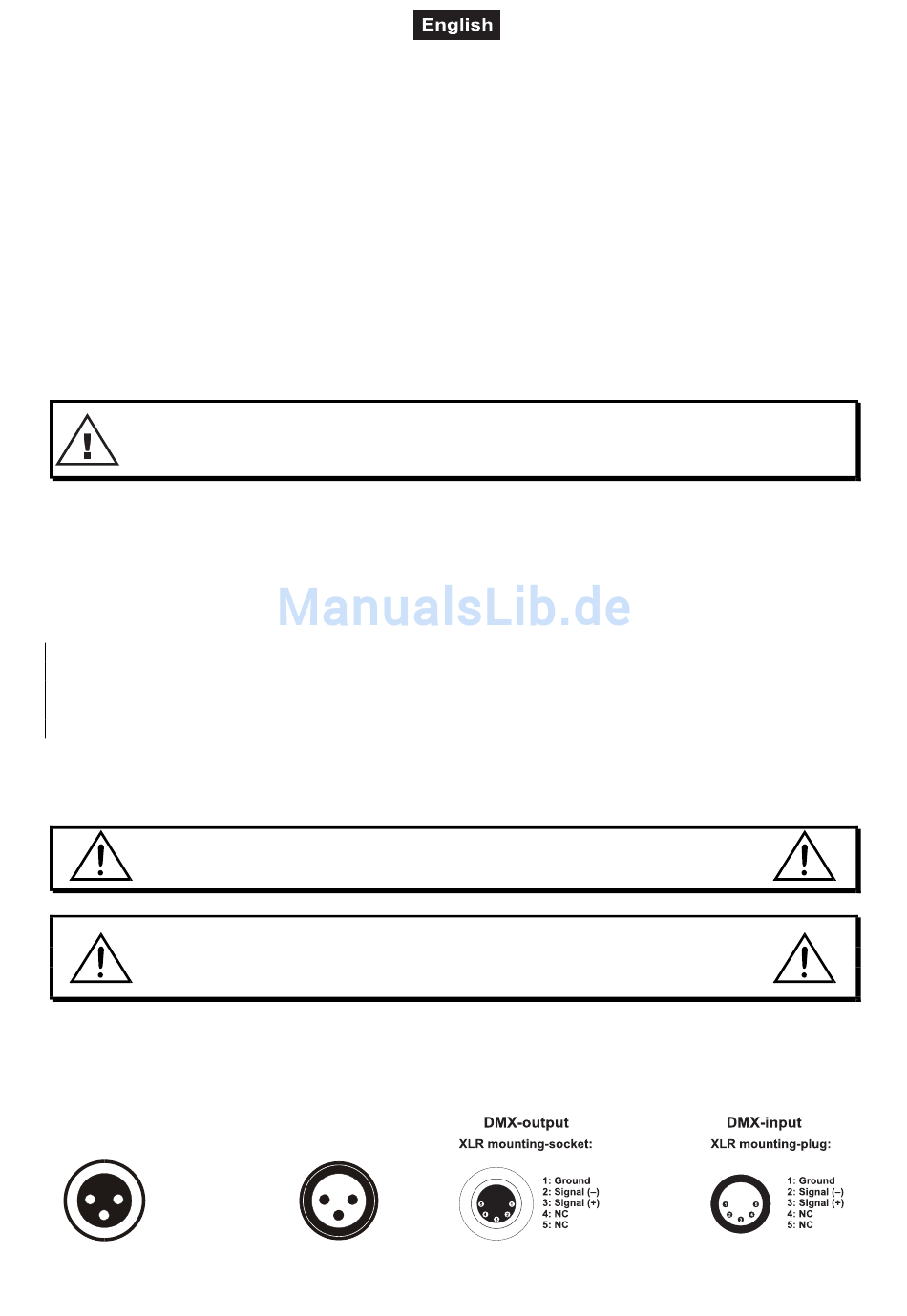

DMX-512 connection/connection between fixtures
The wires must not come into contact with each other, otherwise
Please note, the starting address depends upon which controller is being used.
Only use a DMX-cable and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with
the fixture or one fixture with another.
Occupation of the XLR-connection:
DMX-output
XLR mounting-socket:
1: Ground
2
1
2: Signal (–)
3
3: Signal (+)
DANGER TO LIFE!
the devices will not work at all, or will not work properly.
DMX-input
XLR mounting-plug:
1: Ground
2
1
2: Signal (–)
3
3: Signal (+)
28/40
00080219.DOC, Version 1.0
