X6 System Weighing Controller
2 S W
YSTEM EIGHING

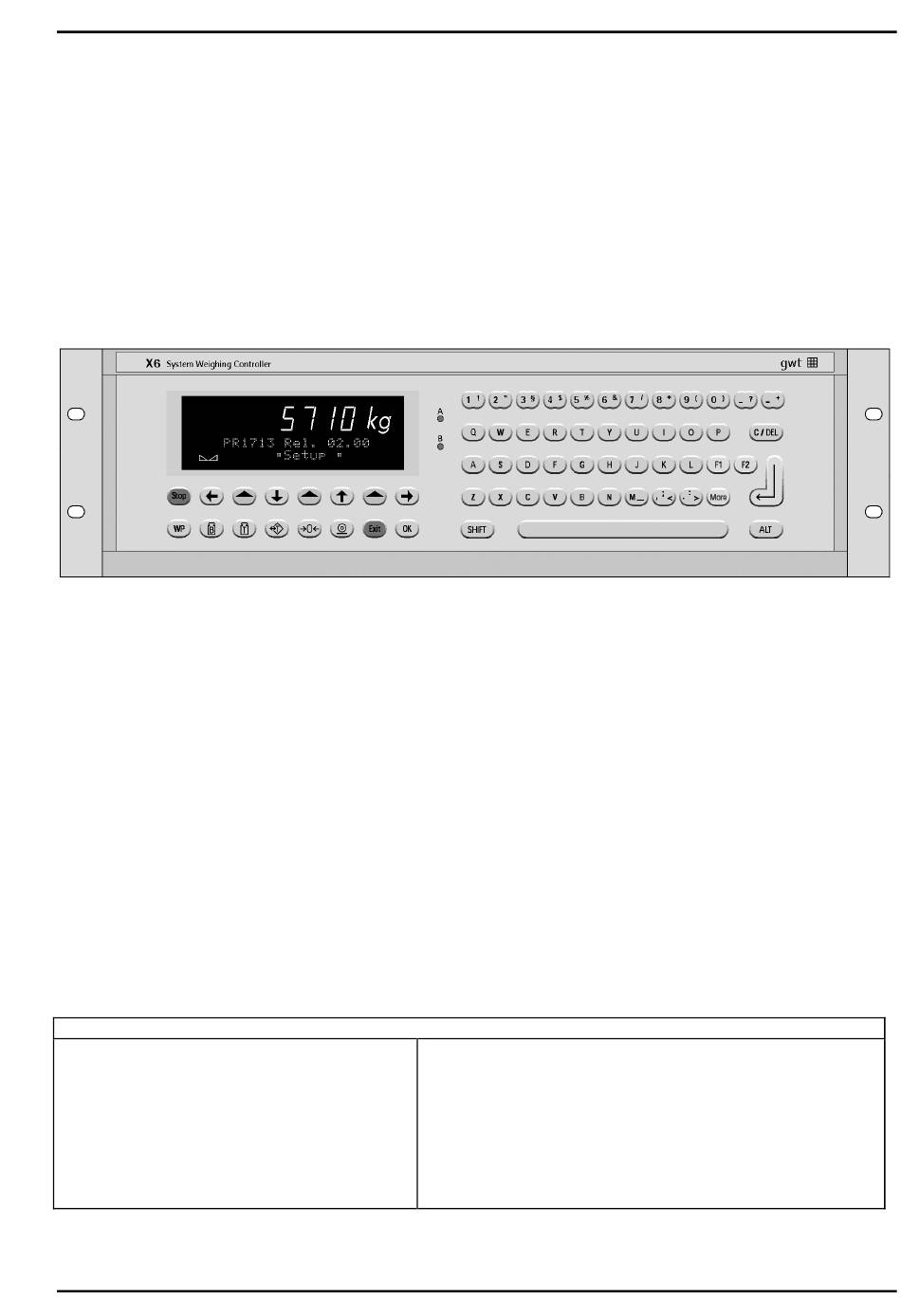

PR 5710 is equipped with an internal weighing point, display and full alphanumerical keypad. With an
application package (e.g. Batch X6) the unit is a powerful system for control of weighing and batching processes
and combines all functions such as convenient operator interface, weighing and batching controller, PLC and
interfacing.
The instrument is programmable according to the IEC 61131-3 standard (for field of application, see data sheet).
With PR 1750, PR 5710 can be matched easily to the application (operation), recipe functions (process steps) and
process control (by built-in PLC).

Basic instrument survey

2.1
• Accuracy 5000 d for the internal weighing point
• Fluorescent display for weight, 2 lines for text
• Front panel keypad with full alphanumerical, control and function keys
• Steel housing with aluminium frontplate, sealed to IP 54
• PC keyboard connectable at the rear
• Serial interface RS 232 built-in for e.g. printer, remote display, terminal or communication
• Extensible by means of options (4 slots), RAM-extension (2 sockets)
• Interfaces (except the RS 232, analog input) are galvanically isolated
• Load cell supply switchable between 12 VDC (+-6V DC) and 20 VDC (+- 10 VDC)
• Power connection for 230 V / 115 V AC, protection class I (protective earth)
• All connections are made by plug-in terminal blocks
• The unit is suitable for mounting in 19-inch racks / control panels
Calibration and configuration of PR 5710 are menu-guided via front panel keypad, PC or terminal
• Calibration by means of weights or by entry of the mV/V values without additional calculations
• Configuration of the interface cards, e.g. for remote display
• Analog test for analog/ digital converter via terminal
for the internal RS 232 or the optional RS 232/ 485
• EW protocol
• remote display
• printer, W&M printer
• JBUS/MODBUS (slave)
• DUST 3964R
• Modem
XBPI (Sartorius scale)
Sartorius
C PR 5710
ONTROLLER
Communication protocols:
Fieldbus slave with option PR 1721/2x
• Profibus-DP
• Interbus-S
• Device-Net
