Load Cell Supply; Jumper Setting 12 V - 20 V - Sartorius X6 System Weighing Controller Zusatzinformation

PR 5710 Additional Information X6 System Weighing Controller
3 L
OAD CELL SUPPLY
Jumper setting 12 V – 20 V
3.1

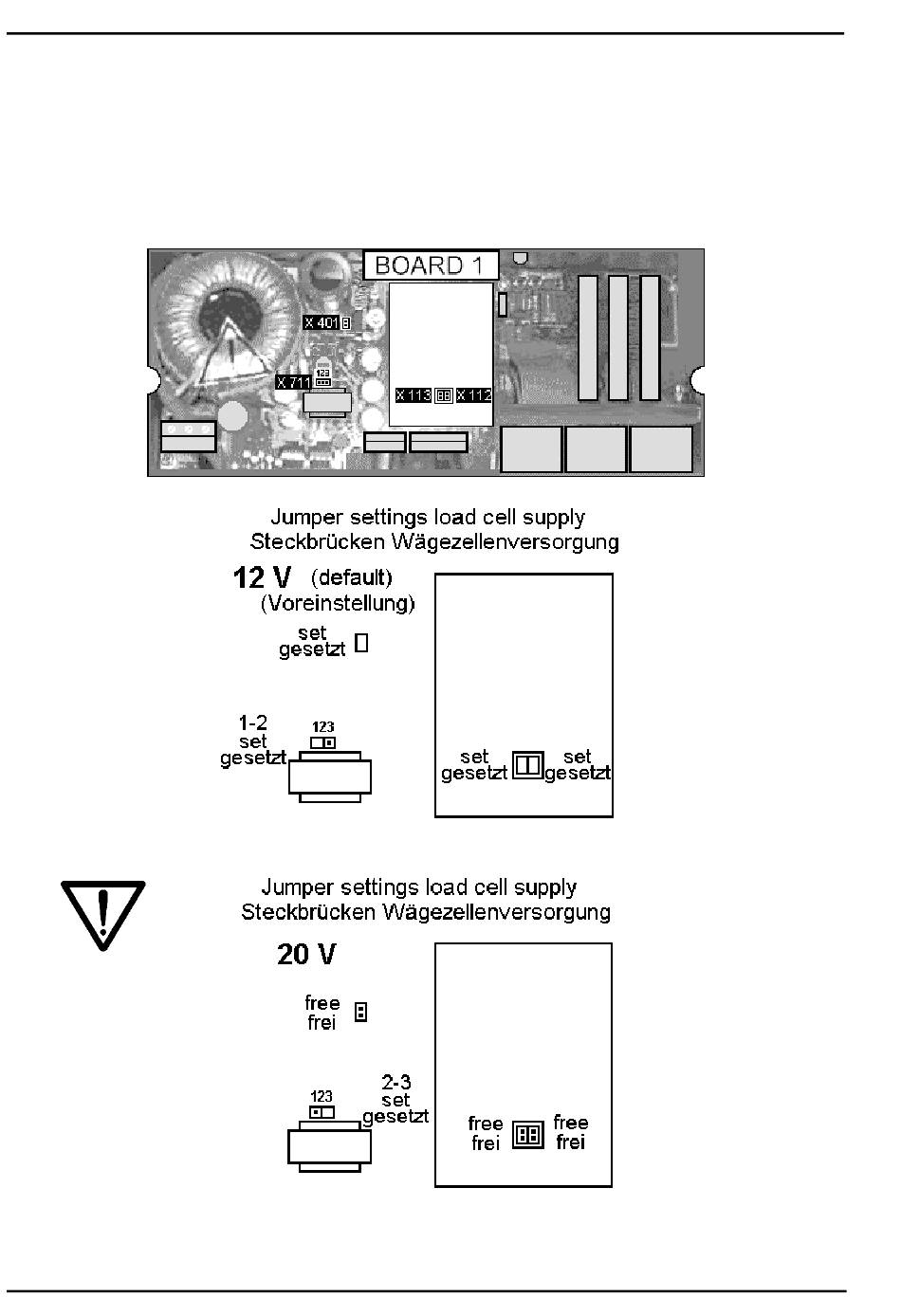

The load cell supply can be switched from 12 V (default) to 20 V by changing 4 jumpers on board 1.
≥ 75 ¥, e.g. 8 load cells with 650 ¥ each can be connected to the PR 5710.
The resistance is
If the load cell supply
voltage jumpers are
changed from 12 V
(default) to 20 V, the
voltage in the menu
[Param] has to be set to
20 V as well.
