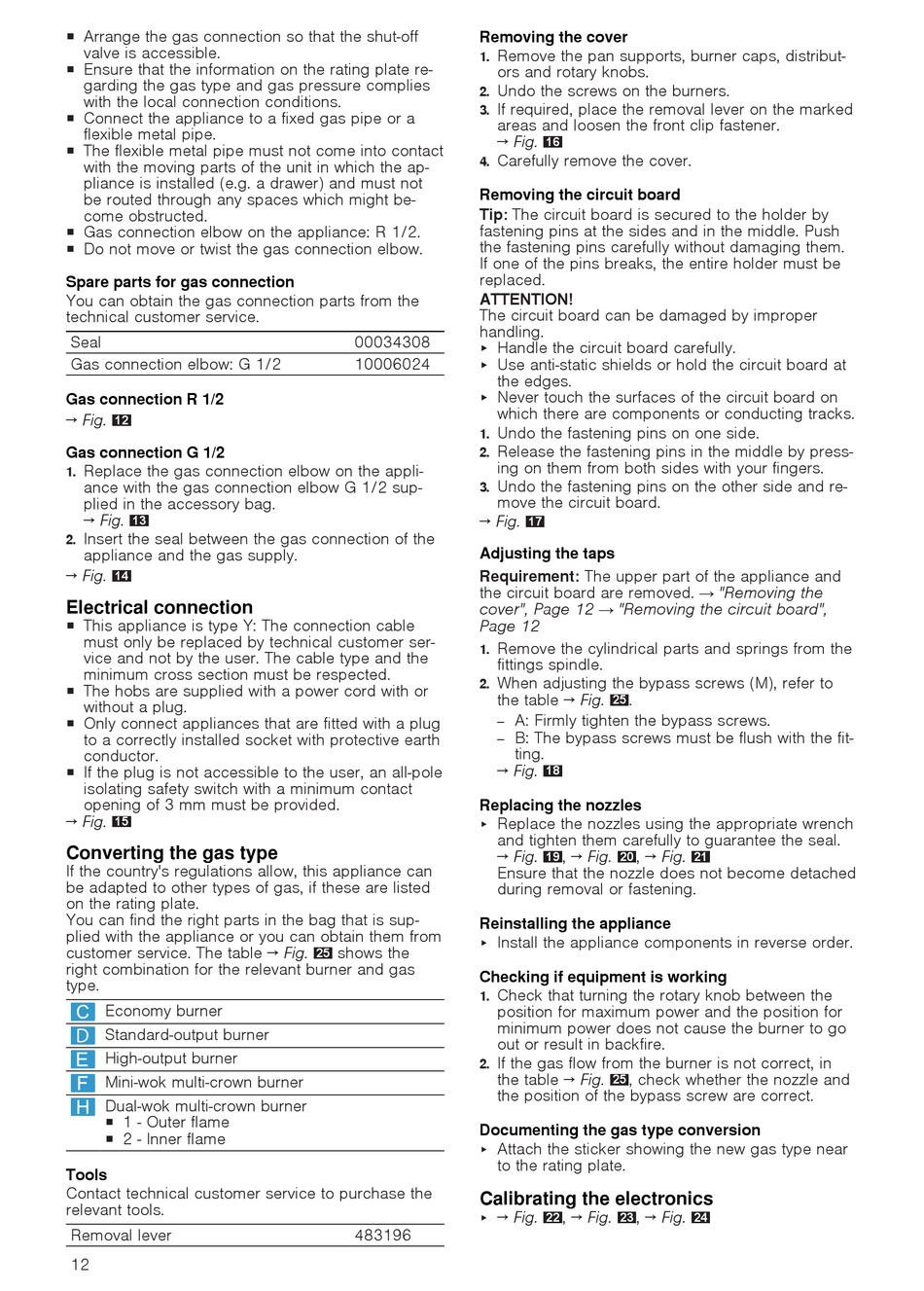

¡ Arrange the gas connection so that the shut-off
valve is accessible.
¡ Ensure that the information on the rating plate re-
garding the gas type and gas pressure complies
with the local connection conditions.
¡ Connect the appliance to a fixed gas pipe or a
flexible metal pipe.
¡ The flexible metal pipe must not come into contact
with the moving parts of the unit in which the ap-
pliance is installed (e.g. a drawer) and must not
be routed through any spaces which might be-
come obstructed.
¡ Gas connection elbow on the appliance: R 1/2.
¡ Do not move or twist the gas connection elbow.
Spare parts for gas connection
You can obtain the gas connection parts from the
technical customer service.
Seal
Gas connection elbow: G 1/2
Gas connection R 1/2
→ Fig.
12
Gas connection G 1/2
Replace the gas connection elbow on the appli-
1.
ance with the gas connection elbow G 1/2 sup-
plied in the accessory bag.
→ Fig.
13
Insert the seal between the gas connection of the
2.
appliance and the gas supply.
→ Fig.
14
Electrical connection
¡ This appliance is type Y: The connection cable
must only be replaced by technical customer ser-
vice and not by the user. The cable type and the
minimum cross section must be respected.
¡ The hobs are supplied with a power cord with or
without a plug.
¡ Only connect appliances that are fitted with a plug
to a correctly installed socket with protective earth
conductor.
¡ If the plug is not accessible to the user, an all-pole
isolating safety switch with a minimum contact
opening of 3 mm must be provided.
→ Fig.
15
Converting the gas type
If the country's regulations allow, this appliance can
be adapted to other types of gas, if these are listed
on the rating plate.
You can find the right parts in the bag that is sup-
plied with the appliance or you can obtain them from
customer service. The table → Fig.
right combination for the relevant burner and gas
type.
Economy burner
Standard-output burner
High-output burner
Mini-wok multi-crown burner
Dual-wok multi-crown burner
¡ 1 - Outer flame
¡ 2 - Inner flame
Tools
Contact technical customer service to purchase the
relevant tools.
Removal lever
12
Removing the cover
1.
2.
3.
4.
Removing the circuit board
Tip: The circuit board is secured to the holder by
fastening pins at the sides and in the middle. Push
the fastening pins carefully without damaging them.
If one of the pins breaks, the entire holder must be
replaced.
ATTENTION!
The circuit board can be damaged by improper
handling.
00034308
▶
10006024
▶
▶
1.
2.
3.
→ Fig.
Adjusting the taps
Requirement: The upper part of the appliance and
the circuit board are removed. → "Removing the
cover", Page 12 → "Removing the circuit board",
Page 12
1.
2.
Replacing the nozzles
▶
Reinstalling the appliance
▶
shows the
25
Checking if equipment is working
1.
2.
Documenting the gas type conversion
▶
Calibrating the electronics
▶
483196
Remove the pan supports, burner caps, distribut-
ors and rotary knobs.
Undo the screws on the burners.
If required, place the removal lever on the marked
areas and loosen the front clip fastener.
→ Fig.
16
Carefully remove the cover.
Handle the circuit board carefully.
Use anti-static shields or hold the circuit board at
the edges.
Never touch the surfaces of the circuit board on
which there are components or conducting tracks.
Undo the fastening pins on one side.
Release the fastening pins in the middle by press-
ing on them from both sides with your fingers.
Undo the fastening pins on the other side and re-
move the circuit board.
17
Remove the cylindrical parts and springs from the
fittings spindle.
When adjusting the bypass screws (M), refer to
the table → Fig. .
25
A: Firmly tighten the bypass screws.
‒
B: The bypass screws must be flush with the fit-
‒
ting.
→ Fig.
18
Replace the nozzles using the appropriate wrench
and tighten them carefully to guarantee the seal.
→ Fig. , → Fig. , → Fig.
19 20
Ensure that the nozzle does not become detached
during removal or fastening.
Install the appliance components in reverse order.
Check that turning the rotary knob between the
position for maximum power and the position for
minimum power does not cause the burner to go
out or result in backfire.
If the gas flow from the burner is not correct, in
the table → Fig. , check whether the nozzle and
25
the position of the bypass screw are correct.
Attach the sticker showing the new gas type near
to the rating plate.
→ Fig. , → Fig. , → Fig.
22 23
21
24
