1) Guide handle.
2) Control console.
3) Squeegee activation lever.
4) Lever for starting brush rotation and/or
dispensing water.
5) Lever for rotating handle positions.
6) Recovery water tank.
7) Recovery water tank cover.
8) Power cable (for C version only).
9) Clean water tank.
10) Clean water filling opening.
6

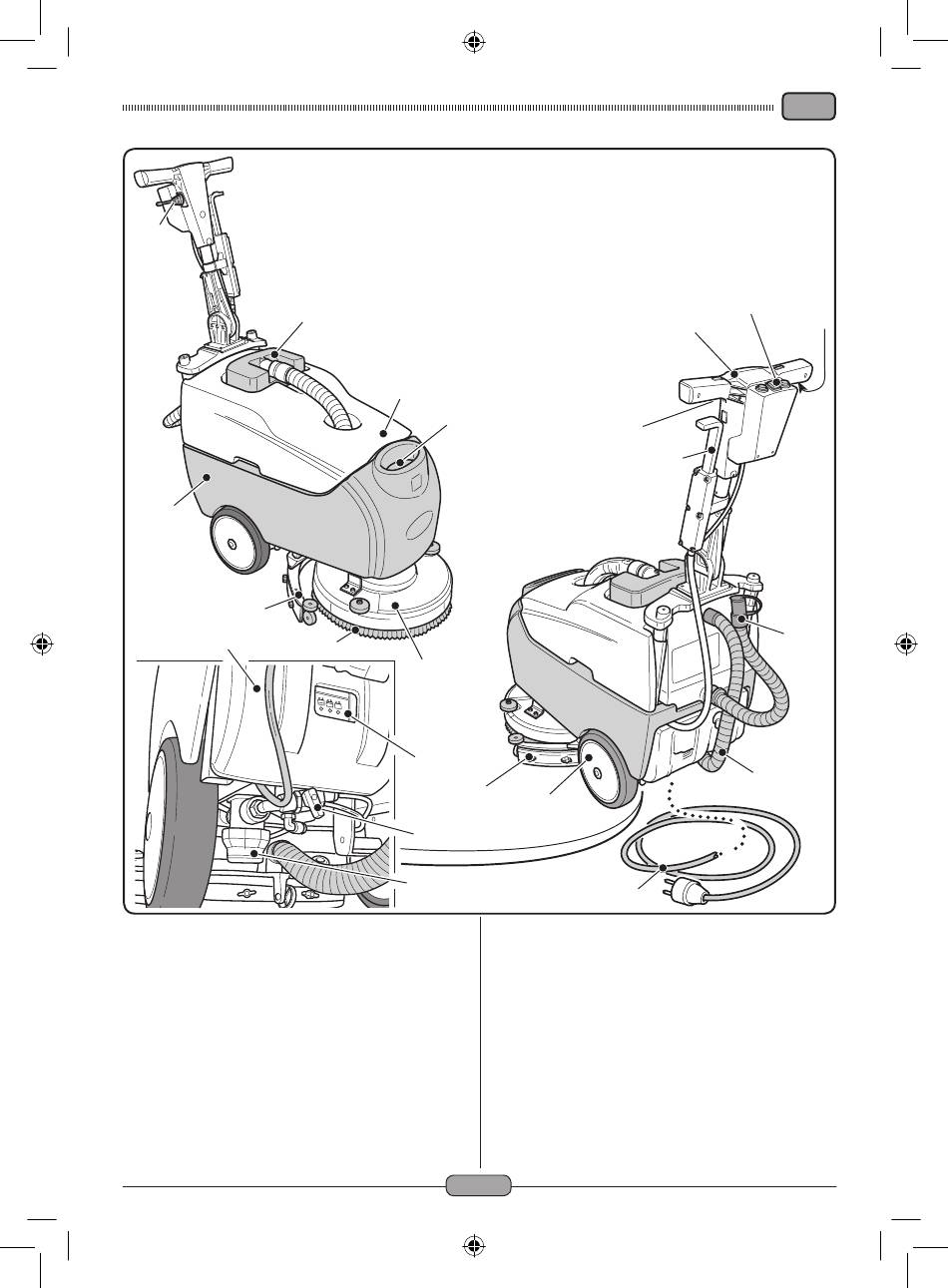

5.1 GETTING TO KNOW THE MACHINE
7
14
17 13
6
10
12
18
14
11
19
20
11) Wheels.
12) Brush rotation flange.
13) Brush.
14) Squeegee.
15) Recovery water drain hose.
16) Squeegee water aspiration hose.
17) Battery charger (for CB version only).
18) Batter charger indicator
(for CB version only).
19)Water regulation tap.
20) Water filter.
EN-11
EN
(Fig. 7)
2
1
4
3
15
16
8
Fig. 7
