Connection to the mains
DMX
IN
DMX
OUT
MODE ENTER
ON
POWER IN
OFF
1 0-240 V
0
50/60 Hz
The device uses an auto-range power supply that accepts input voltages between 100 und 240 volts.
1
The device is equipped with a lockable power input connector. Fix the mains cable and turn it to the right until it
locks. Connect the device via the mains cable to a grounded mains socket. Thus the unit is switched on.
2
To switch off the unit, disconnect the power plug.
3
Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a mains outlet
which is switchable.

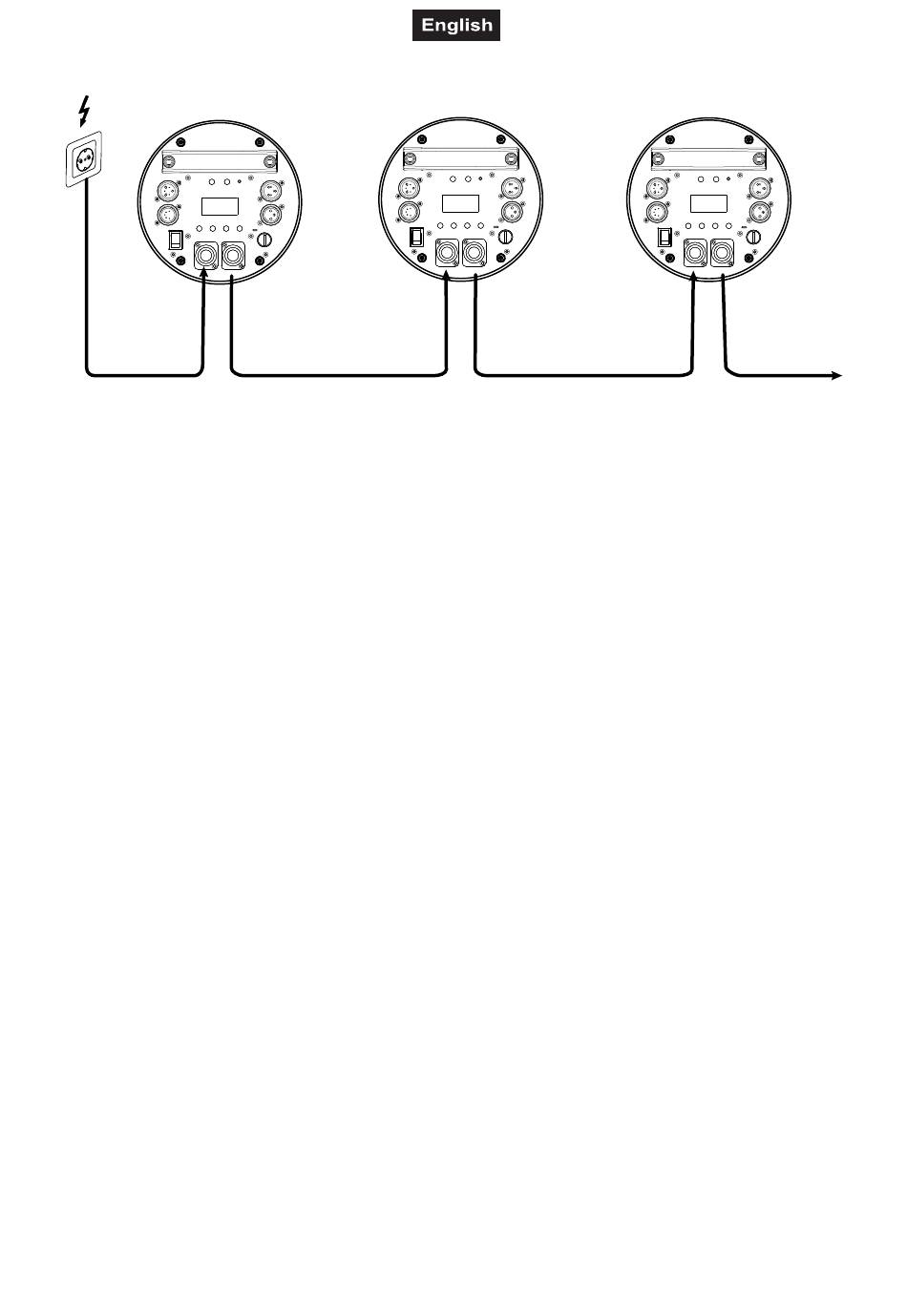

Power supply of further devices
The jack POWER OUT allows for power supply of further devices. To interconnect several devices, connect the
jack POWER OUT to the input POWER IN of the next unit until all units are connected. Matching power cables are
available as accessories. In this manner, up to 8 devices can be linked at 230/240 input voltage and up to 4
devices at 110/115 input voltage.
OPERATION
With the power switch, you can switch the device on and off. After connecting the device to the mains it is ready for
operation. The display shortly shows the firmware version and model name. The operating modes can be selected
by means of the display and the control buttons. All settings remain stored even if the device is disconnected from
the mains. The device can be operated in stand-alone mode via the control board or in DMX-controlled mode via
any commercial DMX controller.
During the reset, the motor is trimmed and then the device is ready for use.
Press the MODE button to access and browse through the main menu. Press the ENTER button in order to select
the desired menu item. You can change the selection by pressing UP or DOWN. Confirm every selection by
pressing the ENTER button. The functions provided are described in the following sections.
Manual Zoom Buttons
The manual zoom buttons are located on the rear of the device, as described under the chapter Description of the
Device.
Zooming: Press the Zoom-In or Zoom-Out button to manually adjust the zoom step by step.
ZOOM
ZOOM
DMX
DMX
OUT
IN
IN
DMX
OUT
DOWN
UP
T 3.15 A, 250 V
POWER OUT
~
ZOOM
ZOOM
DMX
DMX
DMX
OUT
IN
IN
IN
DMX
DMX
OUT
OUT
MODE ENTER
DOWN
UP
T 3.15 A, 250 V
ON
POWER IN
POWER OUT
OFF
1 0-240 V
0
~
50/60 Hz
22/28
ZOOM
ZOOM
DMX
DMX
DMX
OUT
IN
IN
IN
DMX
DMX
OUT
OUT
MODE ENTER
DOWN
UP
T 3.15 A, 250 V
ON
POWER IN
POWER OUT
OFF
1 0-240 V
0
~
50/60 Hz
00147009.DOCX, Version 1.0
