CONNECTIONS
DMX512 control
DMX Controller
A DMX512 data link is required in order to control the device via DMX. The device provides 3-pin and 5-pin XLR
connectors for DMX connection.
1
Connect the output of your DMX controller to the DMX input DMX IN of the device with a DMX cable.
2
Connect the DMX output DMX OUT of the device to the DMX input of the next unit in the chain. Always connect
one output to the input of the next unit until all units are connected.
3
At the last unit, the DMX cable has to be terminated. Plug the terminator with a 120 Ω resistor between Signal
(–) and Signal (+) in the DMX output of the last unit.
4
If the cable length exceeds 300 m or the number of DMX devices is greater than 32, it is recommended to
insert a DMX splitter to ensure proper data transmission.

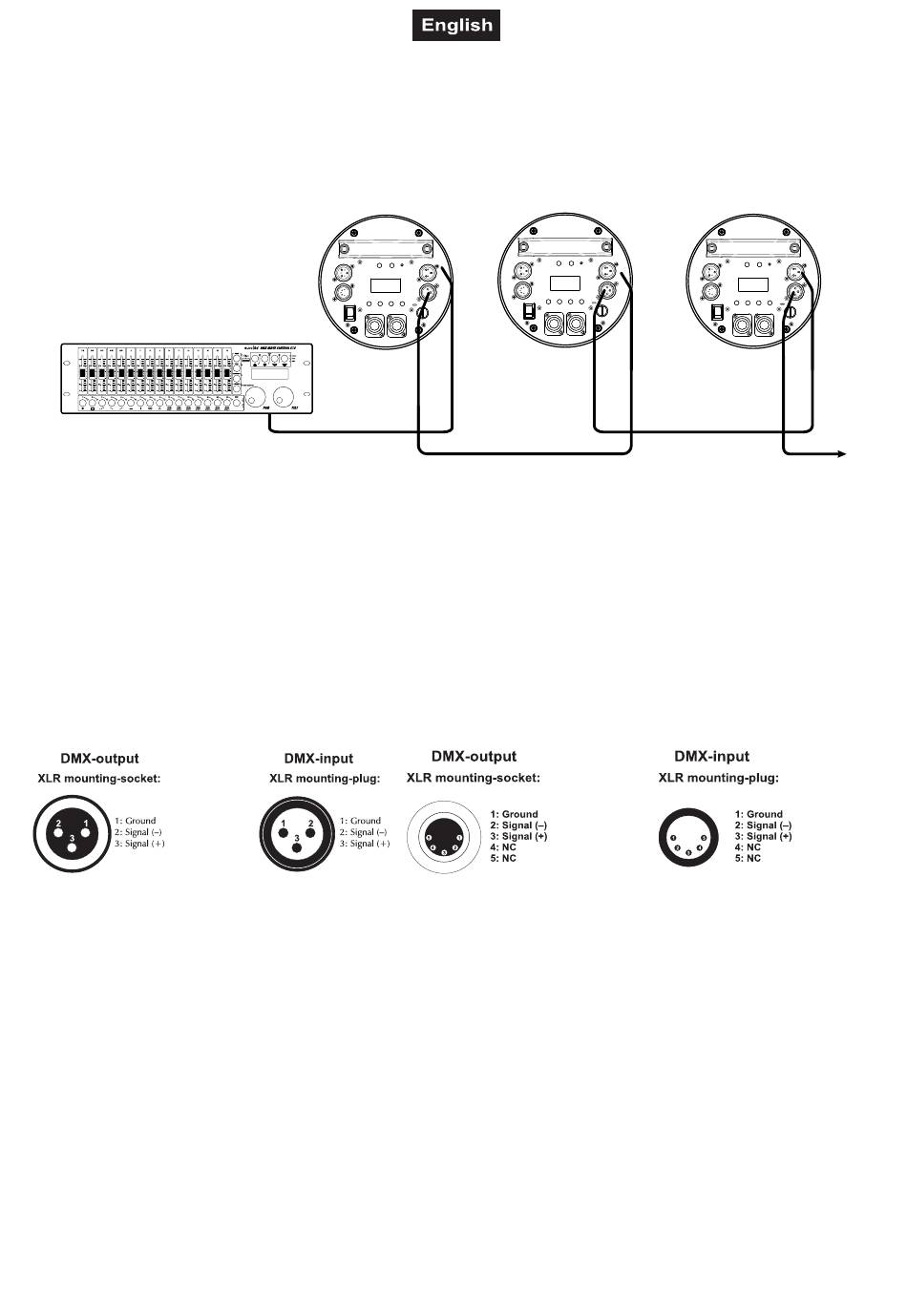

XLR connection:
Device 1
Starting Address 1
ZOOM
DMX
ZOOM
DMX
OUT
IN
IN
DMX
OUT
MODE ENTER
DOWN
UP
T 3.15 A, 250 V
ON
POWER IN
POWER OUT
OFF
1 0-240 V
0
~
50/60 Hz
Program
Chase32 Step100
Device 2
Starting Address 6
ZOOM
ZOOM
DMX
DMX
DMX
OUT
IN
IN
IN
DMX
DMX
OUT
OUT
MODE ENTER
DOWN
UP
T 3.15 A, 250 V
ON
POWER IN
POWER OUT
OFF
1 0-240 V
0
~
50/60 Hz
21/28
Device 3
Starting Address 11
DMX
ZOOM
ZOOM
DMX
DMX
IN
OUT
IN
IN
DMX
DMX
OUT
OUT
MODE ENTER
DOWN
UP
T 3.15 A, 250 V
ON
POWER IN
POWER OUT
OFF
1 0-240 V
0
~
50/60 Hz
00147009.DOCX, Version 1.0
DMX
IN
DMX
OUT
