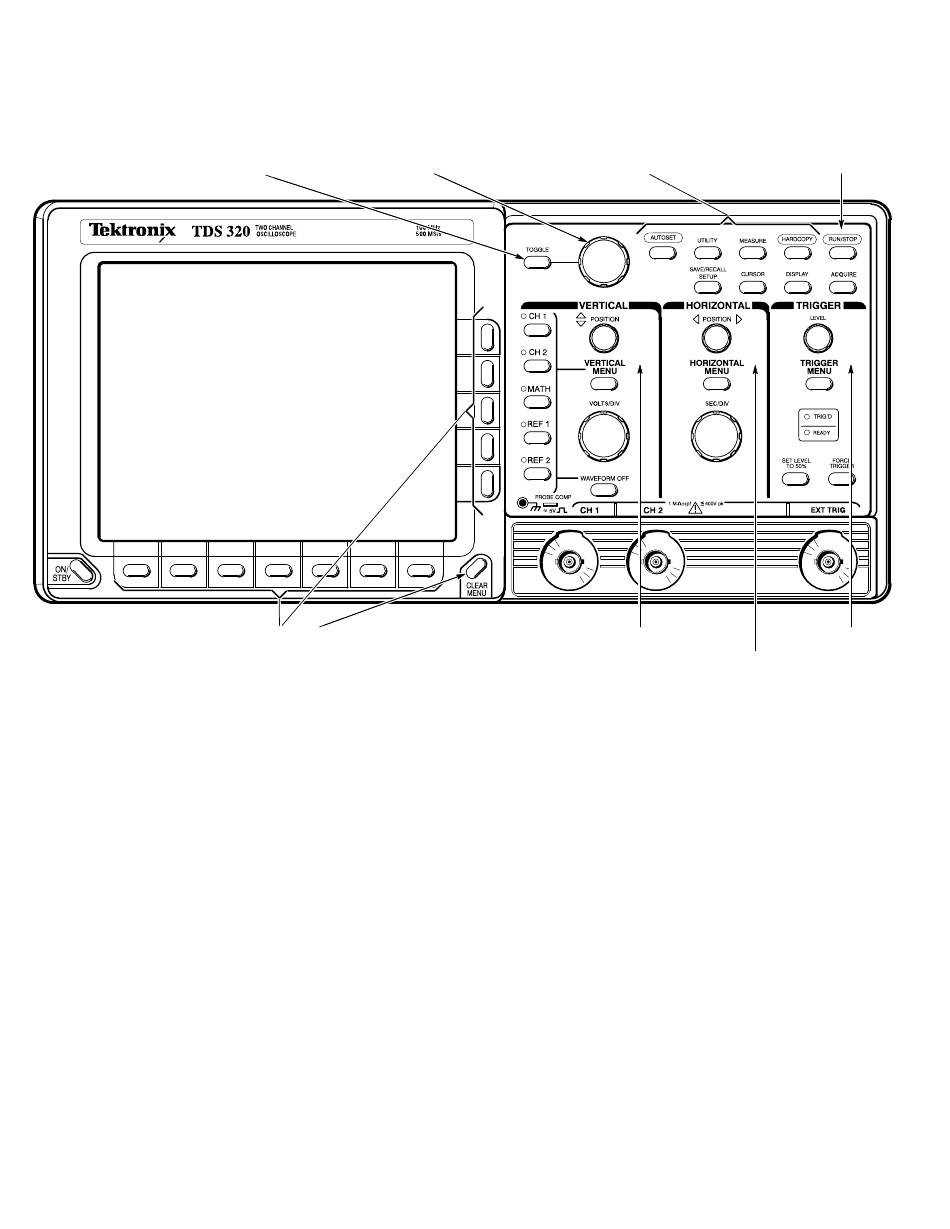

Tektronix TDS 320 Kurzanleitung

Cursor Control
Vertical Controls
CH 1 and CH 2 assign instrument control to the selected channel,
indicated with a lighted LED.
MATH displays the menu choices for the math operations and
activates the math waveform.
REF1 and REF2 activate the reference waveforms and display the
menu choices for saving a waveform.
POSITION moves the waveform vertically.
VERTICAL MENU displays the menu choices for the vertical system.
VOLTS/DIV adjusts the vertical scale.
WAVEFORM OFF clears the selected waveform from the display.
General Purpose Knob
Menu Controls
Miscellaneous Controls
Vertical Controls
Horizontal Controls
POSITION moves the waveform horizontally.
HORIZONTAL MENU displays the menu choices for the horizontal
system.
SEC/DIV adjusts the horizontal scale.
Trigger Controls
LEVEL selects the trigger level threshold.
TRIGGER MENU displays the menu choices for the triggering system.
TRIG'D indicates that the oscilloscope is triggered on a signal.
READY indicates that the trigger circuit is ready to accept a trigger.
FORCE TRIGGER forces a single trigger regardless of trigger level.
SET LEVEL TO 50% sets the trigger level threshold to the midpoint of
the input signal.
Acquisition Controls
Trigger Controls
Horizontal Controls
