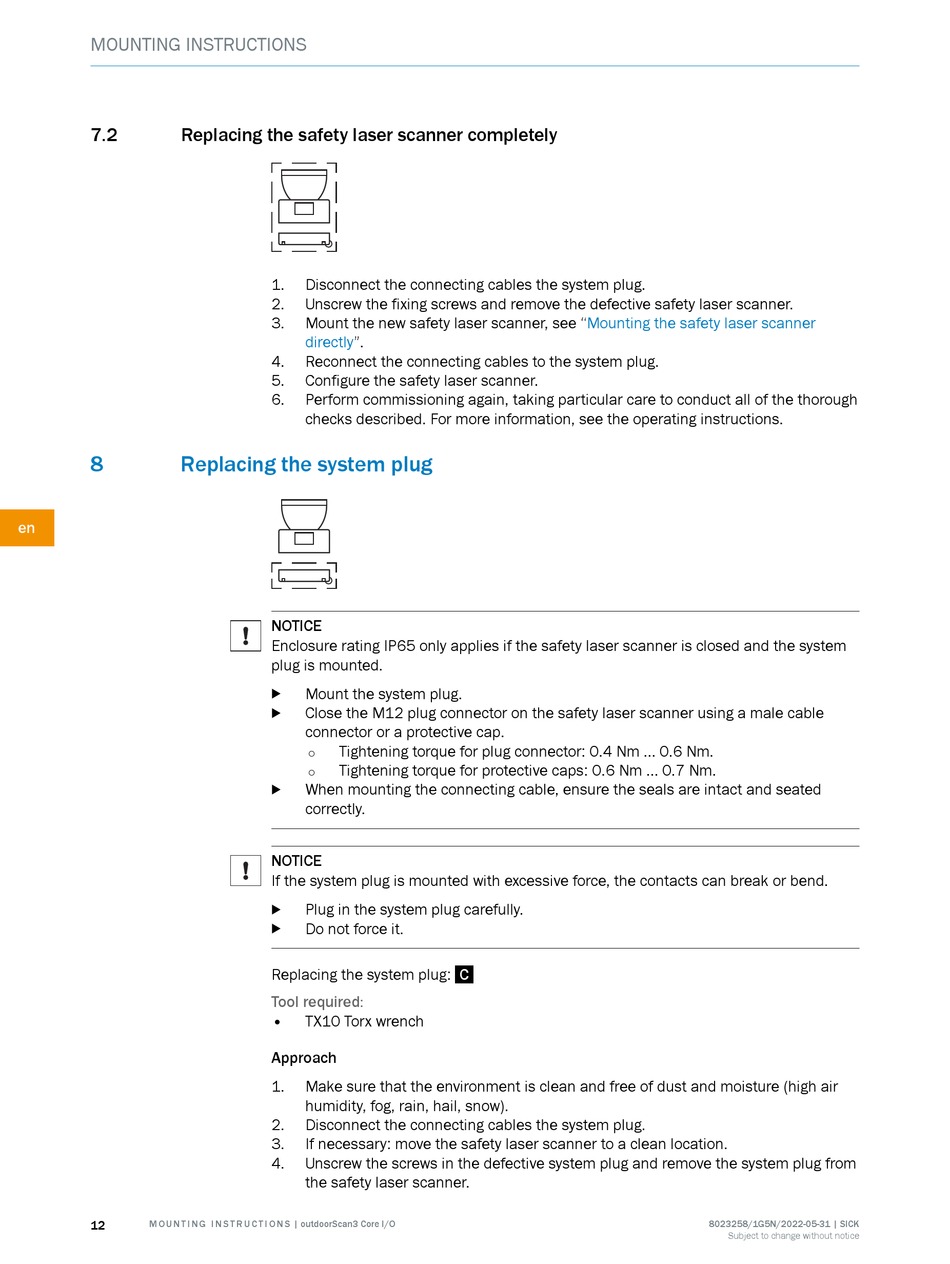

7.2 Replacing the safety laser scanner completely
8 Replacing the system plug
en
12 M O U N T I N G I N S T R U C T I O N S | outdoorScan3 Core I/O
1. Disconnect the connecting cables the system plug.
2. Unscrew the fixing screws and remove the defective safety laser scanner.
3. Mount the new safety laser scanner, see
directly".
4. Reconnect the connecting cables to the system plug.
5. Configure the safety laser scanner.
6. Perform commissioning again, taking particular care to conduct all of the thorough
checks described. For more information, see the operating instructions.
NOTICE
Enclosure rating IP65 only applies if the safety laser scanner is closed and the system
plug is mounted.
Mount the system plug.
b
Close the M12 plug connector on the safety laser scanner using a male cable
b
connector or a protective cap.
Tightening torque for plug connector: 0.4 Nm ... 0.6 Nm.
°
Tightening torque for protective caps: 0.6 Nm ... 0.7 Nm.
°
When mounting the connecting cable, ensure the seals are intact and seated
b
correctly.
NOTICE
If the system plug is mounted with excessive force, the contacts can break or bend.
Plug in the system plug carefully.
b
Do not force it.
b
Replacing the system plug:
Tool required:
•
TX10 Torx wrench
Approach
1. Make sure that the environment is clean and free of dust and moisture (high air
humidity, fog, rain, hail, snow).
2. Disconnect the connecting cables the system plug.
3. If necessary: move the safety laser scanner to a clean location.
4. Unscrew the screws in the defective system plug and remove the system plug from
the safety laser scanner.
"Mounting the safety laser scanner
C
