DO NOT DISTURB
Activation of the DND function that inhibits the device's ringer: press the button to enable/disable the feature. Pressing the button for 5 seconds extends DND on/off status to all indoor stations
in the flat.
LANGUAGE SETTINGS
Select the language of the device from those provided.
DATE AND TIME CONFIGURATION
Date and Time: select the date and time for the device;
Automatically synchronise time: if the device is connected to the internet, the date and time are automatically synchronised;
12-hour format: activation of time format with AM and PM mode;
Time zone: selection of the time zone of the area where the device is installed;
Summer: summer time mode;
NTP Server: enter the server address for automatic time acquisition.
NETWORK
Menu to activate the device's WI-FI connection, to select a network and to enter a security password for that network.
CLOUD INTERCOM SETTINGS
Menu to activate the Cloud service to manage incoming call answering from AVE VIDEO V44 APP.
Add new user: display of the system's unique QR code to associate it with the APP;
Delete APP user: deletion of a user associated with the system.
Note: it is not possible to delete the user who is the owner of the system; if you wish to do so, you must reset the device to its factory settings.
INFO: system information.
PASSWORD SETTINGS
This menu allows you to change the password to access the advanced configuration parameters. Enter the current menu access password: in the window that appears, enter the old
password, the new password and confirm the latter. The default password is 222222.
CONFIGURATION SETTINGS
Enter the security password to access the following parameters:
FLAT NUMBER SETTING: this is the flat number assigned to the device (number corresponding to the call button on the outdoor station)
DEVICE RESET: reset the device to default factory parameters.
7) PAIRING THE AVE VIDEO V44 APP
The device can be paired with a mobile phone to answer incoming calls from an iOS or Android operating system.
Download the AVE VIDEO V44 APP from the app store or GOOGLE PLAY and register the new user.
To pair the mobile phone, simply access the system settings and then the "Cloud Intercom Setting" menu. Press the "Add New User" button and
centre the QR code using your phone's camera.
8) TECHNICAL CHARACTERISTICS
Operating voltage
Maximum operating voltage
Absorption during operation
Absorption during stand-by
Dimensions (L x H x D)
LCD size
Resolution
Environmental class as per EN 62820-1-1
Operating temperature
Maximum altitude
Maximum number of devices that may be installed in each apartment
Maximum number of devices that can be installed
Installation
Protection rating
SD CARD

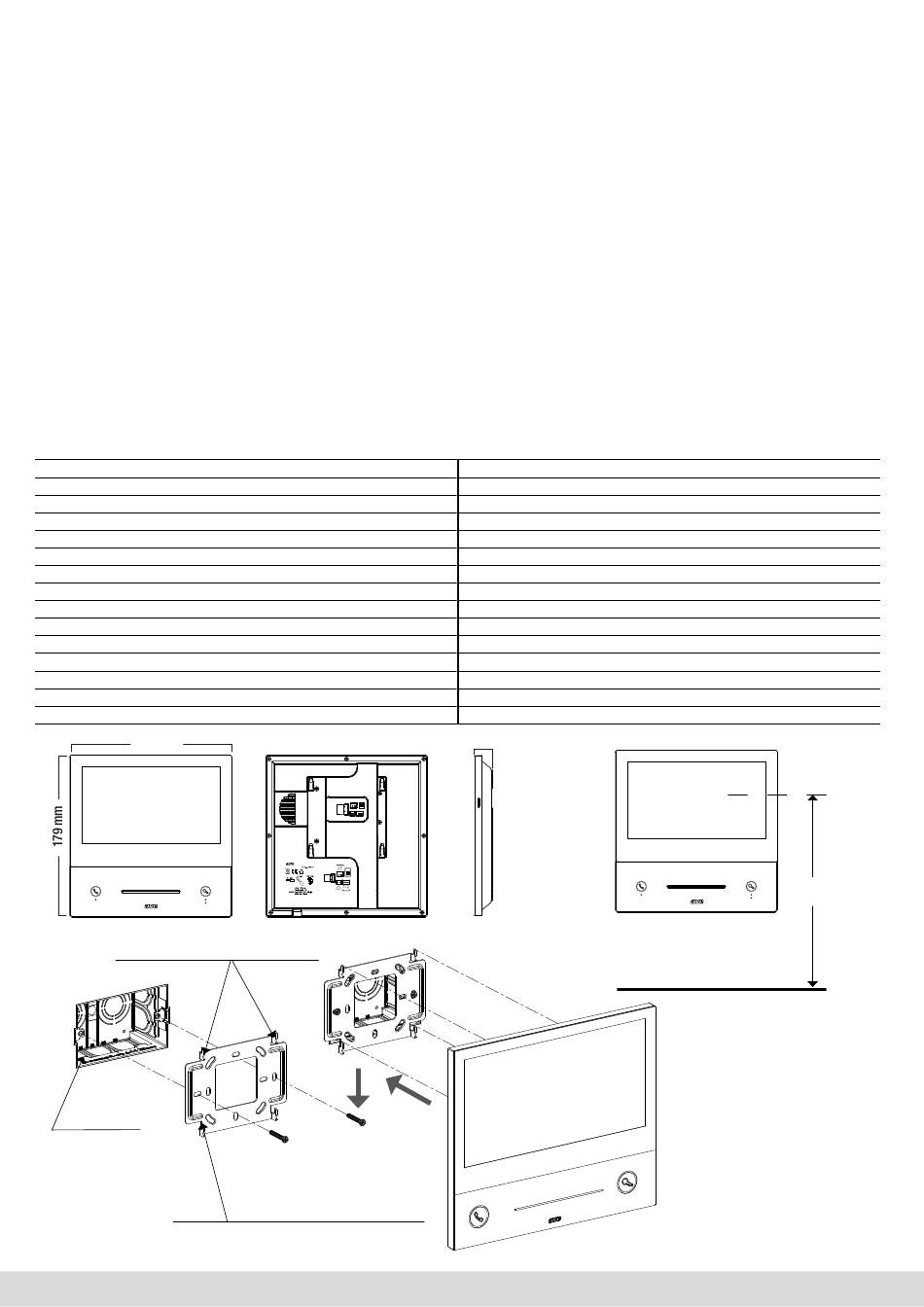

179 mm
ANCHOR HOOKS
RECESSED
BOX
VI2F-PIT7WF POWER
RC
M
ON
1 2
BUS
S NC
BUS
RS485
SCREWS
SUPPORT PLATE
30Vcc
32Vcc
182 mA max @ 30 VDC
111 mA max @ 30 VDC
179.6 x 179.6 x 25 mm
7 inches 16/9
1024 x 600 pixels
CLASS III
From -10 °C to +55 °C
2000 m a.s.l.
4
128
On 3-Module boxes, using the bracket provided
IP20 (IP40 when installed)
2 – 32 GB (not supplied)
25 mm
6
179 mm
VI2F-PIT7WF
1.5 m
GROUND
POWER
M RC
ON
1 2
BUS
S NC
BUS
RS485
