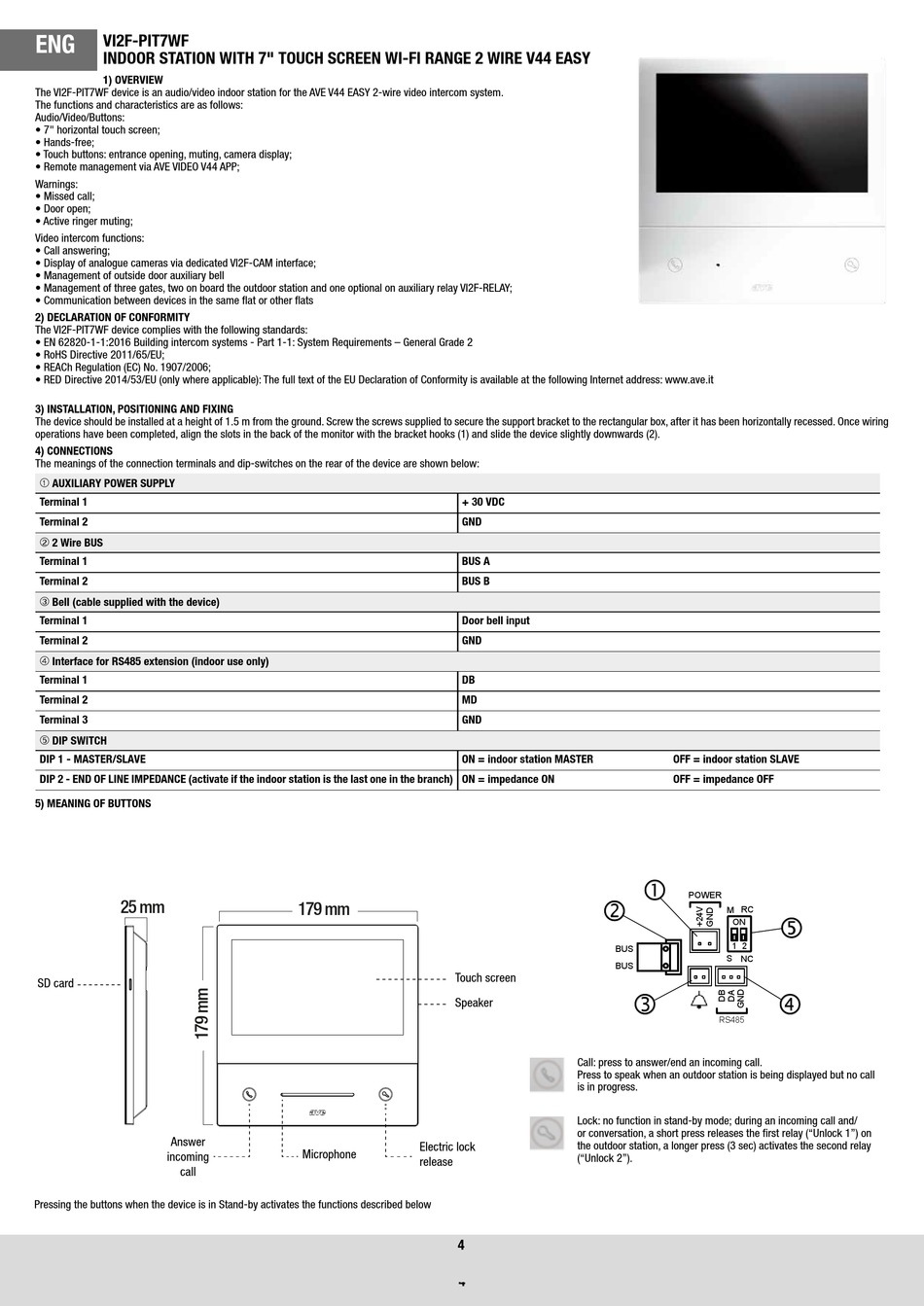

VI2F-PIT7WF
INDOOR STATION WITH 7" TOUCH SCREEN WI-FI RANGE 2 WIRE V44 EASY
1) OVERVIEW
The VI2F-PIT7WF device is an audio/video indoor station for the AVE V44 EASY 2-wire video intercom system.
The functions and characteristics are as follows:
Audio/Video/Buttons:
• 7" horizontal touch screen;
• Hands-free;
• Touch buttons: entrance opening, muting, camera display;
• Remote management via AVE VIDEO V44 APP;
Warnings:
• Missed call;
• Door open;
• Active ringer muting;
Video intercom functions:
• Call answering;
• Display of analogue cameras via dedicated VI2F-CAM interface;
• Management of outside door auxiliary bell
• Management of three gates, two on board the outdoor station and one optional on auxiliary relay VI2F-RELAY;
• Communication between devices in the same flat or other flats
2) DECLARATION OF CONFORMITY
The VI2F-PIT7WF device complies with the following standards:
• EN 62820-1-1:2016 Building intercom systems - Part 1-1: System Requirements – General Grade 2
• RoHS Directive 2011/65/EU;
• REACh Regulation (EC) No. 1907/2006;
• RED Directive 2014/53/EU (only where applicable): The full text of the EU Declaration of Conformity is available at the following Internet address: www.ave.it
3) INSTALLATION, POSITIONING AND FIXING
The device should be installed at a height of 1.5 m from the ground. Screw the screws supplied to secure the support bracket to the rectangular box, after it has been horizontally recessed. Once wiring
operations have been completed, align the slots in the back of the monitor with the bracket hooks (1) and slide the device slightly downwards (2).
4) CONNECTIONS
The meanings of the connection terminals and dip-switches on the rear of the device are shown below:
AUXILIARY POWER SUPPLY
Terminal 1
Terminal 2
2 Wire BUS
Terminal 1
Terminal 2
Bell (cable supplied with the device)
Terminal 1
Terminal 2
Interface for RS485 extension (indoor use only)
Terminal 1
Terminal 2
Terminal 3
DIP SWITCH
DIP 1 - MASTER/SLAVE
DIP 2 - END OF LINE IMPEDANCE (activate if the indoor station is the last one in the branch) ON = impedance ON
5) MEANING OF BUTTONS
25 mm
SD card
Answer
incoming
call
Pressing the buttons when the device is in Stand-by activates the functions described below
+ 30 VDC
GND
BUS A
BUS B
Door bell input
GND
DB
MD
GND
ON = indoor station MASTER
179 mm
Touch screen
Speaker
Electric lock
Microphone
release
4
4
OFF = indoor station SLAVE
OFF = impedance OFF
VI2F-PIT7WF
BUS
BUS
Call: press to answer/end an incoming call.
VI2F-PIT7WF
POWER
M
RC
ON
Press to speak when an outdoor station is being displayed but no call
1 2
BUS
S
NC
BUS
is in progress.
RS485
Lock: no function in stand-by mode; during an incoming call and/
or conversation, a short press releases the first relay ("Unlock 1") on
the outdoor station, a longer press (3 sec) activates the second relay
("Unlock 2").
POWER
25 mm
RC
M
ON
1 2
S
NC
RS485
