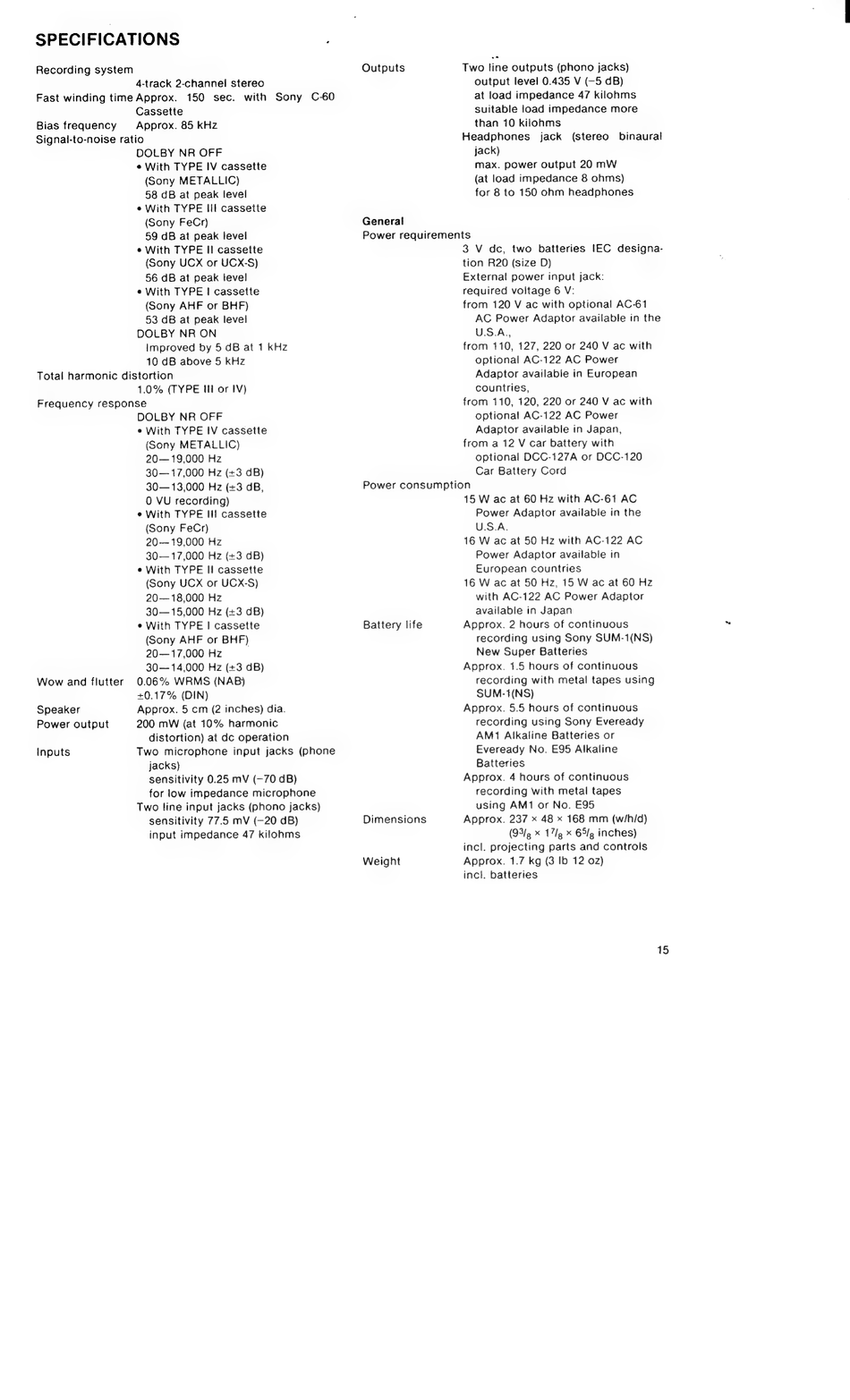

SPECIFICATIONS
Recording system
4-track 2-channel stereo
Fast winding time Approx. 150 sec. with Sony C-60
Cassette
Bias frequency Approx. 85 kHz
Signal-to-noise ratio
DOLBY NR OFF
e With TYPE IV cassette
(Sony METALLIC)
58 dB at peak level
«With TYPE Ill cassette
(Sony FeCr)
59 dB at peak level
e With TYPE Il cassette
(Sony UCX or UCX-S)
56 dB at peak level
«With TYPE | cassette
(Sony AHF or BHF)
53 dB at peak level
DOLBY NR ON
Improved by 5 dB at 1 kHz
10 dB above 5 kHz
Total harmonic distortion
1.0% (TYPE lil or IV)
Frequency response
DOLBY NR OFF
e With TYPE IV cassette
(Sony METALLIC)
20— 19,000 Hz
30— 17,000 Hz (+3 dB)
30— 13,000 Hz (+3 dB,
0 VU recording)
e With TYPE I! cassette
(Sony FeCr)
20-— 19,000 Hz
30— 17,000 Hz (+3 dB)
«With TYPE Il cassette
(Sony UCX or UCX-S)
20— 18,000 Hz
30— 15,000 Hz (+3 dB)
e With TYPE | cassette
(Sony AHF or BHF)
20—17,000 Hz
30— 14,000 Hz (+3 dB)
0.06% WRMS (NAB)
+0.17% (DIN)
Approx. 5 cm (2 inches) dia.
200 mW (at 10% harmonic
distortion) at dc operation
Two microphone input jacks (phone
jacks)
sensitivity 0.25 mV (—70 dB)
for low impedance microphone
Two fine input jacks (phono jacks)
sensitivity 77.5 mV (-20 dB)
input impedance 47 kilohms
Wow and flutter
Speaker
Power output
Inputs
Two line outputs (phono jacks)
output level 0.435 V (—5 dB)
at load impedance 47 kilohms
suitable load impedance more
than 10 kilohms
Headphones jack (stereo binaural
jack)
max. power output 20 mW
(at load impedance 8 ohms)
for 8 to 150 ohm headphones
Outputs
General
Power requirements
3 V dc, two batteries IEC designa-
tion R20 (size D)
External power input jack:
required voitage 6 V:
from 120 V ac with optional AC-61
AC Power Adaptor available in the
U.S.A.,
from 110, 127, 220 or 240 V ac with
optional AC-122 AC Power
Adaptor available in European
countries,
from 110, 120, 220 or 240 V ac with
optional AC-122 AC Power
Adaptor available in Japan,
from a 12 V car battery with
optional DCC-127A or DCC-120
Car Battery Cord
Power consumption
15 W ac at 60 Hz with AC-61 AC
Power Adaptor available in the
U.S.A.
16 W ac at 50 Hz with AC-122 AC
Power Adaptor available in
European countries
16 W ac at 50 Hz, 15 W ac at 60 Hz
with AC-122 AC Power Adaptor
available in Japan
Approx. 2 hours of continuous 9
recording using Sony SUM-1(NS)
New Super Batteries
Approx. 1.5 hours of continuous
recording with metal tapes using
SUM-1(NS)
Approx. 5.5 hours of continuous
recording using Sony Eveready
AM1 Alkaline Batteries or
Eveready No. E95 Alkaline
Batteries
Approx. 4 hours of continuous
recording with metal tapes
using AM1 or No. E95
Approx. 237 x 48 x 168 mm (w/h/d)
(93/g x 17/g x 65/g inches)
incl. projecting parts and controls
Approx. 1.7 kg (3 Ib 12 02)
incl. batteries
Battery life
Dimensions
Weight
