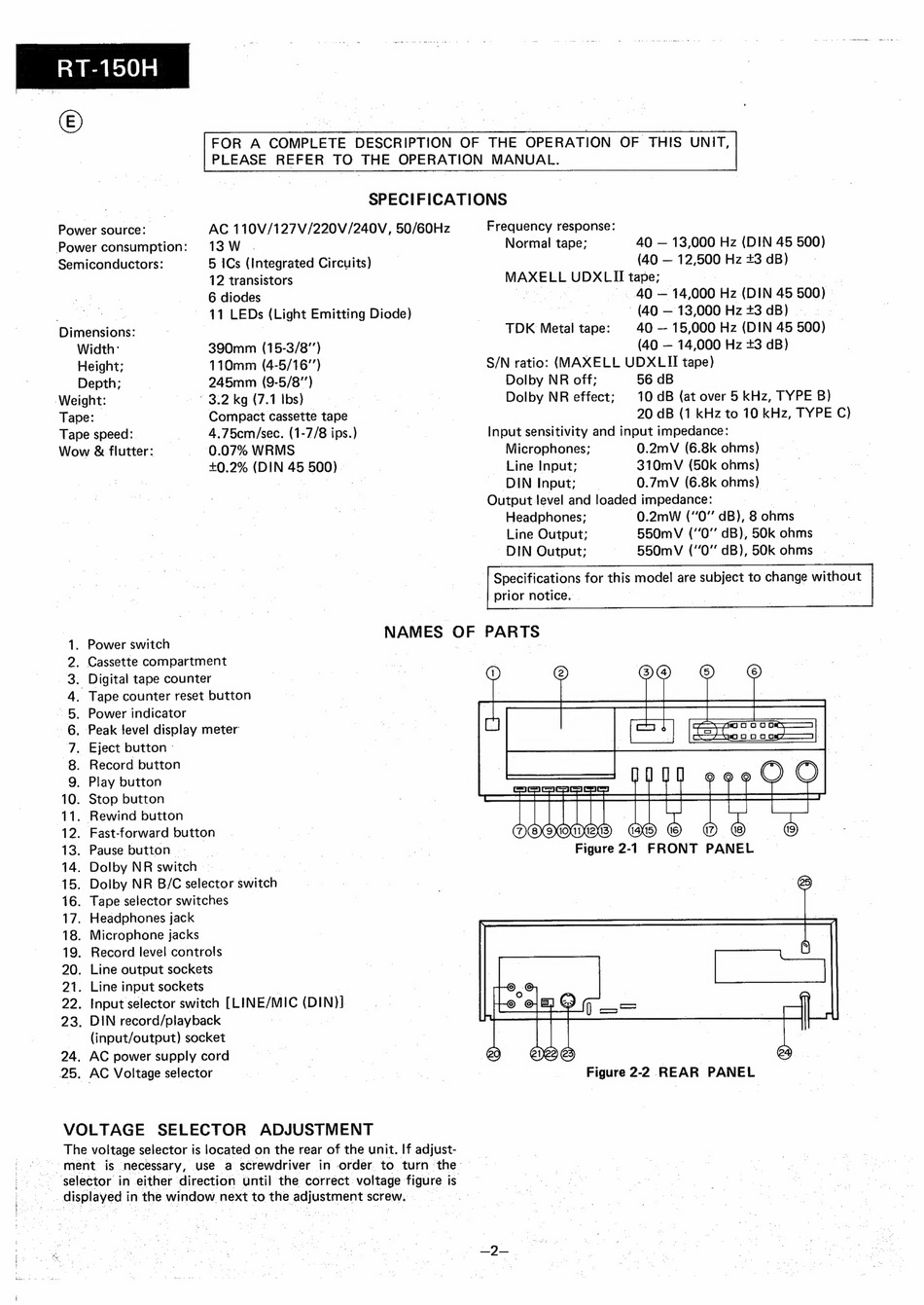

Sharp RT-150H Serviceanleitung Seite 2

RT-150H
©)
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT,
PLEASE REFER TO THE OPERATION MANUAL.
| | a SPECIFICATIONS
Power source: AC 110V/127V/220V/240V, 50/60Hz Frequency response:
Power consumption:
13W .
Normal tape;
40 — 13,000 Hz (DIN 45 500)
Semiconductors:
5 ICs (Integrated Circuits)
(40 — 12,500 Hz +3 dB)
7
12 transistors
wee LL UDX Lil tape;
6 diodes
ae ae A, 40
— 14, 000 Hz (DIN 45 600)
a 11 LEDs (Light Emitting Diode) (40 = 13,000 Hz #3. dB)
Dimensions:
|
|
TDK Metal tape:
40 — 15,000 Hz (DIN 45 500)
Width:
390mm (15-3/8'")
(40 — 14,000 Hz +3 dB)
Height;
110mm (4-5/16') |
S/N ratio: (MAXELL UDXLII tape)
Depth; |
245mm (9-5/8"")
)
Dolby NR off;
56 dB
Weight: |
3.2 kg (7.1 Ibs)
.
Dolby NR effect;
10dB (at over 5 kHz, TYPE B)
Tape: —
Compact cassette tape _ e
20 dB (1 kHz to 10 kHz, TYPE C)
Tape speed: [
4.75cm/sec. (1-7/8 ips.) a
Input sensitivity and input impedance:
Wow & flutter:
0.07% WRMS
|
Microphones;
0.2mV (6.8k ohms)
+0.2% (DIN 45 500) - , _ Line Input; 310mV (50k ohms)
— eo Be ~ DIN Input; 0.7mV (6.8k ohms)
Output level and loaded impedance: 3
Headphones; 0.2mW (0" dB), 8 ohms
Line Output; 550mV ("'0" dB), 50k ohms
DIN Output; ~ ~ 55OmvV (0% dB), 50k ohms |
| 'Specifications for this model are subject to change without
prior notice.
10. Stop button
11. Rewind button
12. Fast-forward button
13. Pause button —
14. Dolby NR switch |
15. Dolby NR B/C selector ewiteh:
16. Tape selector switches
17. Headphones jack
18. Microphone jacks
19. Record level controls
20. Line output sockets
21. Line input sockets
22. Input selector switch [LINE/MIC (DIN)}
23. DIN record/playback 8
~ {input/output) socket
24. AC power supply cord . | |
25. AC Voltage selector Figure 2-2 REAR PANEL
OONONARWNH =
VOLTAGE SELECTOR ADJUSTMENT
The voltage selector is located on the rear of the unit. If adjust-
ment is necessary, use a screwdriver in order to turn the
~... selector in either direction until the correct voltage figure is
Gg displayed in 1 the window 1 next to ue eolusiment screw. :
