 If the sink drain is higher than 1000 mm, the excess water cannot be drained
directly so it becomes necessary to drain excess water into a suitable container.
 Fix the hose properly to avoid any leaks.
 If you have to use a drain hose extension, it should be structurally identical with
the drain hose and should not be longer than 4 m; otherwise the cleaning capacity
of the appliance will be reduced.

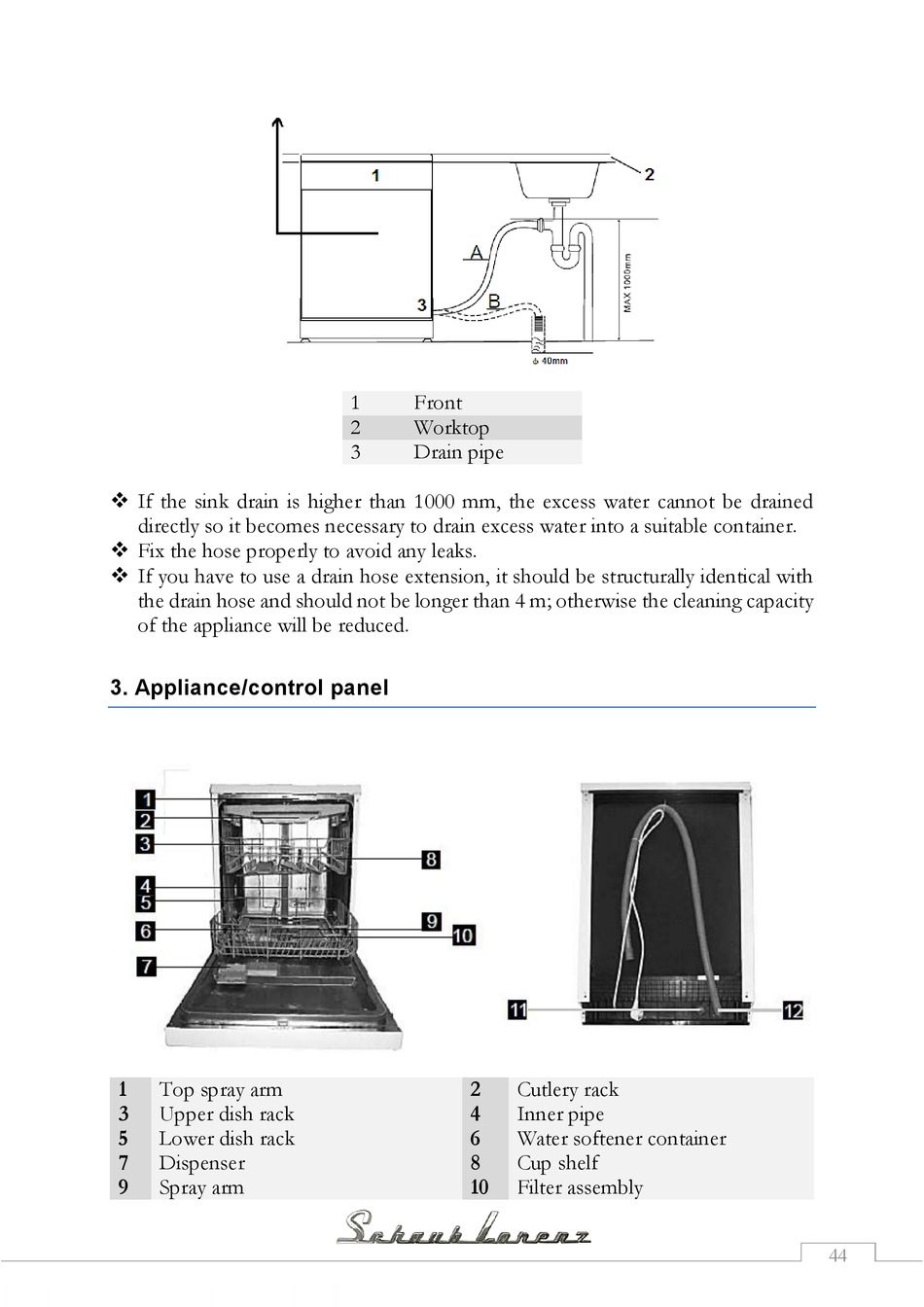

3. Appliance/control panel

1 Top spray arm
3 Upper dish rack
5 Lower dish rack
7 Dispenser
9 Spray arm
1 Front
2 Worktop
3 Drain pipe
2 Cutlery rack
4 Inner pipe
6 Water softener container
8 Cup shelf
10 Filter assembly
