Danger due to incorrect operation.
This can cause serious injury and damage.
▶
8
9
10
11
12
13
14

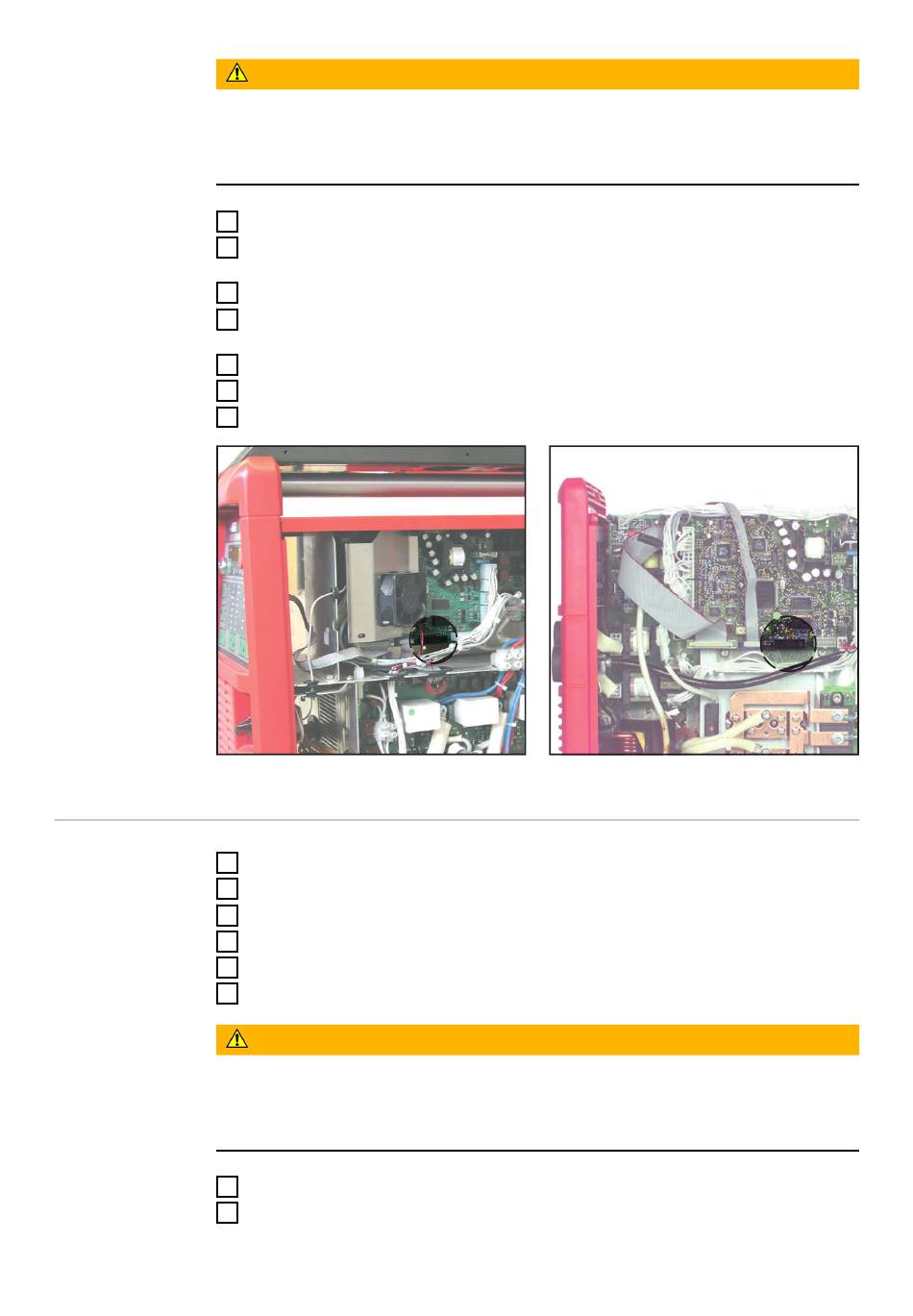

Connection of BSL-Tool with pc board UST;
TPS2700 - TPS5000
Updating SR XX
1
firmware (Motor
2
regulator)
3
4
5
6
Danger due to incorrect operation.
This can cause serious injury and damage.
▶
7
8
18
WARNING!
After switching on, check that the relevant system component is not activa-
ted.
Shift the mains switch of the power source into the - I - position
Select the new firmware version with the same welding program database
number
Double-click the „OFFICIAL UST Vx.xx.xx.FFW" file to launch the update
After completing the update, shift the mains switch of the power source into
the - O - position
Unplug the power source from the mains
Remount the right-hand panel of the power source
Turn on the power source again
- The power source is ready for welding.
Shift the mains switch of the power source into the - O - position
Unplug the power source from the mains
Remove right-hand panel from power source or wire feeder
Connect flat cable from BSL-Tool to programming terminal on the pc board
Connect the RS 232 interface cable to the selected PC interface
Plug in the mains switch
WARNING!
After switching on, check that the relevant system component is not activa-
ted.
Shift the mains switch of the power source into the - I - position
Double-click the update file to launch the update procedure
Connection of BSL-Tool with pc board UST;
MW1700, TT2200, MW2200
