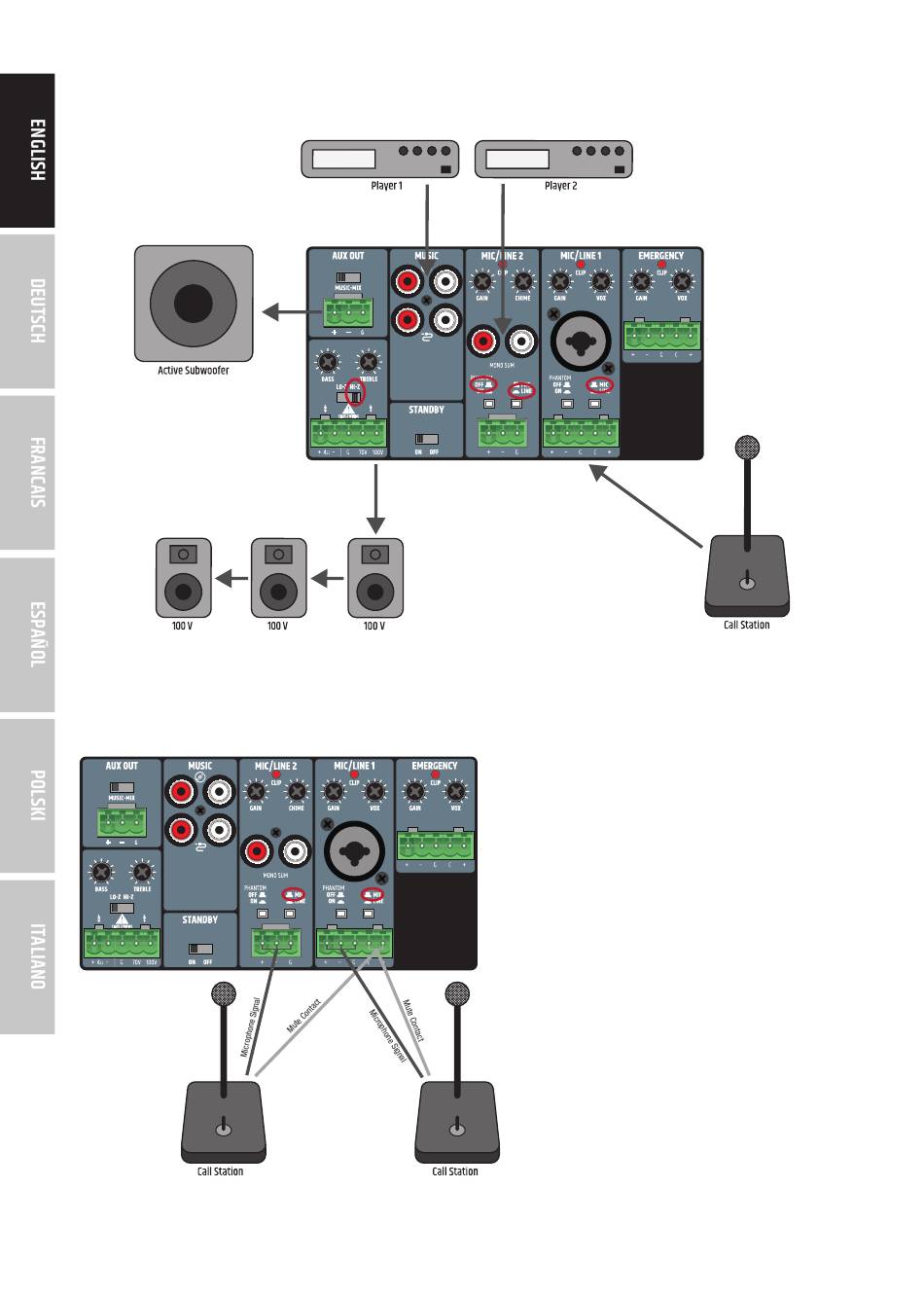

CONNECTION EXAMPLES
The connection for a mute switch/button in MIC/LINE channel 1 can be used for two devices at the same
time (muting a music signal or activating the gong/signal tone). In this case, the mute contacts of both
units must be connected to the poles C and + of the terminal block connection for MIC/LINE 1.
16
2
When wiring terminal blocks, please
observe the correct assignment of the
poles/terminals (see illustration under
the connection examples for terminal
blocks). The manufacturer accepts no
liability for damage caused by faulty
wiring! For more information on the
correct wiring of terminal block
connections ("Terminal Blocks"), see
the TERMINAL BLOCK CONNECTIONS section
of this manual.
