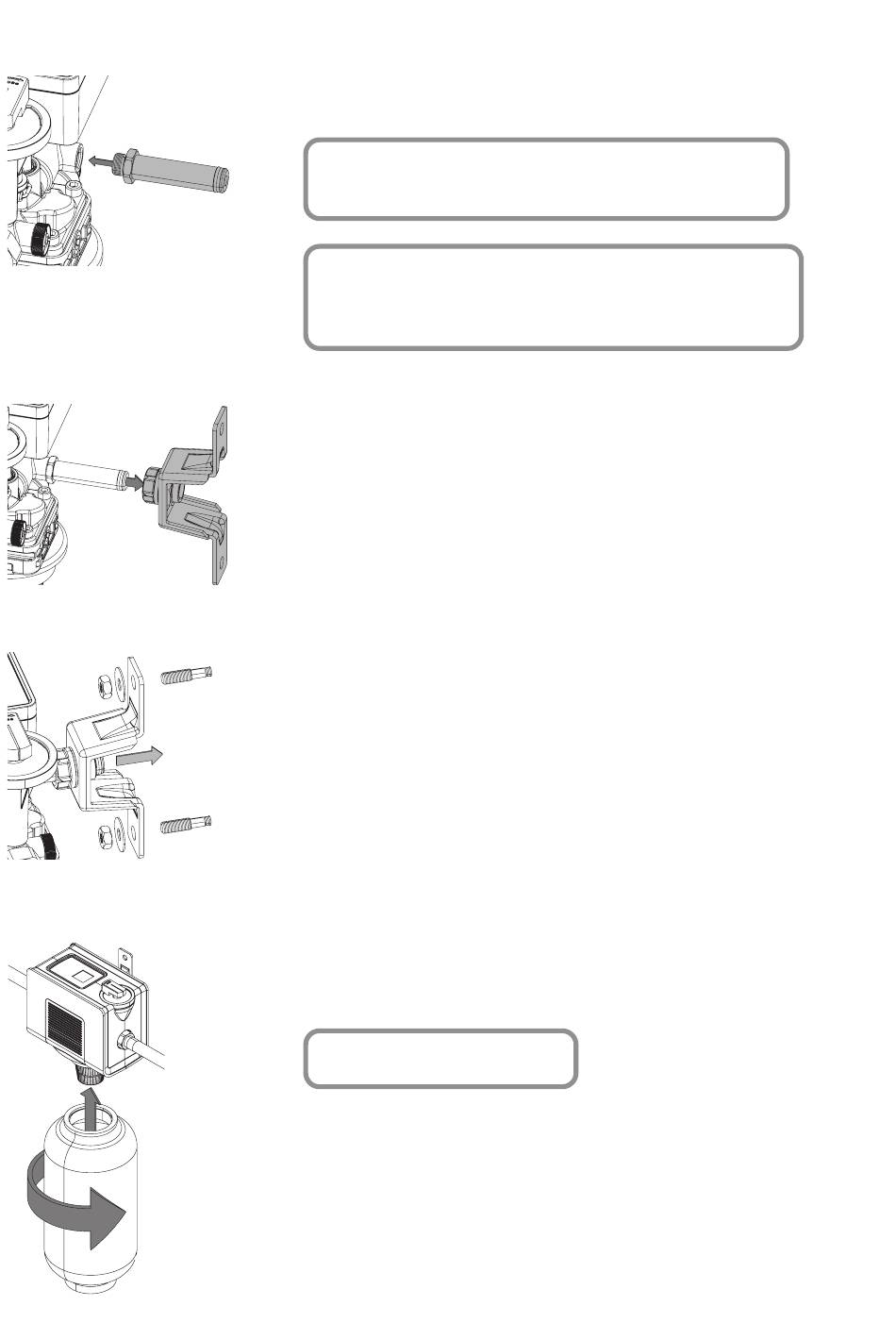

Screw the adjustment tube to the housing of the filling station
CLEAR PRO FILL All-in-one (fig. 2)
The wall bracket and the withdrawal nozzle are not
mounted in the in the calibration state.
The wall bracket and the withdrawal nozzle can be
mounted - depending on the direction of flow - on
both sides!
Then push the adjustment tube through the opening of the wall
bracket (fig. 3).
Slide the completely assembled filling station CLEAR PRO FILL All-
in-One over the hanger bolts. Screw the filling station incl. the wall
holder to the hanger bolts with the nuts (M8) and the two washers
(fig. 4). Adjust the wall distance with the help of the adjustment
tube and finally tighten the union nut (G½").
Remove the green cap from the cartridge and then screw the cart-
ridge under the filling station CLEAR PRO FILL All-in-One (fig. 5).
Please keep the green cap!
Use the hardness measuring set to determine the hardness of the
raw water. Take raw water from any tap upstream of the heating
system and measure the hardness of the water.
