Installation in your shower bath:

- For the sake of your comfort and for your high quality bathing, we recommend to install the panel into a shower bath
recess of 90x90 cm or bigger, or into rectangular recesses of larger dimensions.
- The recommended installation with regard to the height is in a way that the head shower is at least 195 cm above the tub
bottom (or above the floor, this depending on whether the shower bath is provided or not with a tub).
- Minimum room height is 220 cm.

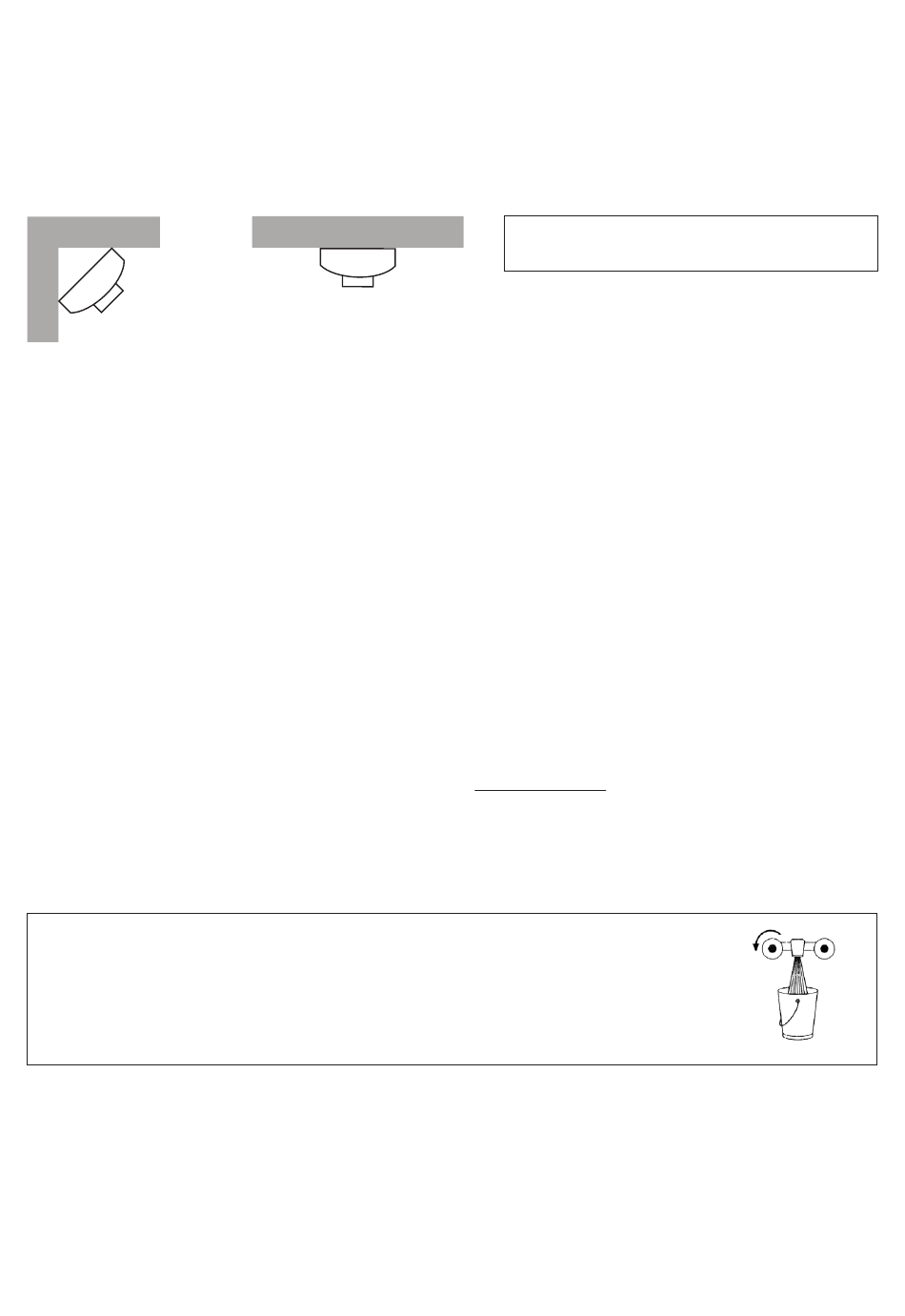

- The panel can be installed crosswise onto the corner of your bath shower recess or onto one of the side walls.
panel installation
CROSSWISE
In case the panel is mounted on a side wall, the water supply pipes should be placed at least 25 cm from the corner, 8 cm
apart from each other and in the height of 85 cm from the tub bottom (or from the floor).
If you opt for the corner installation, the walls must form a 90° angle. In such case, the outlets shall be as close as possible
to the corner so that the panel hides them. It is suitable to lead one of them on the right and the second one on the left
approx. 4 cm from the corner, in heights differing by approx. 5 cm because of the installation. The optimum termination of
the outlets is an elbow piece (knee) with external thread G 1/2"

Water supply

Required water temperature
Minimum hot water temperature at the inlet: 50 °C
Required water pressure
Maximum operating pressure:
Minimum operating pressure:
Recommended operating pressure:
The panel is appropriate for all habitual sources of hot water except for certain flow heaters. The optimum operating
pressure of both hot and cold water is 3 bar. We do not recommend to install the panel if the pressure is under 2 bar.
In case the pressure is higher than 5 bar, it shall be reduced by a
The pressure in both hot and cold water supply pipes should be stable, the variance should not exceed 1 bar. Closing
cocks should be installed on the supply pipes for both hot and cold water, as well as strainers and check valves.
For correct functioning of the panel, the required volume of water supplied to the system should be approx. 20 liters per
minute at a pressure of 3 bar.
Informative performance measurement for your faucet
A- Remove the aerator from the outlet of your faucet (it could distort the measurement result).
B- Open completely the hot water inlet. You should obtain 10 liters in 30 seconds.
C- Perform the same measurement for cold water. Both results should be approximately equal.
panel installation
FRONT
(Fig. 1,2)
5 bar
2 bar
3 bar
- 7 -
Every product is provided with components
(fixing elements) for BOTH TYPES of installation.
.
pressure governor !
