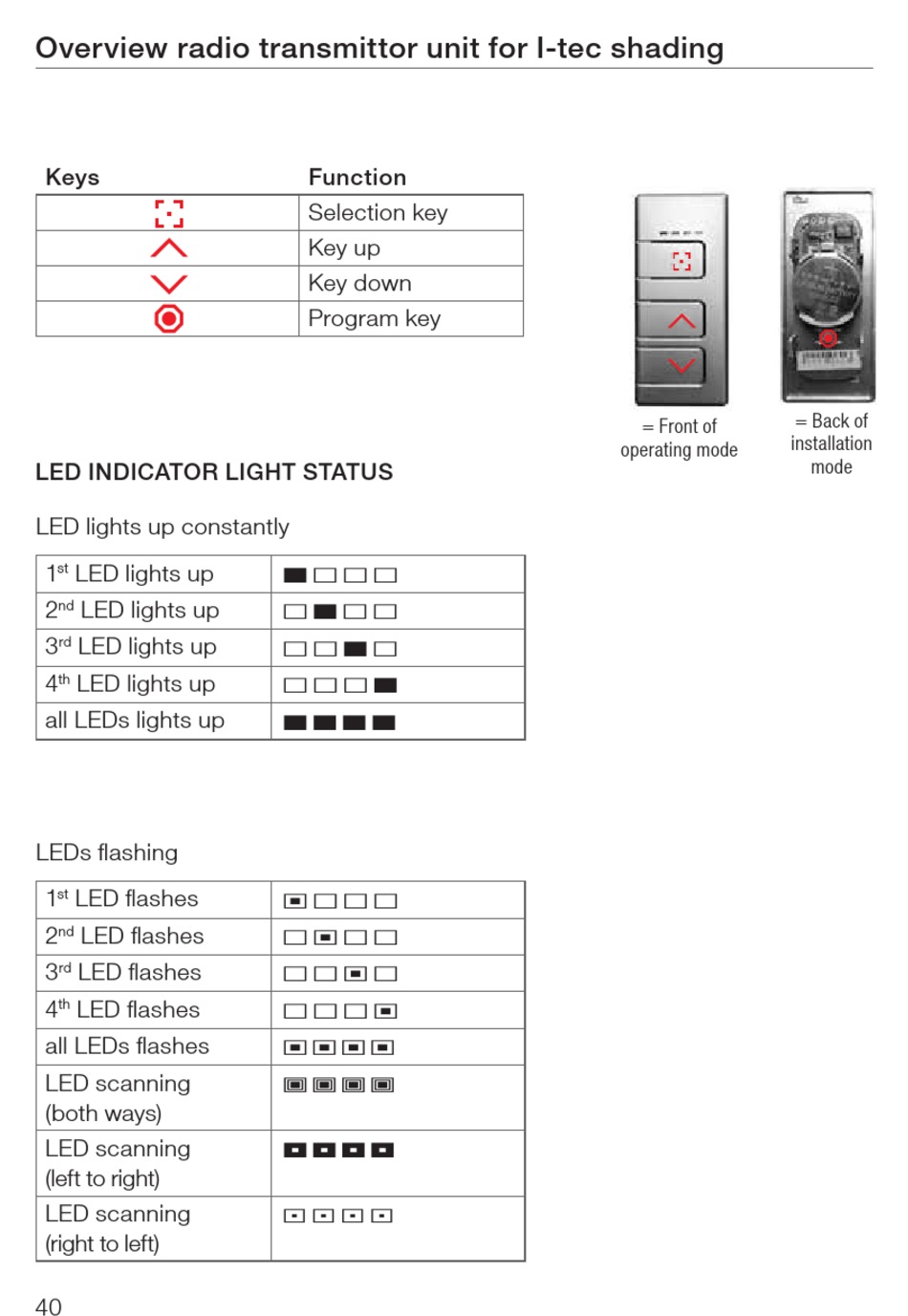

Overview radio transmittor unit for I-tec shading
Keys
LED INDICATOR LIGHT STATUS
LED lights up constantly
1 LED lights up
st
2 LED lights up
nd
3 LED lights up
rd
4 LED lights up
th
all LEDs lights up
LEDs flashing
1 LED flashes
st
2 LED flashes
nd
3 LED flashes
rd
4 LED flashes
th
all LEDs flashes
LED scanning
(both ways)
LED scanning
(left to right)
LED scanning
(right to left)
40
Function
Selection key
Key up
Key down
Program key
¢ £ £ £
£ ¢ £ £
£ £ ¢ £
£ £ £ ¢
¢ ¢ ¢ ¢
© £ £ £
£ © £ £
£ £ © £
£ £ £ ©
© © © ©
ª ª ª ª
¦ ¦ ¦ ¦
§ § § §
= Front of
installation
operating mode
= Back of
mode
