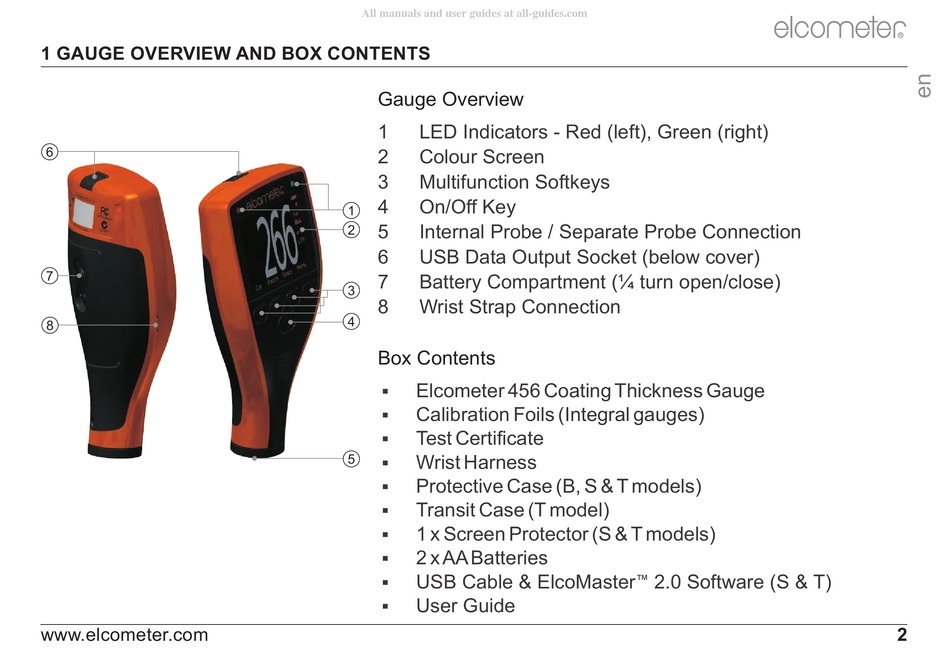

1 GAUGE OVERVIEW AND BOX CONTENTS
6
7
8
www.elcometer.com
All manuals and user guides at all-guides.com
Gauge Overview
1 LED Indicators - Red (left), Green (right)
2 Colour Screen
3 Multifunction Softkeys
4 On/Off Key
1
5 Internal Probe / Separate Probe Connection
2
6 USB Data Output Socket (below cover)
7 Battery Compartment (¼ turn open/close)
3
8 Wrist Strap Connection
4
Box Contents
Elcometer 456 Coating Thickness Gauge
§
Calibration Foils (Integral gauges)
§
Test Certificate
§
5
Wrist Harness
§
Protective Case (B, S & T models)
§
Transit Case (T model)
§
1 x Screen Protector (S & T models)
§
2 x AA Batteries
§
USB Cable & ElcoMaster 2.0 Software (S & T)
§
User Guide
§
™
R
