Installation des Geräts II
Installation of the Equipment II

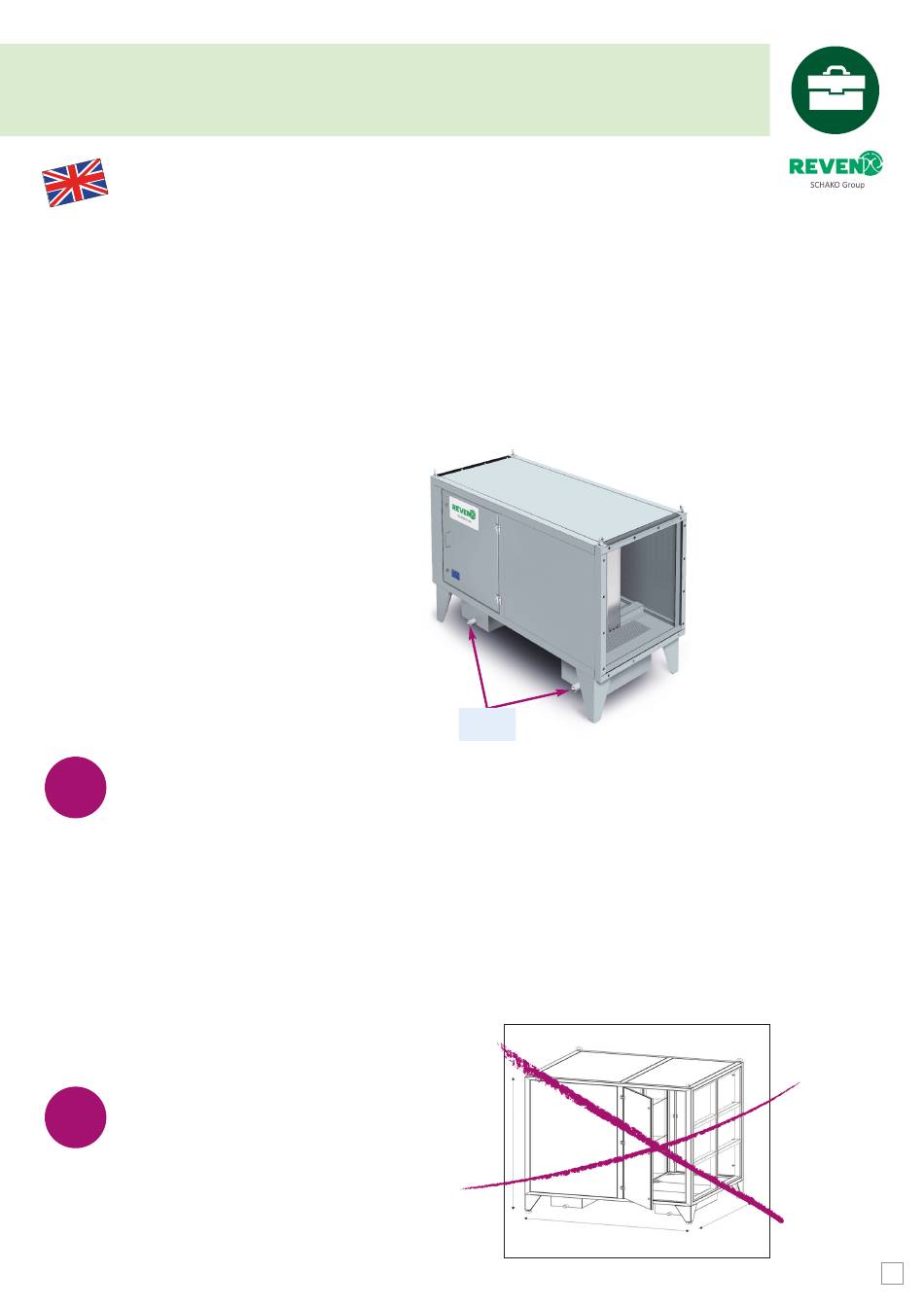

Installation of the separator:
In their standard version, the separator devices RKM are designed and delivered as rectangular
boxes. They are packed at the factory and delivered on a pallet, depending on their size. The devices
can be transported in an upright position on the pallet with the help of an elevator truck or a forklift
or in hanging position using their suspension loops. If you desire special installation options such as
suspended mountings or mounting frames, please specify them separately in your inquiry. Please
note that the device is fitted with one-inch sockets at the bottom for the connection of the siphon,
i.e. make sure that the RKM device is set up in such a manner that the drain line can be connected
to the one-inch socket. Furthermore, make sure that the position of the separator provides for easy
access to the service side.
Mounting Position:
§ The position of the device
must be absolutely vertical.
It must not be installed in a
horizontal or inclined position.
ATTENTION:
!
When installing the device, make sure that the oil recirculation is fitted separately.
§ This means that the drainage openings may not be
connected to each other, i. e. not short-circuited!
Air ducts:
Please refer to our catalogue or the technical data on page 12 for the connecting dimensions of the
separators. Connections that differ from the standard dimensions should be specified separately in
your enquiry. Make sure under all circumstances that the connection of our separators to the on-site
duct system is oil proof, i. e. use oil- and acid-resistant sealant, for example, to seal the connections.
ATTENTION:
!
The device must never be operated
§
when the maintenance door is open.
Drains
