Allgemeine Beschreibung II
General Description II
Complete duct module suitable for the
installation into a horizontal duct line.
The module is incorporated in a completely
stainless steel sheet housing with a lacquer finish
in RAL 7035. It is stable and torsion-free and
has smooth internal surfaces. The maintenance
door is fitted with clip fasteners. The bottom part is
designed as an oil- and waterproof collection pan.
The housing is fitted with patented X-CYCLONE®
separating celle, type RMZ. The RMZ cell consists
of two individual basic modules (610 x 610 x 50 mm)
that are arranged in a V-type layout. The airflow
streams into the open end of the V inside the cell.
A patented, special drainage effect ensures that
the separated liquids run off. The collecting pan
is fitted with a drain connection with a one-inch
socket. It is intended for the connection of an
on-site drain line with a siphon. The duct
junctions are not included in the scope of delivery.
!
§ All basic modules and agglomerators can be
cleaned and reused – no throwaway filters!
The § flame arresting capacity
type RXZ has been tested successfully by the German TÜV in compliance
with the directive UL 1046 of the American Underwriters Laboratories®.
Material:
- Housing: stainless steel 1.4016 with a lacquer finish in RAL 7035
Basic module: Cells, housing and frames made of
stainless steel 1.4016, profiles made of aluminium
Special edition:
- Frame of stainless steel 1.4301 / profiles of aluminium
- Frame of stainless steel 1.4301 / profile of stainless steel 1.4301
of the basic module

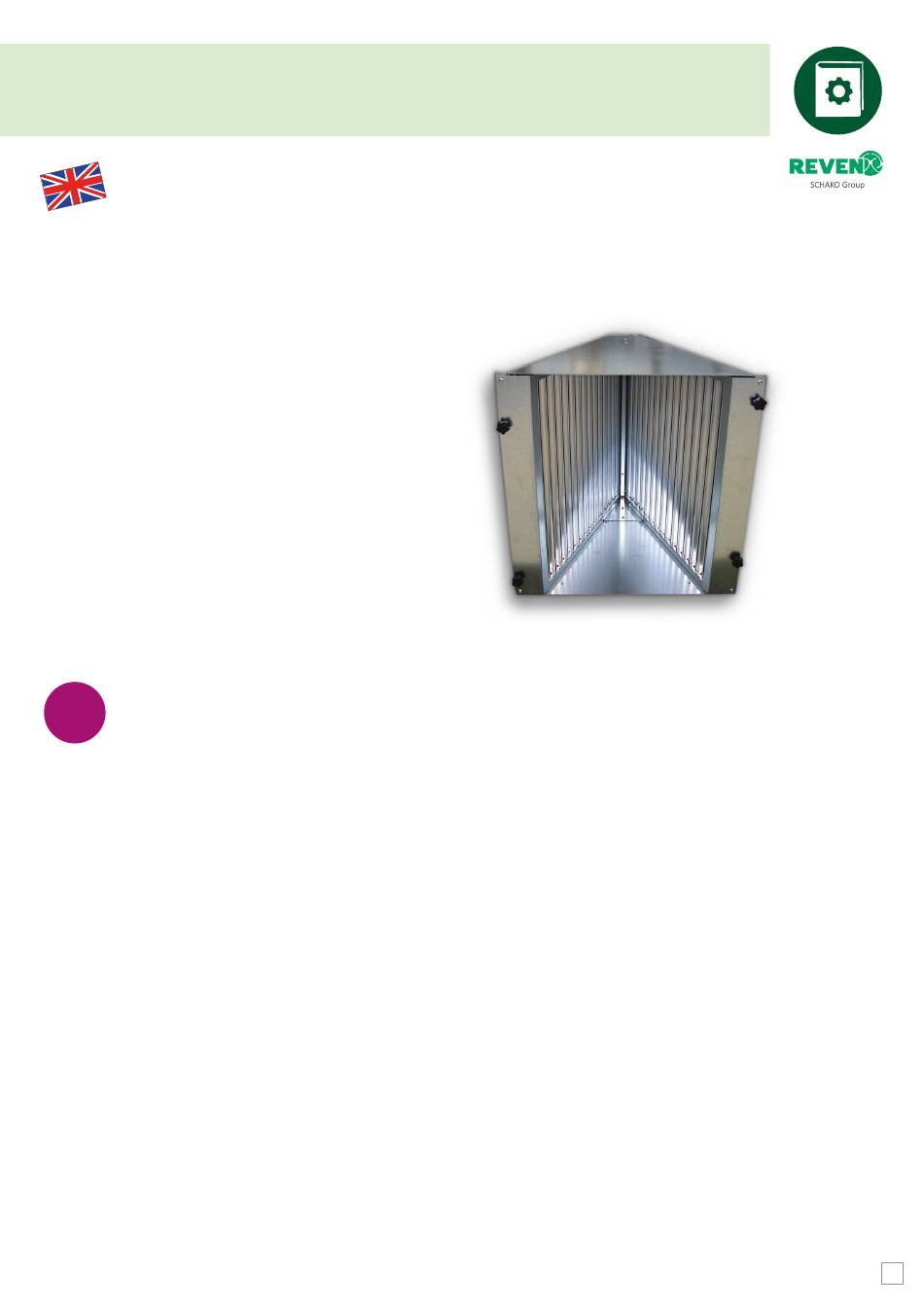

Fig.: X-CYCLONE®
separting cellen, type RMZ
4
