Installationandcommissioning
Correct
Direction of fluid flow
Correct

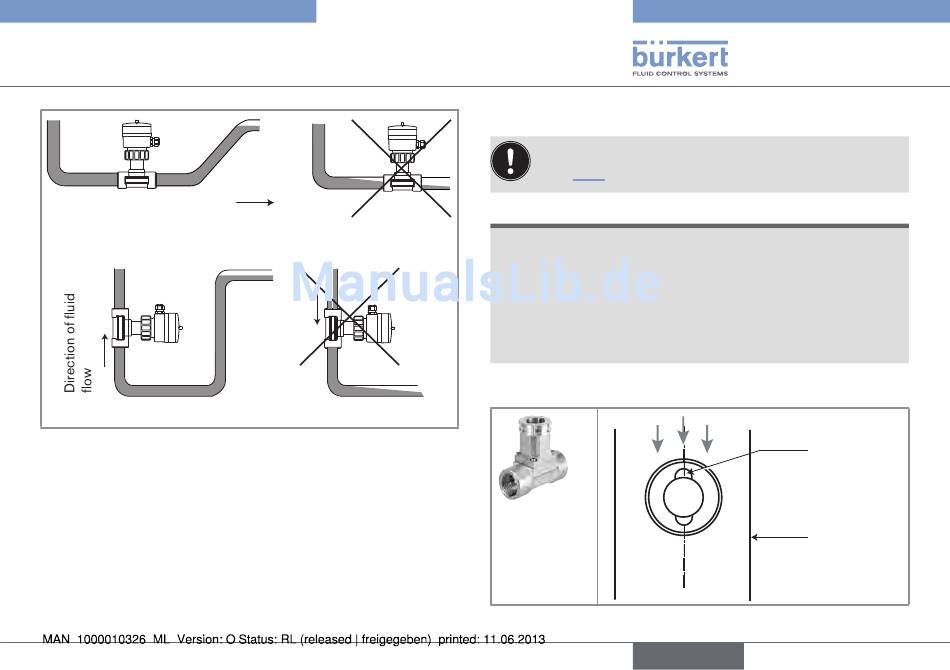

Fig. 9: Additional recommendations on installation
Type S020
Incorrect
Incorrect
7.2.2.

installing a T-fitting

Follow the recommendations on installation described in
chap. 7.2.1.
note
the seal on the fitting with welding end connections may be
damaged during welding.
• Before welding the welding ends, remove the adapter from the
fitting by unscrewing the 4 tightening screws and remove the seal.
• After welding, correctly replace the seal in the groove and the
adapter on the fitting, tighten the 4 Phillips-head screws, applying
a nominal tightening torque of 2 Nm.
→
Install the fitting by turning one of the polarising slots in the
opposite direction to the fluid.
Fig. 10: Installing a T-fitting
English
Polarising
slot
Pipe
