Bühler technologies TC-Kit Kurzanleitung Seite 16

TC-Kit (+)
4.5.1.2 24 V DC
The voltage supply for the sample gas cooler must be connec-
ted to terminals 8 and 9 on the power board. The earth con-
ductor must be connected to the earth bolt on the housing.
The operating voltage of the pumps which may optionally be
connected is 24 V DC. Please note the polarity when connect-
ing.
4.6 Signal outputs
Plug connection (optional)
The unit is optionally equipped with a EN 175301-803 plug for
the status output.

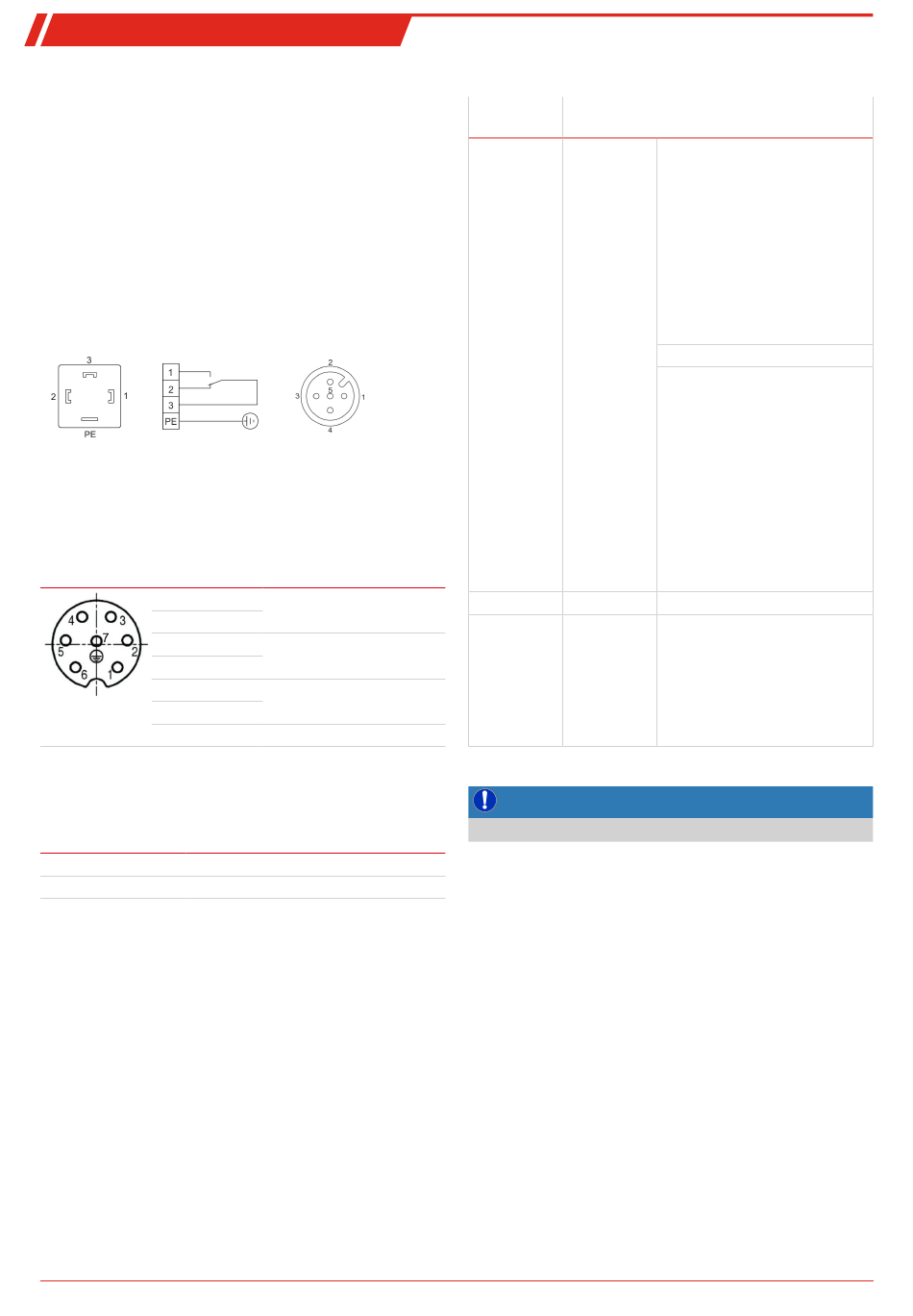

Plug numbering Alarm contact (S2)
The clamping area has a diameter of 8 – 10 mm (0.31 –
0.39 inch).
Connection regulated heated line (optional)
Connection Pin Assign-
ment
1 L 230/115 V
2 N 230/115 V
3 N 230/115 V self-regulating heated line
4 L 230/115 V
5 Pt100
6 Pt100
7
Connection to board see chapter Wiring diagrams.
Connecting other options
Optional Supply voltage
Condensate pump 230 V/115 V
Gas pump 24 V
When using options by other manufacturers, use suitable
fuses.
16 Bühler Technologies GmbH
Analog output (S3)
1 - N/C
2 - N/C
3 - GND
4 - 4-20 mA out
5 - shield
Line type
regulated heated line
regulated heated line
PE
max. power input
0.025/0.044 A
0.8 A
Description of signal outputs
Function / Description
contact type
internal the following
changeover device
contact: max. statuses can
250 V AC/ be indicated
150 V DC, 2 A, via two
50 VA switching
outputs:
4-20 mA ana- Signalling of
logue output actual tem-
(R <500 Ω) perature
Load
(please use
shielded
cables)
5 Operation and control
NOTICE
The device must not be operated beyond its specifications.
After starting the cooler, the software version will be dis-
played, followed by the block temperature. The display S2 will
stay on until the block temperature has reached the preset
value (± adjustable alarm range). The status contact is in the
Alarm position.
Once the target temperature range has been reached, the
temperature will continuously be displayed and the status
contact switches over.
If the display flashes during operation or an error message ap-
pears, please refer to item "Troubleshooting".
Please refer to the data sheet for performance data and max-
imum ratings.
When starting for the first time, optional equipment pur-
chased separately must be registered once. The options heat
exchanger material, analog output and moisture detector
must be configured, tested and registered in the menu.
Contact between T6 and T7 on
the power board closed (alarm)
• No mains voltage and/or ac-
tual temperature outside
the alarm thresholds
Contact between T5 and T6 on
the power board closed (OK)
• Mains voltage attached +
actual temperature within
the alarm thresholds
With moisture detector option
Contact between 6 and 7 closed
(alarm)
• The moisture detector re-
gisters residual humidity in
the sample gas or cable
break: Error message
Contact between 5 and 6 closed
(OK)
• no residual moisture in
measuring gas / no cable
break
With temperature signal option
T = -20 °C ≙ (-4 °F) -> 4 mA/ 2
Cooler
V
T = 5 °C ≙ (41 °F) -> 9 mA/ 4,5
Cooler
V
T = 60 °C ≙ (140 °F) -> 20 mA/
Cooler
10 V
BX440028 ◦ 06/2023
