X1
W1
220k, 1W
L1
L1
200-240 V / 50-60 Hz
N / L2
L2
PE
PE
Power Entry Module
with main power switch
MUST BE CONNECTED
TO A PROTECTIVE
EARTH CONNECTION
External Fuse
Max. 16 Amp.
X2
POWER OUTLET TO
EXTERNAL EQUIPMENT
YE/GN
YE/GN
XPE5
XPE6
XPE7
XPE8
XPE9
MOUNTING
BOTTOM
BOTTOM
ALU.
BOTTOM
PLATE
PLATE
PLATE
CHASSIS
PLATE
(MOTOR PLATE)
R1
2x 4,0 AT
4
2
F1 + F2
PE
XPE1
XPE2
MOUNTING
MOUNTING
PLATE
PLATE
K1
+
1K
-
XPE3
MOUNTING
PLATE
LABOPOL-21/25 ONLY
YE/GN
YE/GN
XPE10
XPE11
XPE12
FRONT
BOTTOM
DISK
PLATE
PLATE
FOUNDATION
A1
FREQUENCY INVERTER
L1
EPM
N / L2
PE
1
A
2
2
1
3
3
RP1 (on front)
S3 (on front)
S1 (on front)
SET SPEED
LOW / HIGH
START
SPEED
Only on:
Only on:
LaboPol-4
LaboPol-2
LaboPol-5
LaboPol-6
LaboPol-25
LaboPol-35
M1
MOTOR
Plug-In Module
U
U
Note:
(Machine setup)
V
V
3-Phase motor
240V / 60Hz
W
W
PE
PE
+temp.
(120C)
Note:
On LaboPol-21/25
U is connected to V and
2B
2
V is connected to U
S4 (on back)
EXTERNAL EQUIPMENT
ACTIVE / NON ACTIVE
1
S4
1A
MOUNTING
PLATE
4
1
2
S2 (on front)
STOP
Rev.B: FTH 31-10-2007
R1 resistor added in Power Switch X 1
Rev.C: FTH 28-08-2009
LaboPol-35 added
Friday, August 28, 2009
M1 motor data:
LaboPol-1: 4-poles, 250W (1/3 H.P.)
LaboPol-2: 4-poles, 250W (1/3 H.P.)
LaboPol-21: 4-poles, 250W (1/3 H.P.)
LaboPol-25: 4-poles, 250W (1/3 H.P.)
LaboPol-4: 8-poles, 80W (1/9 H.P.)
LaboPol-5: 4-poles, 250W (1/3 H.P.)
LaboPol-6: 4-poles, 250W (1/3 H.P.)
LaboPol-35: 4-poles, 370W (1/2 H.P.)
X3
1
3
2
STOP SIGNAL FROM
EXTERNAL
XPE4
EQUIPMENT
E.G.: THERMAL PROTECTION IN SAMPLE MOVER
STRUERS A/S
VALHOEJS ALLÈ 176
DK-2610 ROEDOVRE
DENMARK
PHONE: +45 3670 3500

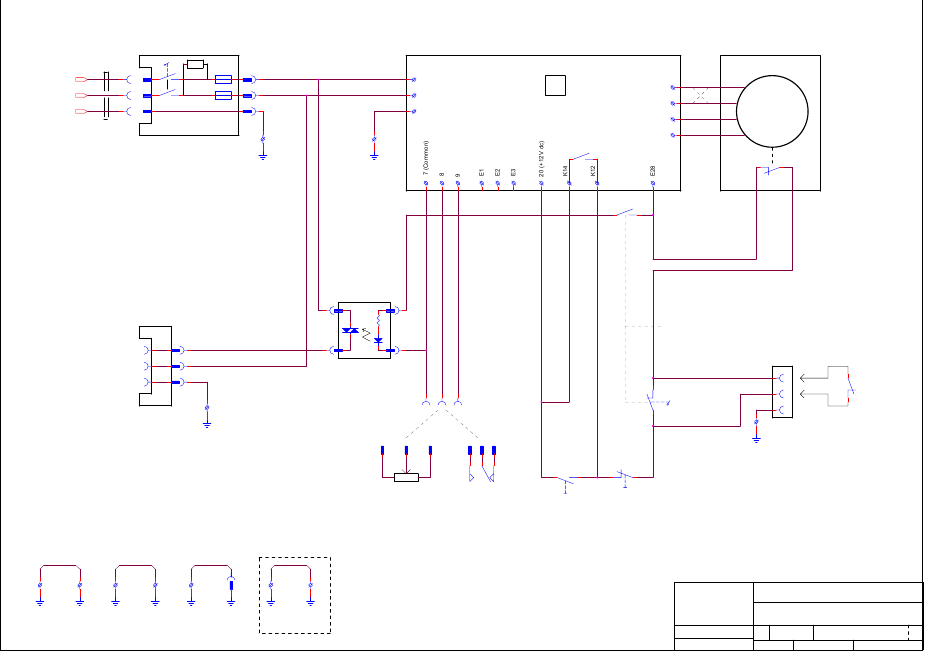

LABOPOL-SERIES, CIRCUIT DIAGRAM
Size
CAGE Code
Rev
DWG NO
15863100
C
A2
<Cage Code>
Scale
Sheet
FTH / FTH
1
of
1
