OCEAN W6
Specifi cations
Operating voltage:
Power consumption:
Active range:
Close-Active range:
Flushing:
Flushing stop:
Stagnation rinse:
Continuous fl ow:
Cleaning stopp:
Flow rate:
Static pressure:
Water temperature:
Flow rate:
Water inlet:
Noise class:
Front plate:
Dimensions (BxHxT):
Frontplate:
In wall box:

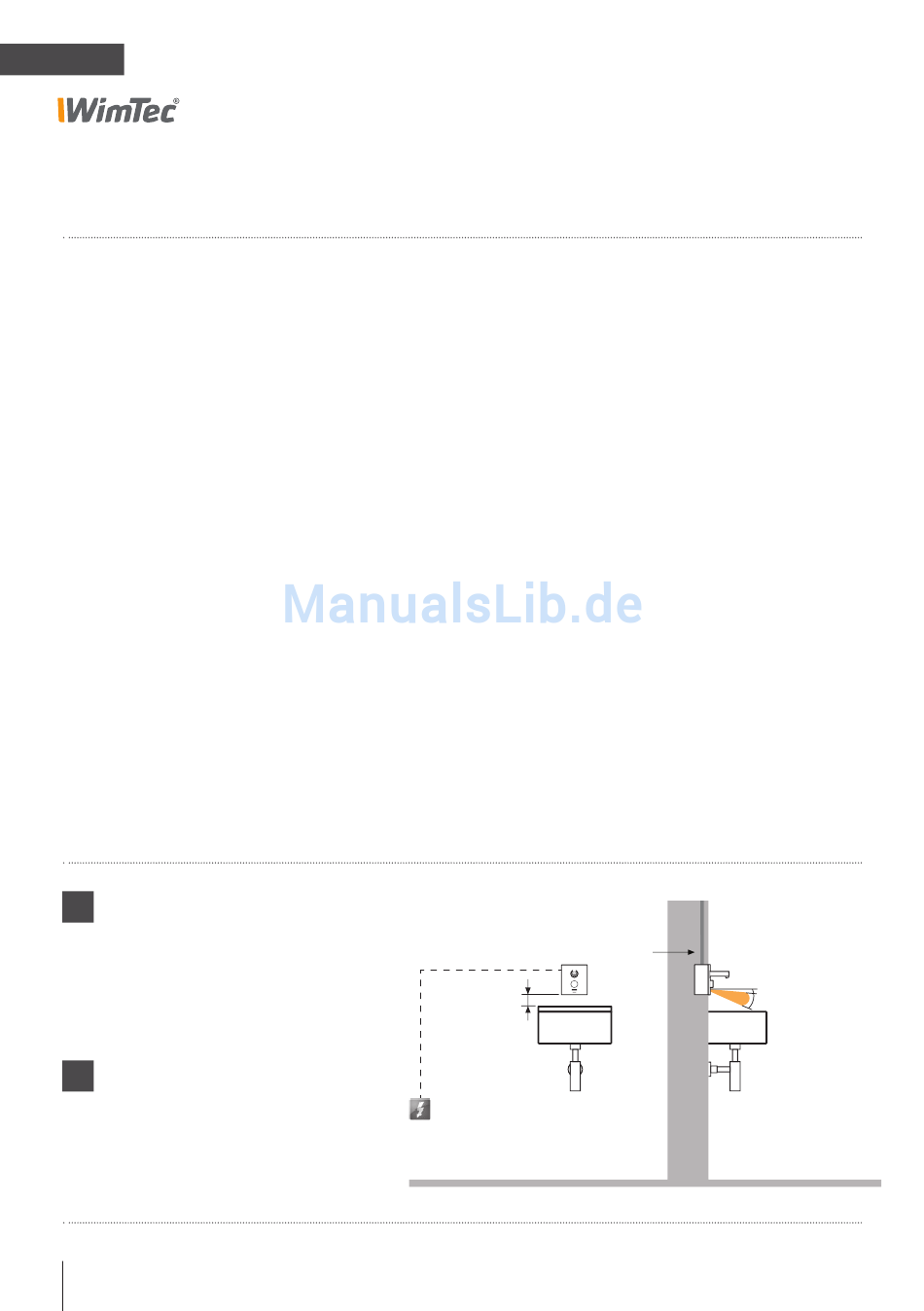

Assembly
!
Power supply 3 m cable
Use art.no. 113 167
From joint box:
2 x 0,5 mm2 max. 100 m total cable length
3 x 0,5 mm 2 for thermal disinfection
!
Do not mount power
supply in the fl ush-mount set or
protected zones.
18 Wall tap control
via power supply 230 V 50 Hz / 12 V=
Art.No. 117 899 - power supply for one control unit
Art.No. 113 792 - power supply for up to 5 control units
max. 3.5 W
from 15 cm - 30 cm (30 cm factory setting)
4 - 5 cm
as long as user is in active range
from 10 s - 10 min (in manual program from 10 s - 60 s)
activatable, after 3 h - 48 h of none-use for 10 s
activatable, for 10 s - 10 min
activatable, for 3 min
0,05 - 0,6 MPa (0,5 - 6 bar)
max. 0,8 MPa (8 bar)
max. 70 °C (max. 80 °C for max. 10 min)
6 l/min (independent of pressure)
R 1/2" IT
I
Safety glass (ESG)
182,5 x 210,5 x 11 mm
169 x 140 x 124 mm
12 V=
WimTec OCEAN W6
WimTec power
suppy cable (3m)
min 12 cm
Active range
15 - 30 cm
DN 15
5°
20°
