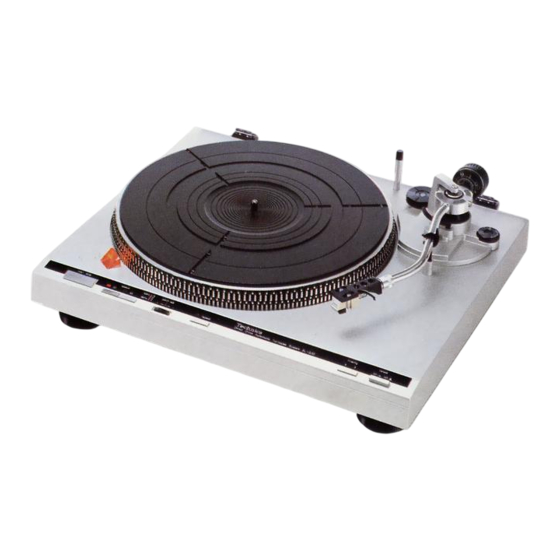

Technics SL-D33 Service Manual

SPECIFICATIONS
General
Power supply :
Power consumption:
Dimensions:
Weight:
Turntable section
Type:
Drive method:
Motor:
Drive control method:
Turntable platter:
Turntable speeds:
Pitch control:
Wow and flutter:
• Thisratingrefersto turntable assembly alone, e xcluding
effects of record, c artridge or tonearm, butincluding p tatter.
d Measure by obtainingsignalfrom frequencygenerator
attached to motor assembly.
Rumb;e:
technics
vice
Specificationssubjectto change without notice.
Weightand dimensions shownareapproximate.
—110-120/220-240V, 50 or eo Hz
12W
43.0 x 13.8 x 37.5 cm
(16-59/64" x 57/16" x 14-49/64")
7.3 kg (10.06 lb.)
•Automatic turntable
Auto start
Auto return
Auto stop
Repeat play
Direct drive
Brushless DC motor
B•FG servo control
Aluminum die-cast
31.2 cm ( 12-9/32 inches)
33-1/3 rpm and 45 rpm
adjustment range
0.014% WRMS*
0.03% WRMS C5521 )
peak
(IEC 98A Weighted)
—53dB (I EC98A Unweighted)
—75dB (IEC 98A Weighted)
ThemodelSL-D33(XA) isavailable in Asia,Latin
America, Middle Eastand Africa only.
Themodel S L•D32 (XG)isavailable i n European o nly.
Themode!SL-D33(XGF)isavailable in France only.
Themodel S L-D33 (E)isavailable i n Scandinavia only.
Tonearm section
Type:
Universal
Effective length:
230 mm (9-1/16")
Overhang
15 mm (19/32")
Friction:
Lessthan 7 mg (lateral, vertical)
Effective mass:
12 g (without cartridge)
Tracking error angle:
Within 2032' at the outer grooveof
30 cm (12") record
Within 0032" at the inner grooveOf
30 cm ( 12") record
Offset angle:
220
Stylus presure
adjustment range:
0—2.5 g
Applicable cartridge
6—9.5
weight range:
13.5 — 17 g (including headshe\l)
(with sheliweight)
3 —6.5 g
10.5 —14 (includingheadsheil)
Headshell weight:
7.5 g
Cartridge section
Model No.
EPC-270C
Type:
Moving magnet
Frequency responsa:
20 Hz to 25 kHz
20 Hz to 15 kHZ±2dB
Output voltage:
3.2 mV at 1 kHz
5cm/s.zeroto peaklateral v elocity
Output voltage:
(9 mV at I kHz IOcm/s. zero to
peak450velocity (DIN 455001)
Channel separation:
25 dB at 1 kHz
Channel balance:
Within
Compliance (dynamic):
10 x 10—6cm/dvne at 100 Hz
Stylus presurg:
1.75±0.25 g (17.5 22.5 mN)
Load impedance:
47 kQ to 100 kQ
Weight:
6.0 g (cartridge only)
Replacement stylus:
EPS.270SO
Matsushita Electric Trading Co., Ltd.
P.O. B ox288,Central O sakaJapan
Turntable System
SL-D33
(XGF), (E)
tonearm
g
2 dB at 1 kHz
